Lighting - Rear Door Puddle Lamp Reflector Replacement

Bulletin No.: 04-08-64-016

Date: August 09, 2004

INFORMATION

Subject:
Rear Door Puddle Lamp Reflector Replacement

Models:
2004 Cadillac Escalade, Escalade ESV, Escalade EXT
2004 Chevrolet Avalanche, Suburban, Tahoe
2004 GMC Denali, Denali XL, Yukon, Yukon XL

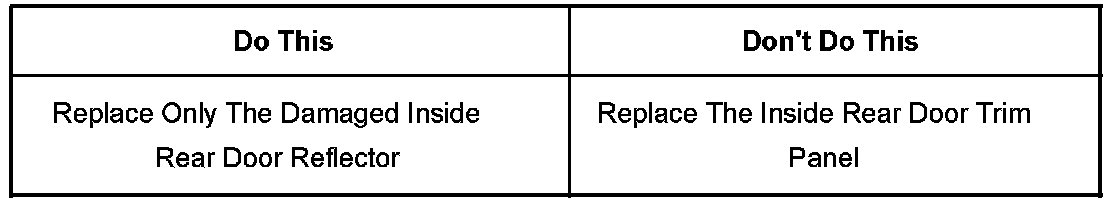

The purpose of this service bulletin is to announce that when replacement of a rear door interior trim panel puddle lamp/reflector is necessary, replace ONLY the reflector. The reflector is available separately and replacement of the complete door trim panel is not necessary. Use the applicable reflector part number listed below.

Using a small screwdriver, pry from the rear outer edge to remove the reflector.

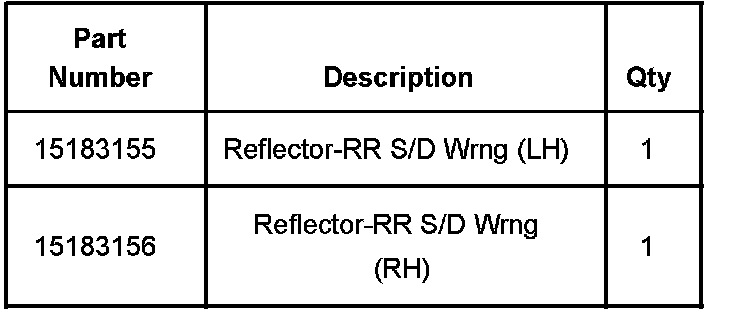

Parts Information

Parts are currently available from GMSPO.

Warranty Information

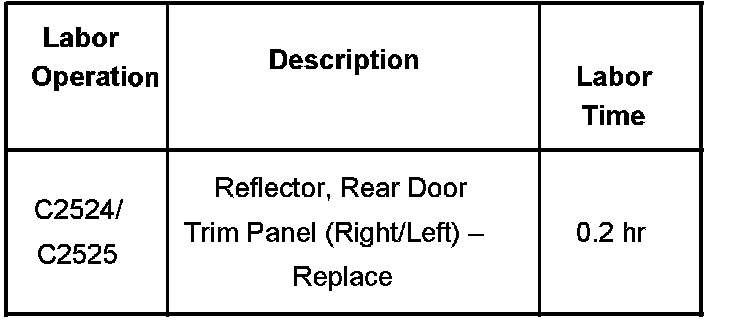

For vehicles repaired under warranty, use the table.
