Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2004
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Suspension Control ( Automatic - Electronic )
>>
Electronic Suspension Control Diagrams
>>

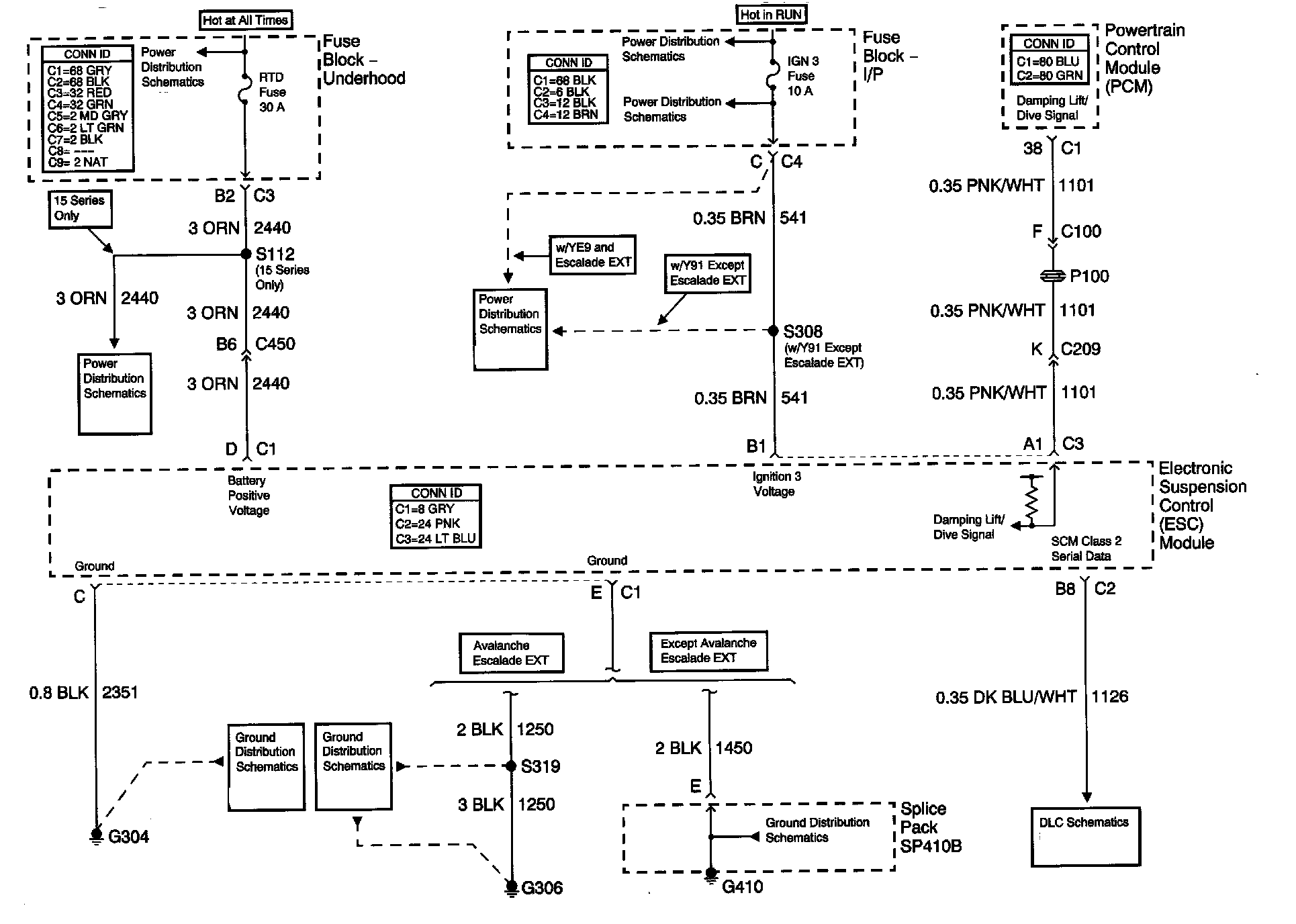

Power, Ground, and Serial Data
Power, Ground, and Serial Data
