Fuel Supply Line: Diagrams

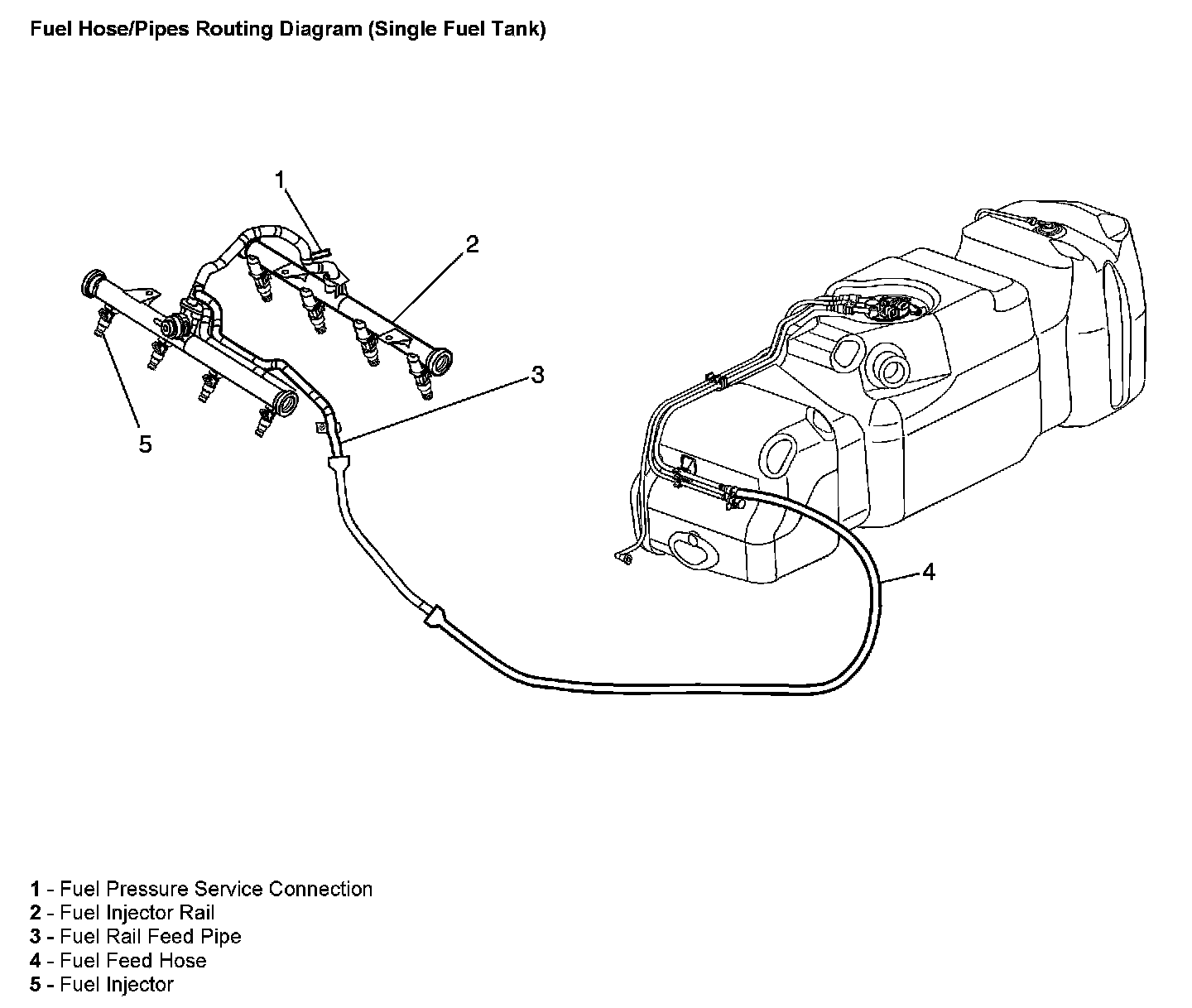

Fuel Hose/Pipes Routing Diagram (Single Fuel Tank):

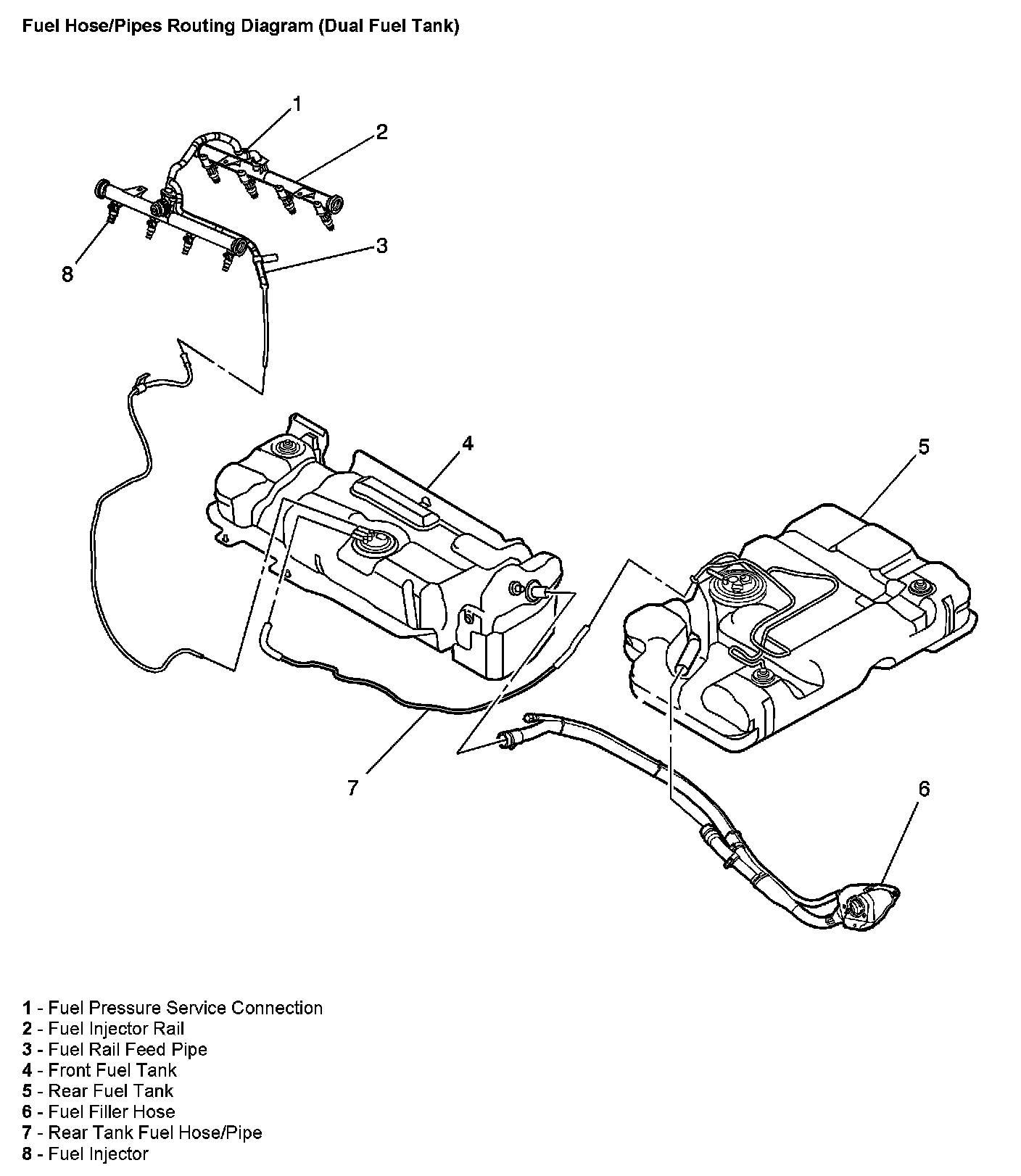

Fuel Hose/Pipes Routing Diagram (Dual Fuel Tank):
