Fuse Block - Right I/P - C1 Wire Entry
Fuse Block - Right I/P - C1 Wire Entry

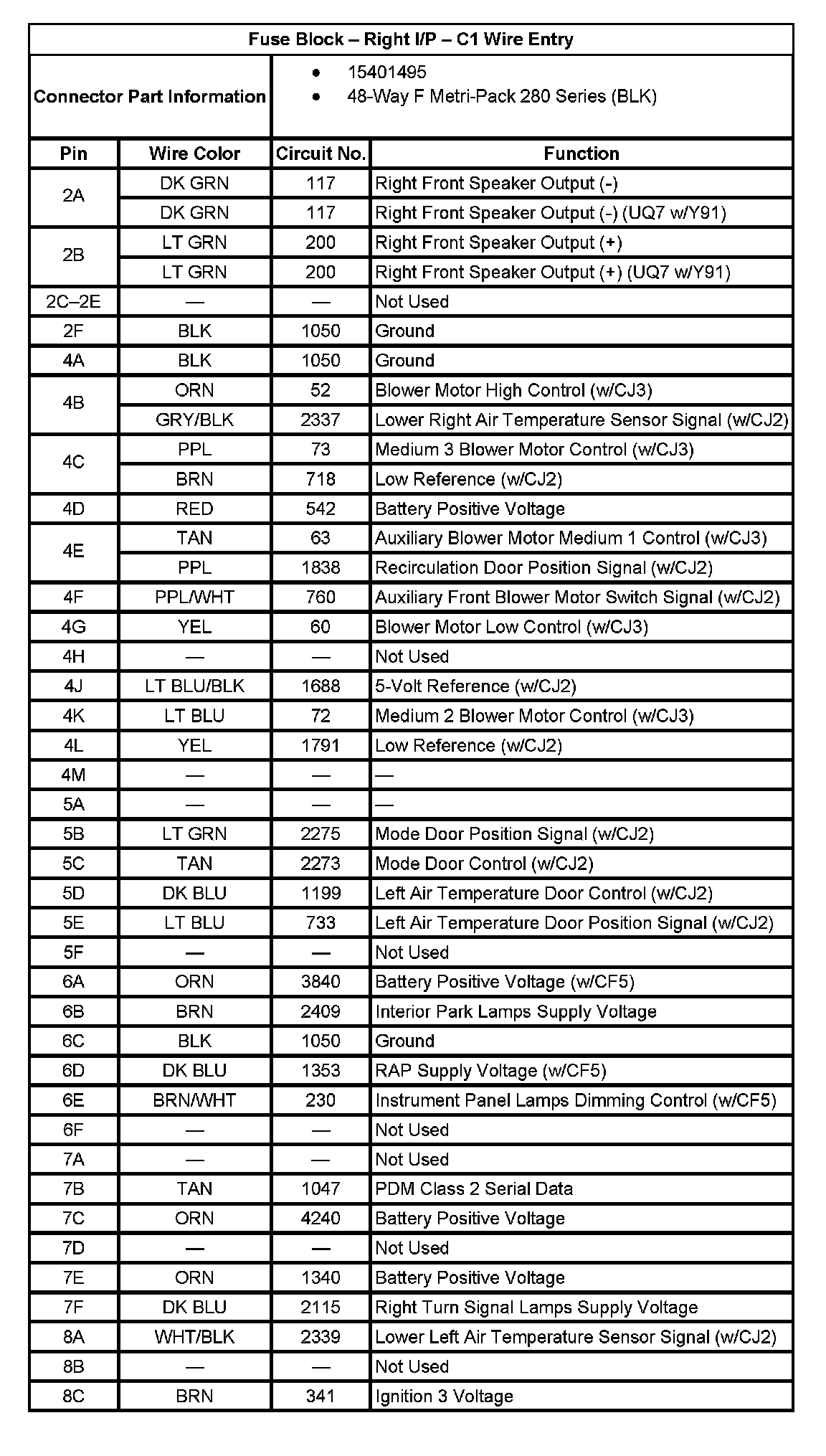

Application Table Part 1:

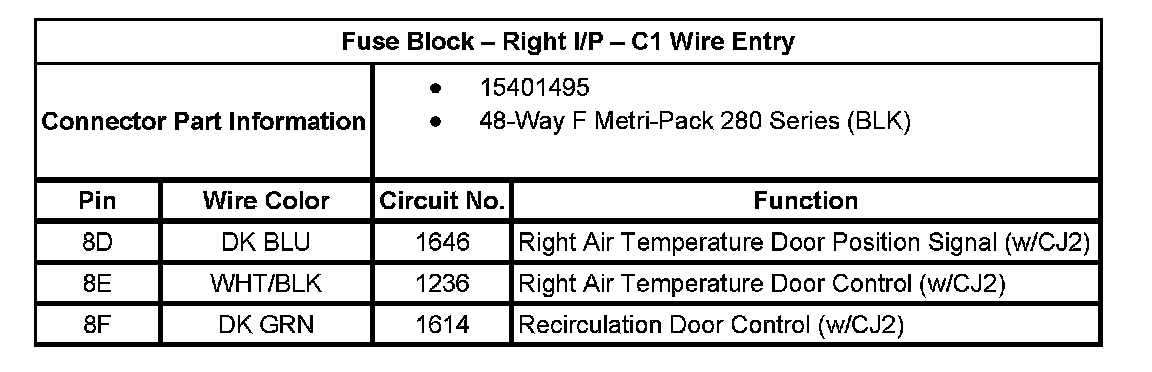

Application Table Part 2:
