Home >> Chevy Truck >> 2004 >> Suburban 1/2 Ton 2WD V8-5.3L VIN T >> Repair and Diagnosis >> Lighting and Horns >> Door Switch >> Diagrams >> Cargo Door Key Switch

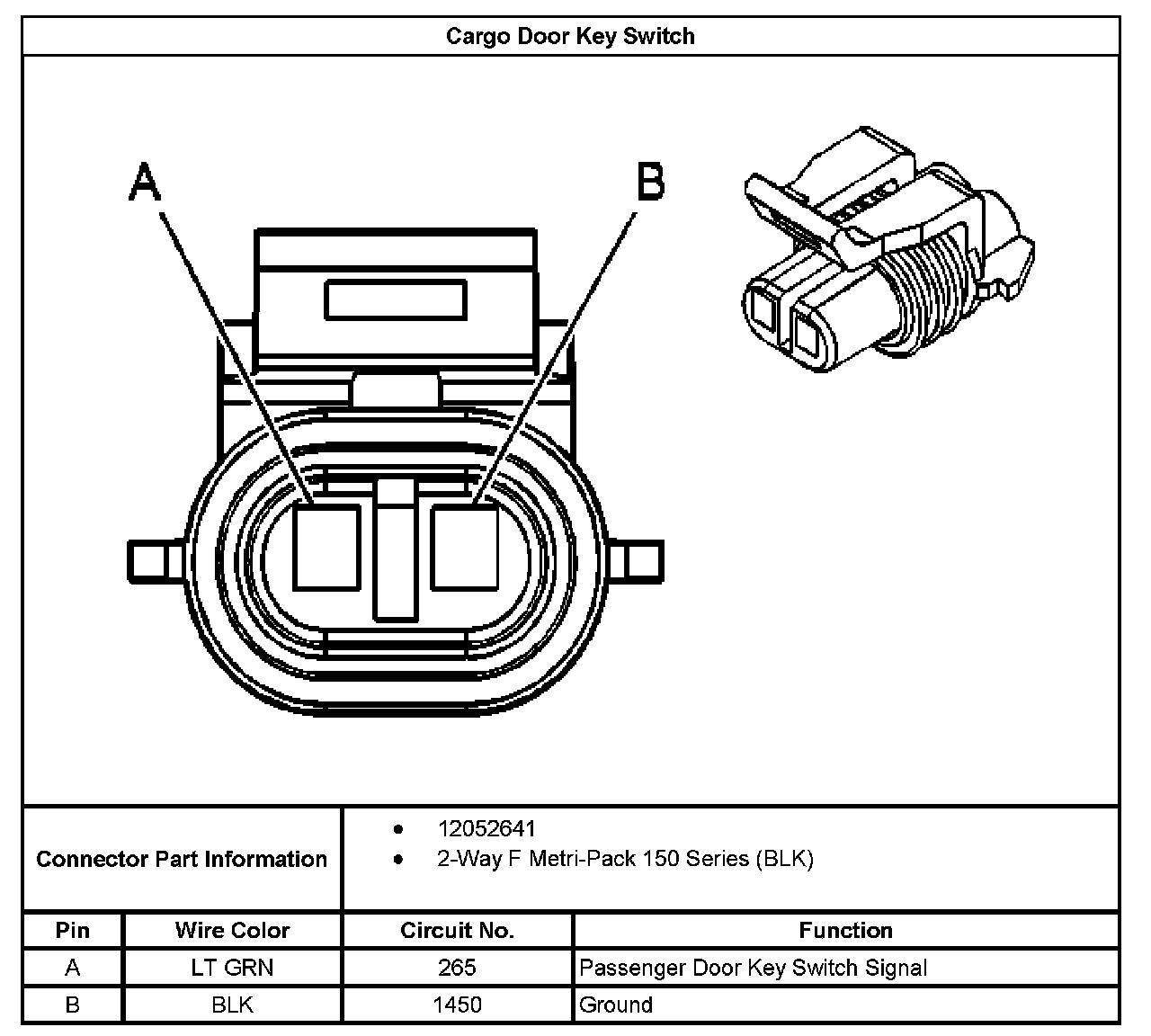

Cargo Door Key Switch

Cargo Door Key Switch:
