Connector Views

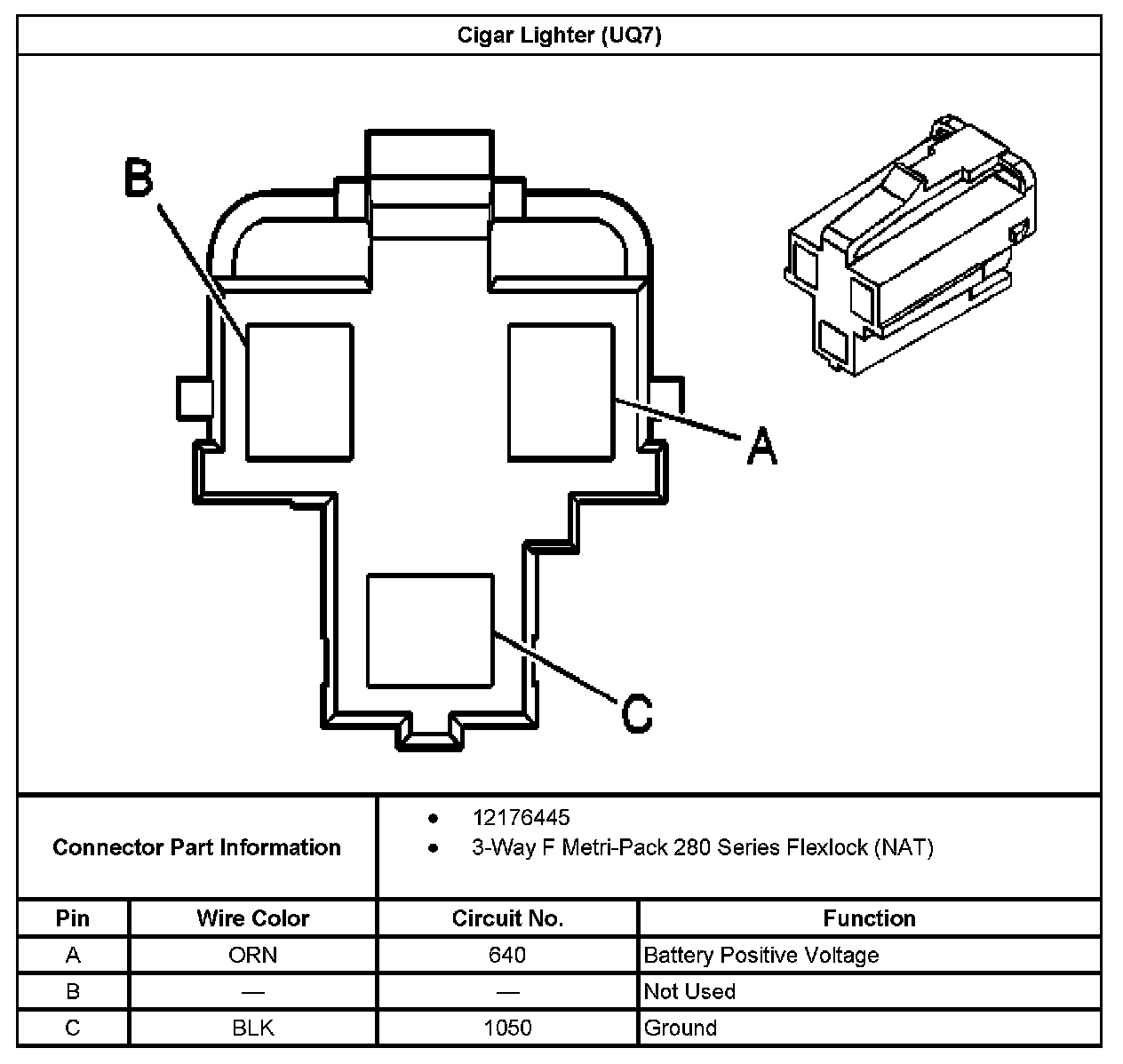

Cigar Lighter (With RPO Code UQ7):

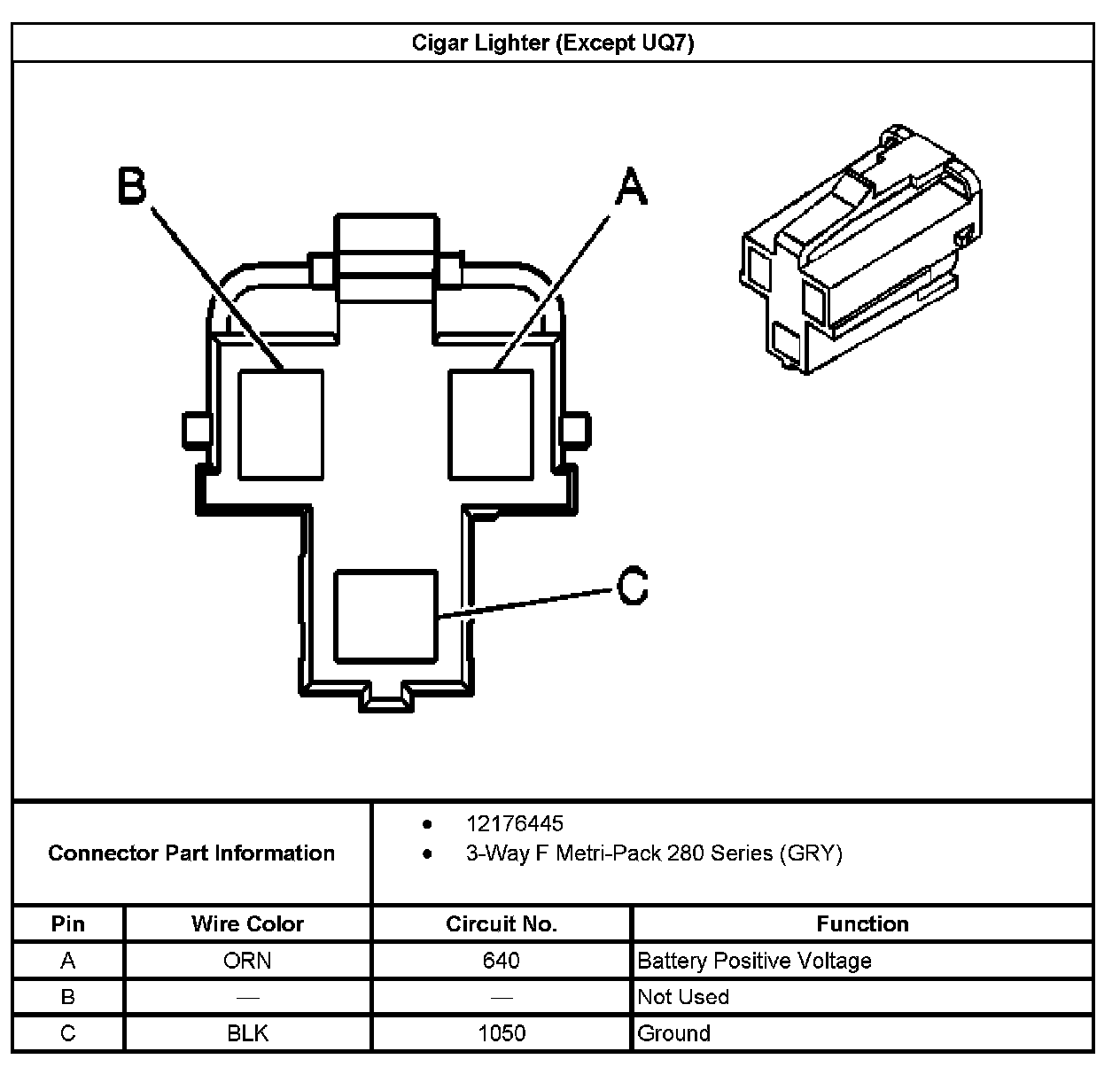

Cigar Lighter (Except RPO Code UQ7):

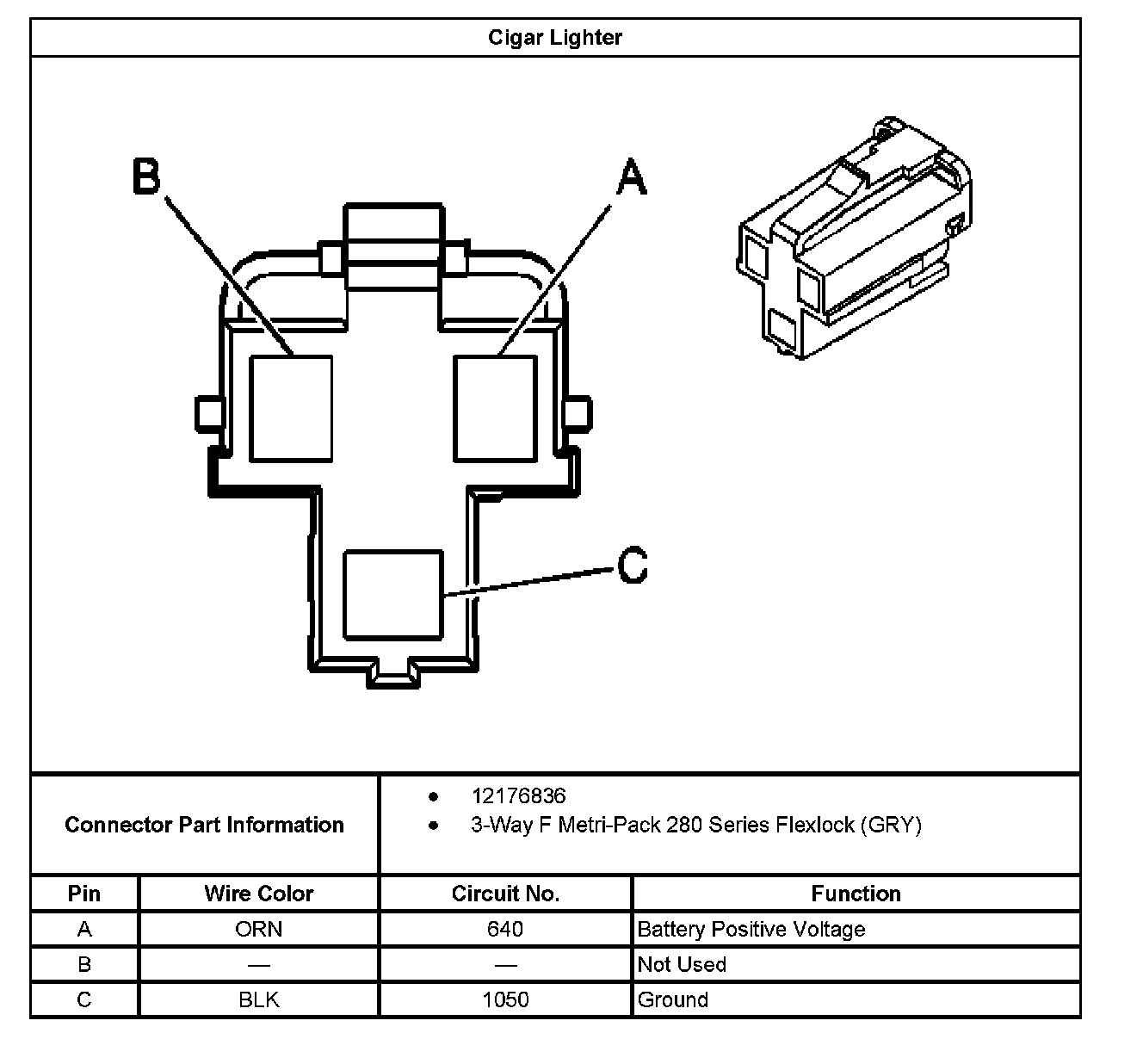

Cigar Lighter:
