Deflector Replacement - Instrument Panel Air - Right

DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - RIGHT

REMOVAL PROCEDURE

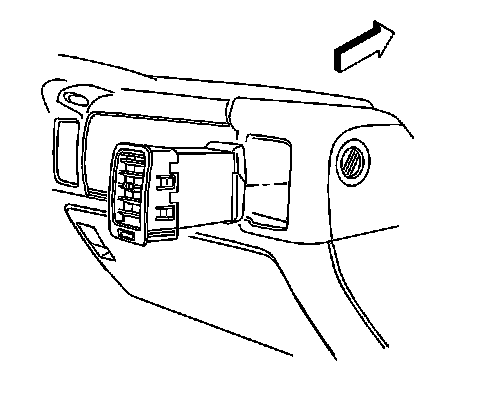

1. Use a flat blade tool in order to remove the deflector from the instrument panel.
2. Remove the deflector.

INSTALLATION PROCEDURE




1. Align the deflector into the opening in the instrument panel.
2. Push the deflector into the instrument panel until the deflector snaps into place.
