Automatic Transmission - 4L60-E/4L65-E

Automatic Transmission Related Connector End Views

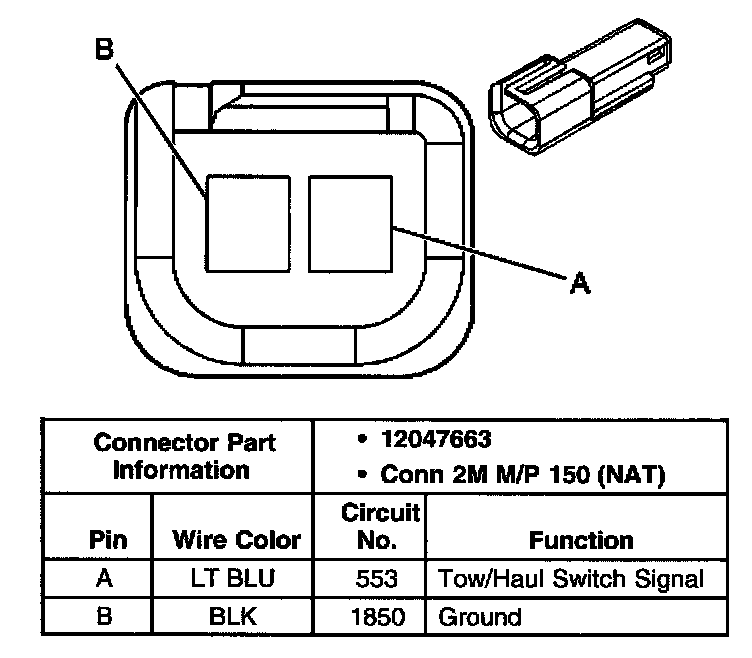

Tow/Haul Switch Connector, Column Wiring Harness Side
