Chevy Truck
>>
2004
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>
LR Door
LR Door

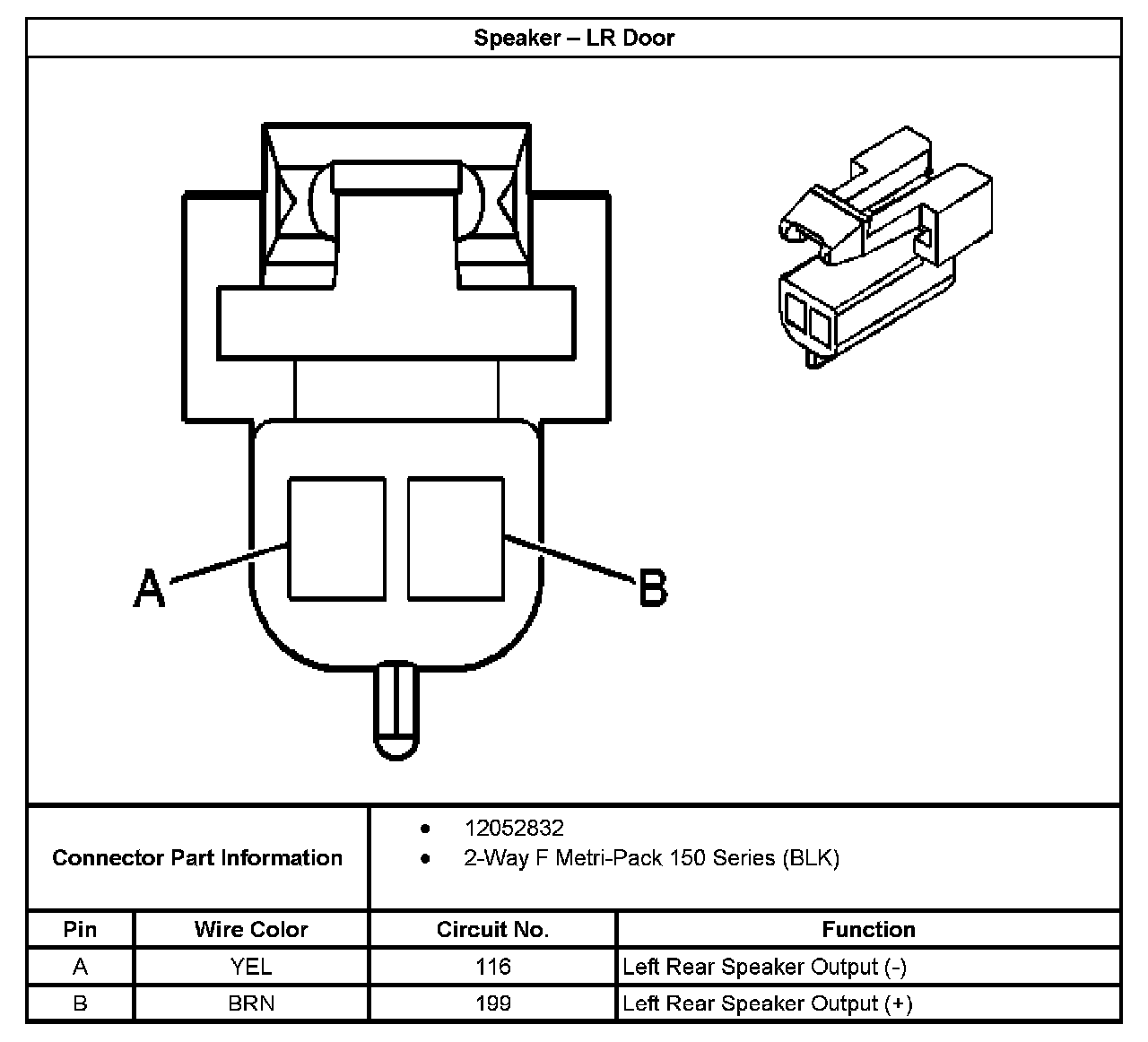

Speaker-LR Door:
