Home
>>
Chevy Truck
>>
2004
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Fuse Block
>>

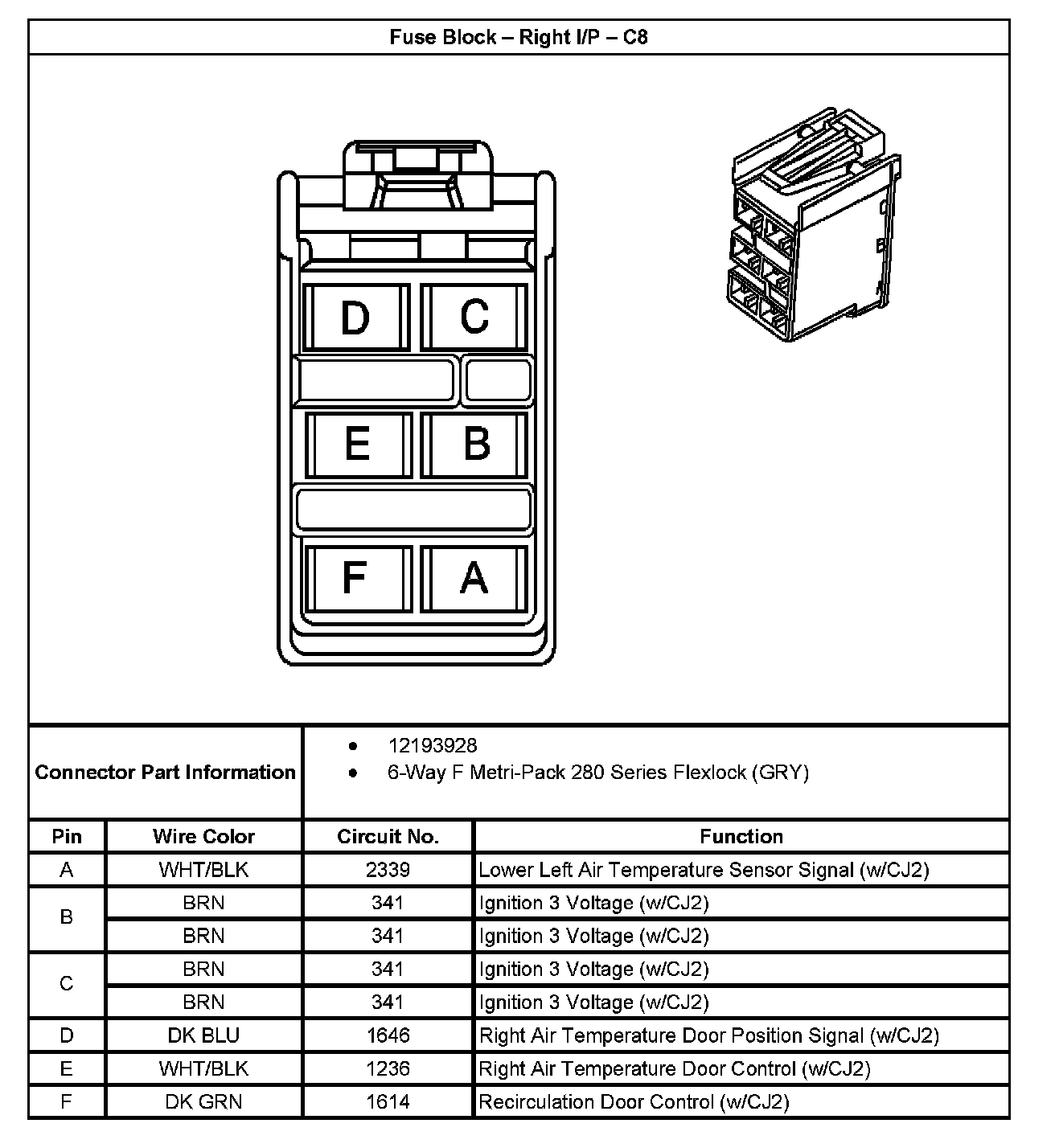

Fuse Block - Right I/P - C8
Fuse Block - Right I/P - C8
Fuse Block - Right I/P - C8:
