Headlamp
>>
Headlamp Alignment Actuator
Headlamp Alignment Actuator
Headlamp Leveling Actuator - Left (Export):

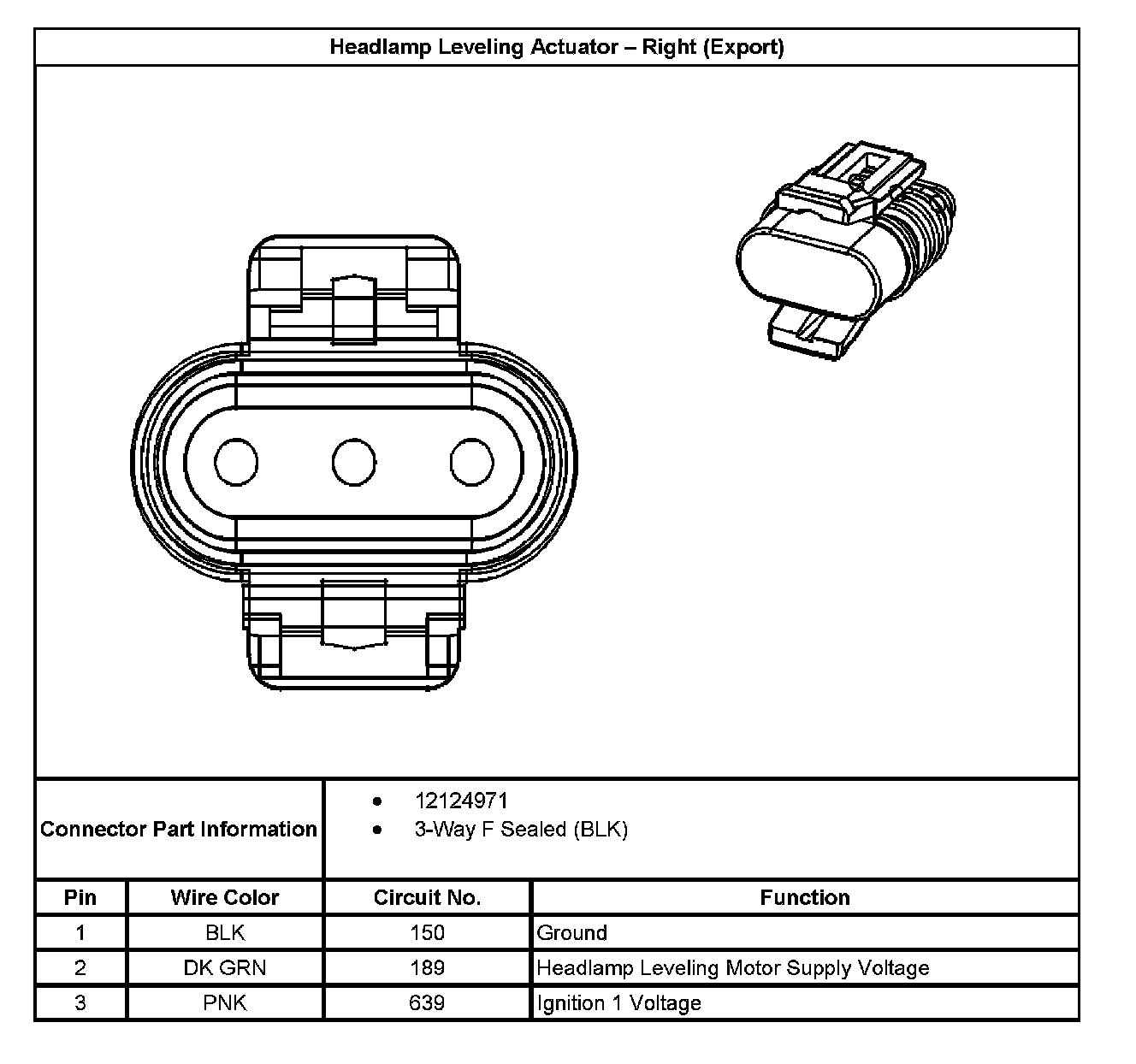

Headlamp Leveling Actuator - Right (Export):
