Home
>>
Chevy Truck
>>
2004
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C312 - C399
>>
C350
C350

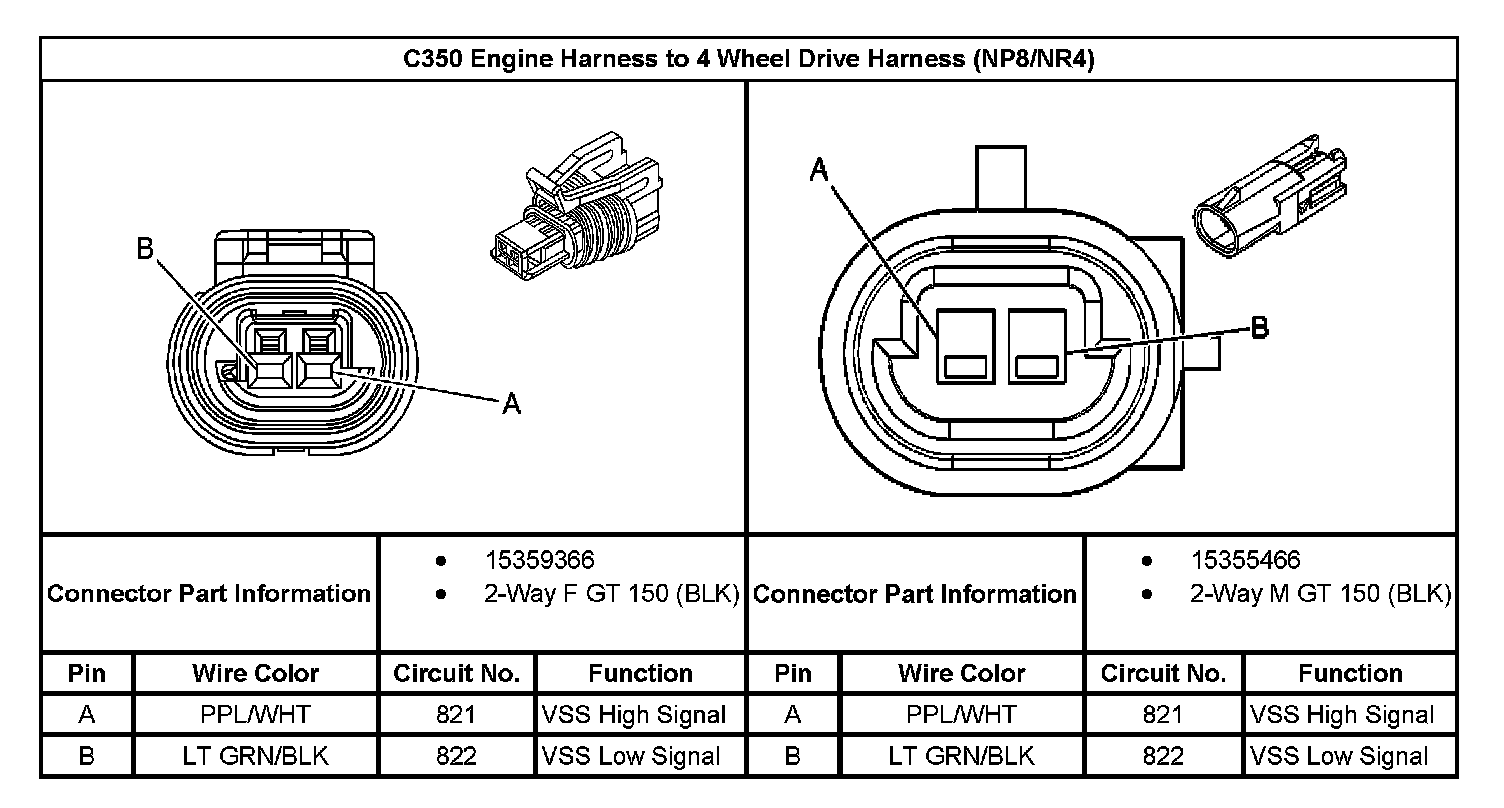

C350 Engine Harness To 4 Wheel Drive Harness (NP8/NR4):
