Home
>>
Chevy Truck
>>
2004
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C312 - C399
>>
C312
C312

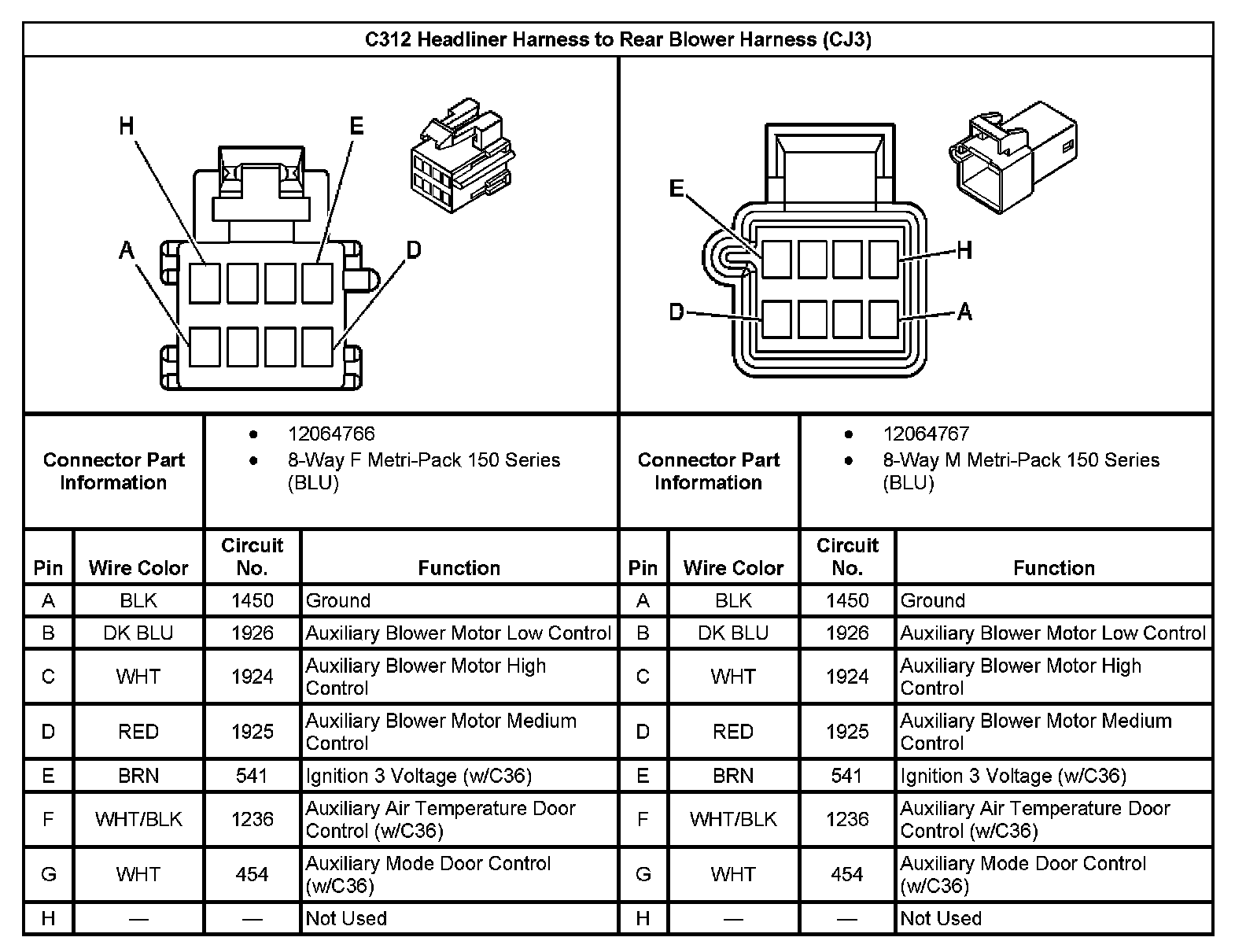

C312 Headliner Harness To Rear Blower Harness (CJ3):
