Blower Motor Resistor
>>
Blower Motor Resistor Assembly - Auxiliary
Blower Motor Resistor Assembly - Auxiliary
Blower Motor Resistor Assembly-Auxiliary-C1:

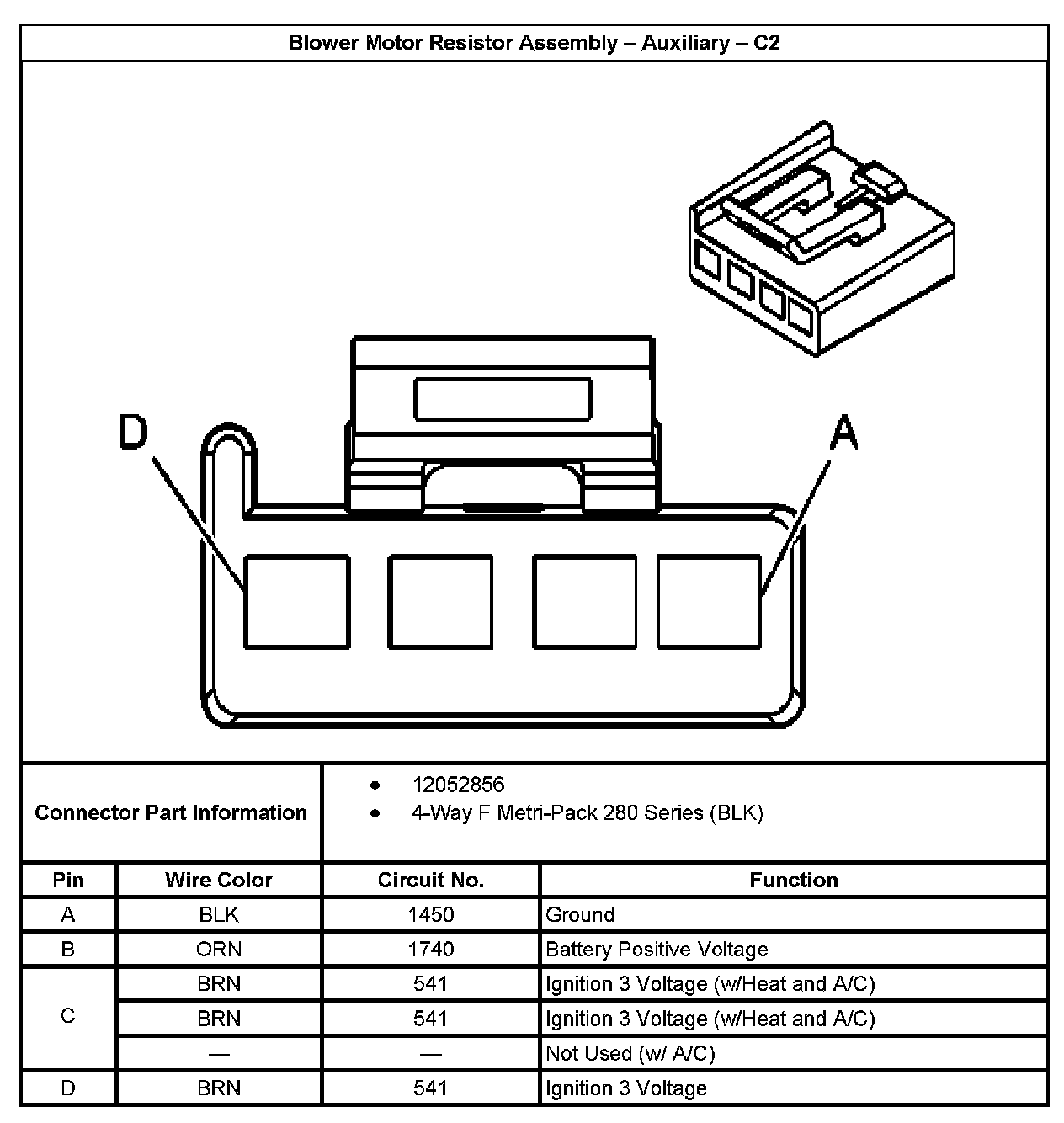

Blower Motor Resistor Assembly-Auxiliary-C2:
