DVD Player Replacement (3RD Row)

DVD PLAYER REPLACEMENT (3RD ROW)

REMOVAL PROCEDURE

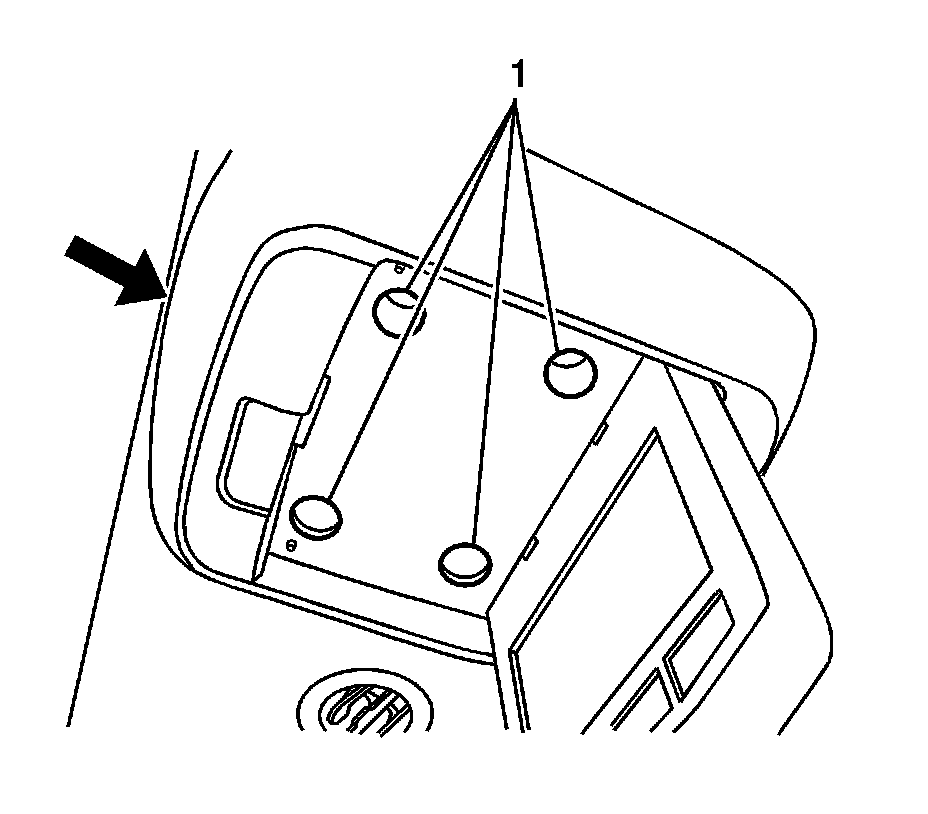

1. Open the screen and remove the four retaining screws.
2. From the rear, pry the assembly from the headliner.

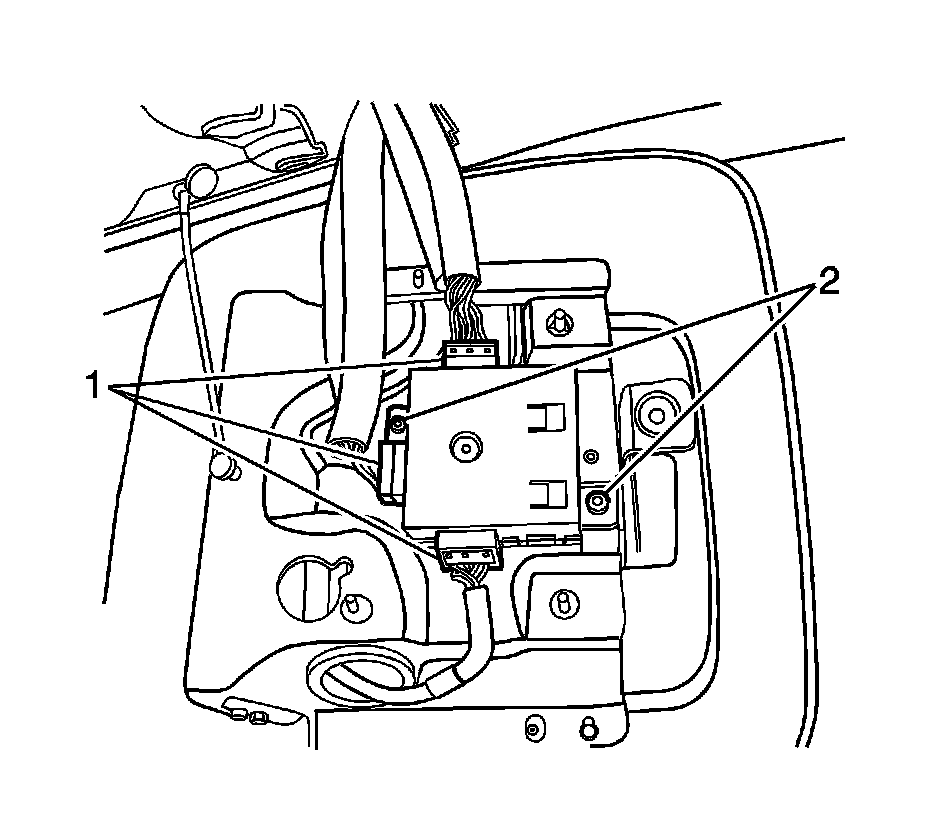

3. Remove the two retaining screws from the module.
4. Disconnect the wire connectors.
5. Remove the module.
6. Remove the DVD screen assembly.

INSTALLATION PROCEDURE




1. Allow the DVD screen to hang.
2. Connect the wire harness to the module.
3. Install the two module retaining screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 2 N.m




4. Install the DVD player until the assembly retainer clicks in place.
5. Install the four retaining screws.

Tighten the screws to 9 N.m
