Replacement Procedure - Auxiliary

BATTERY NEGATIVE CABLE REPLACEMENT - AUXILIARY

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

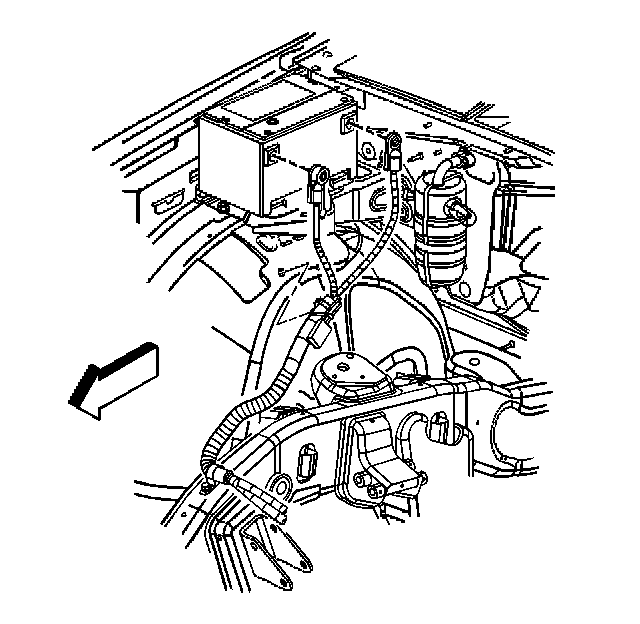

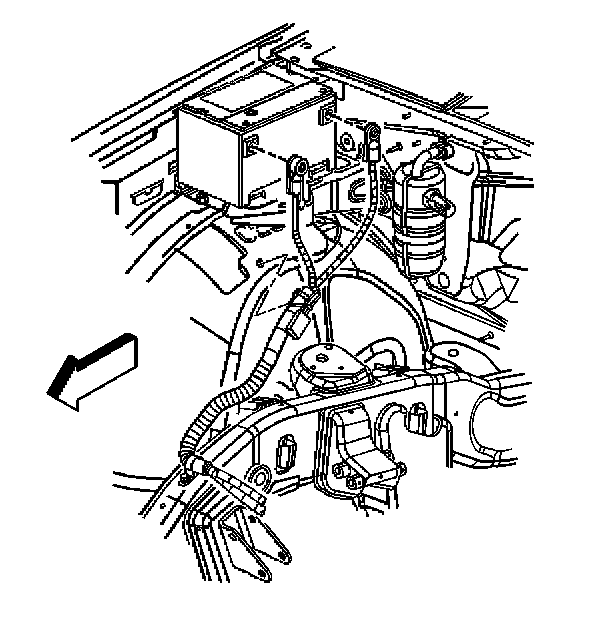

1. Disconnect the auxiliary battery negative cable.
2. Remove the auxiliary battery cable clips from the fender wheelhouse inner panel.
3. Remove the clip for the auxiliary battery cables on the frame.
4. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

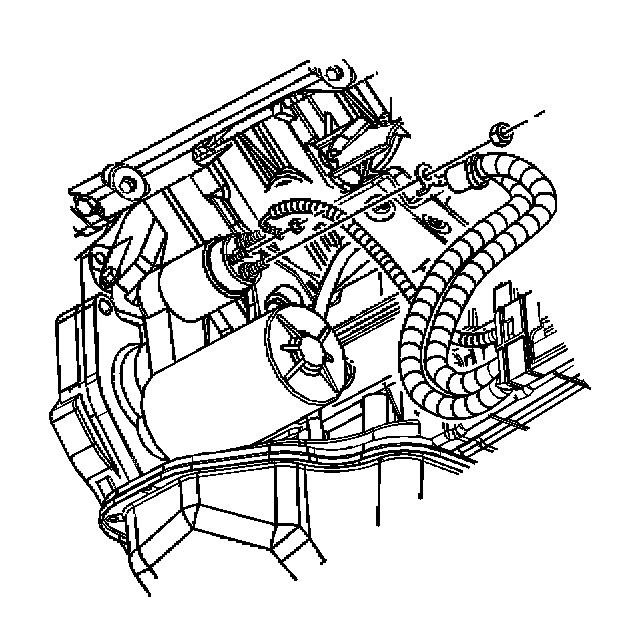

5. Remove the auxiliary battery negative cable bolt.

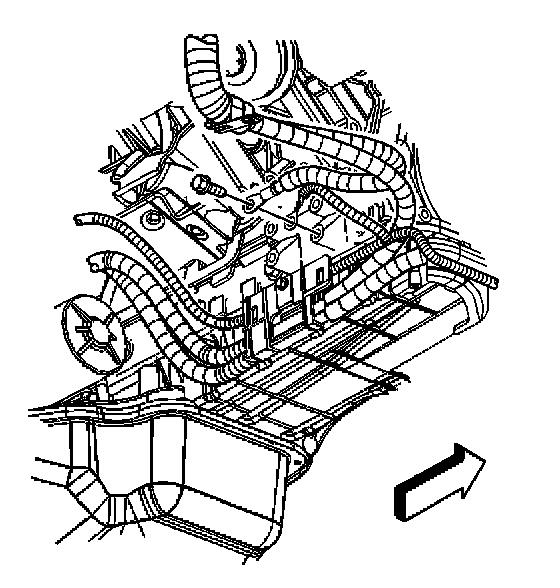

6. Remove the battery cable retainer nut.
7. Remove the auxiliary battery cable from the retainer.




8. Remove the starter lead nut.
9. Remove the auxiliary battery cable from the vehicle.

INSTALLATION PROCEDURE

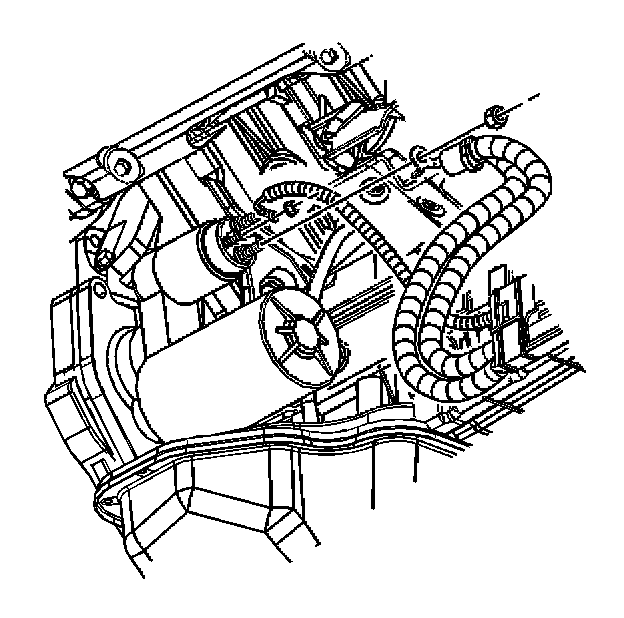

1. Position the auxiliary battery cable to the starter.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the starter lead nut.

Tighten
Tighten the nut to 9 N.m (80 lb in).

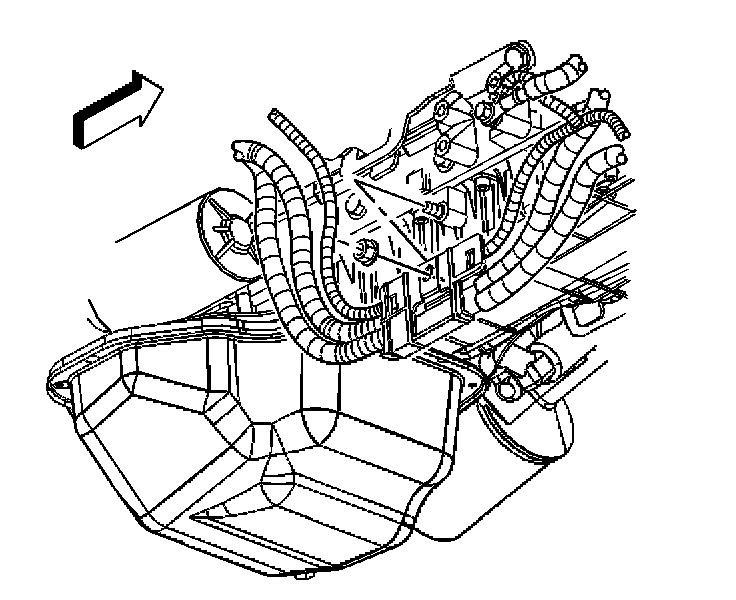

3. Install the auxiliary battery cables in the retainer.

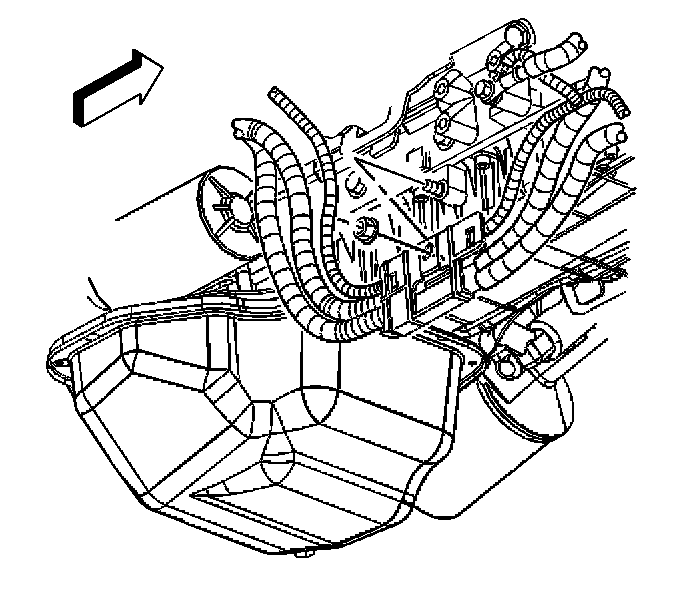

4. Install the battery cable retainer and nut.

Tighten
Tighten the nut to 12 N.m (106 lb in).




5. Install the auxiliary battery negative cable bolt.

Tighten
Tighten the bolt to 34 N.m (25 lb ft).




6. Install the clip for the auxiliary battery cable to the frame.
7. Install the auxiliary battery cable clips to the fender wheelhouse inner panel.
8. Connect the auxiliary battery negative cable.
