Chevy Truck
>>
2004
>>
Silverado 2500 4WD V8-6.6L DSL Turbo VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Alternator
Alternator
Generator - Left:

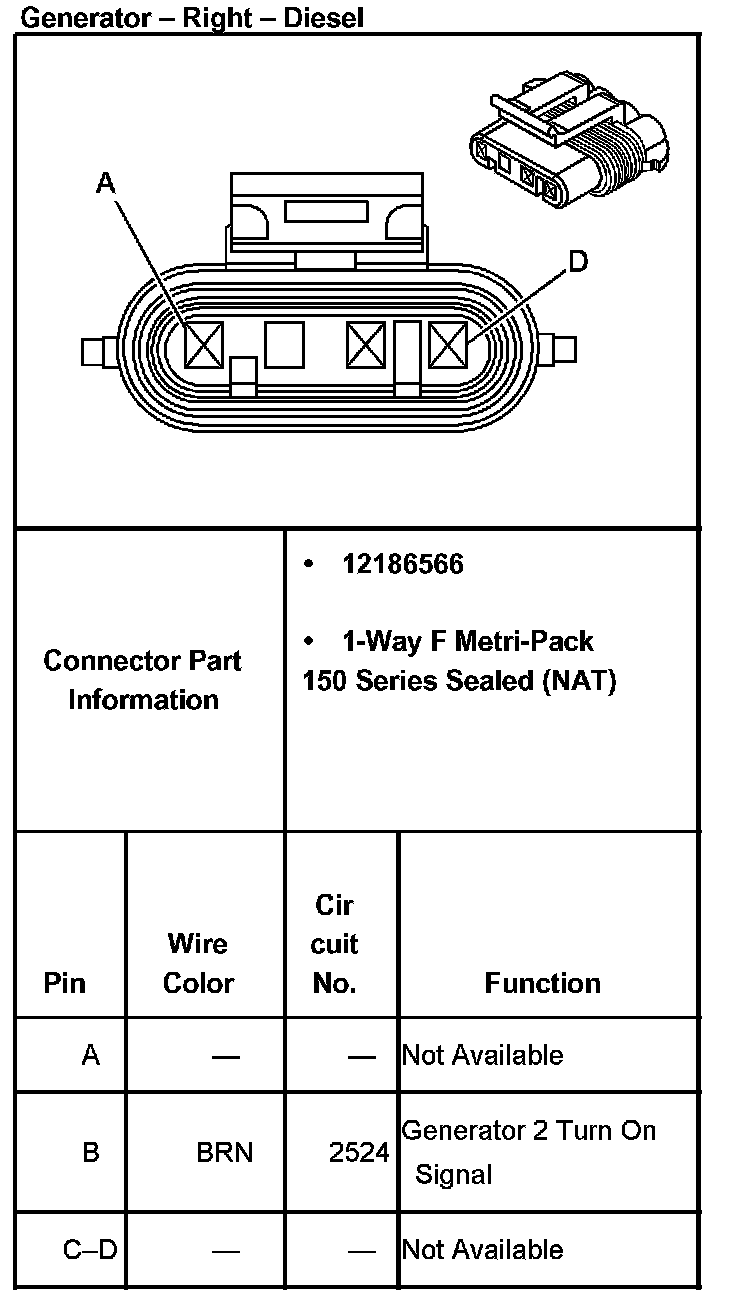

Generator - Right:
