Home >> Chevy Truck >> 2004 >> Silverado 2500 2WD V8-8.1L VIN G >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Impact Sensor >> Locations

Impact Sensor: Locations

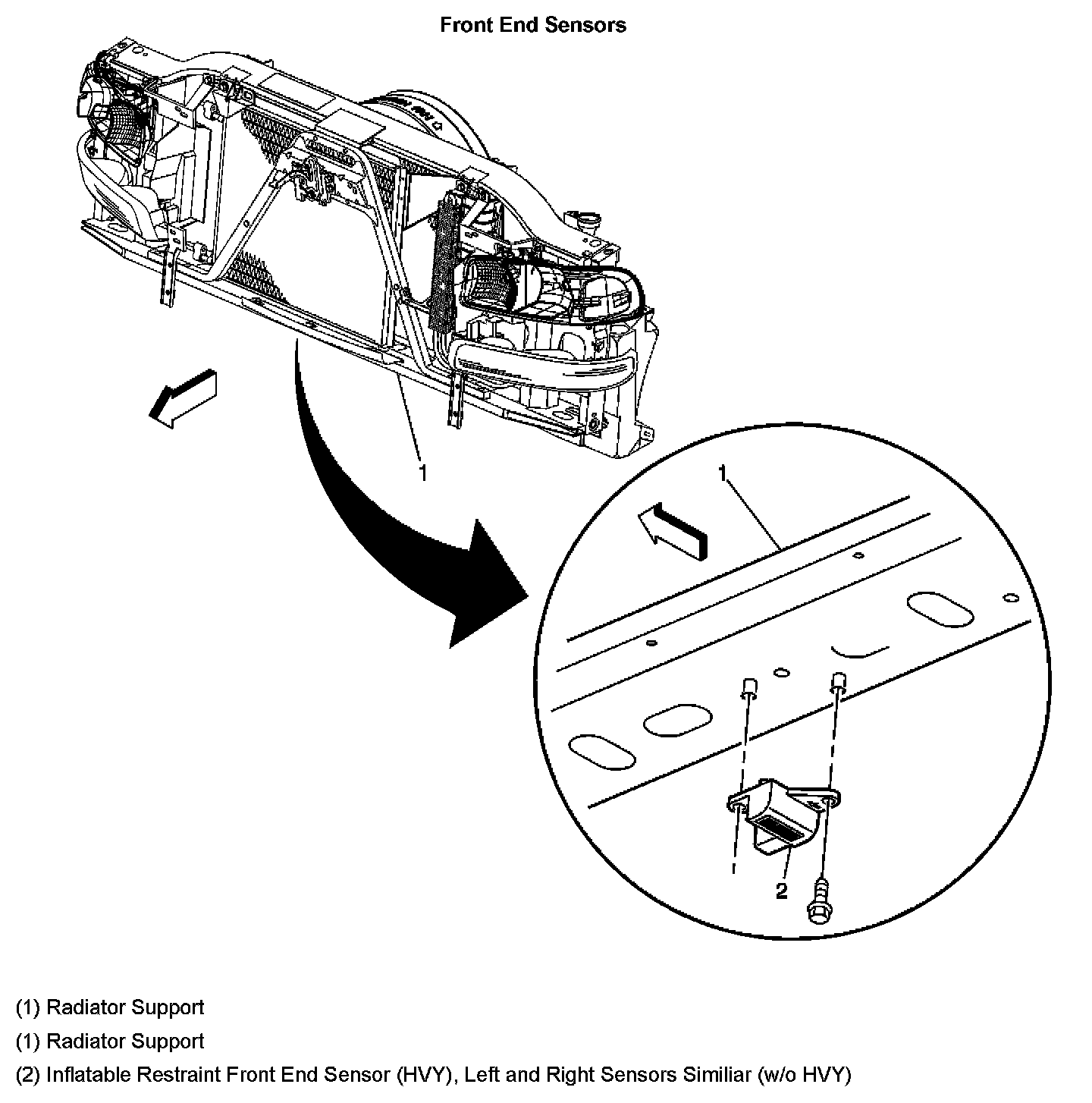

Front End Sensors:

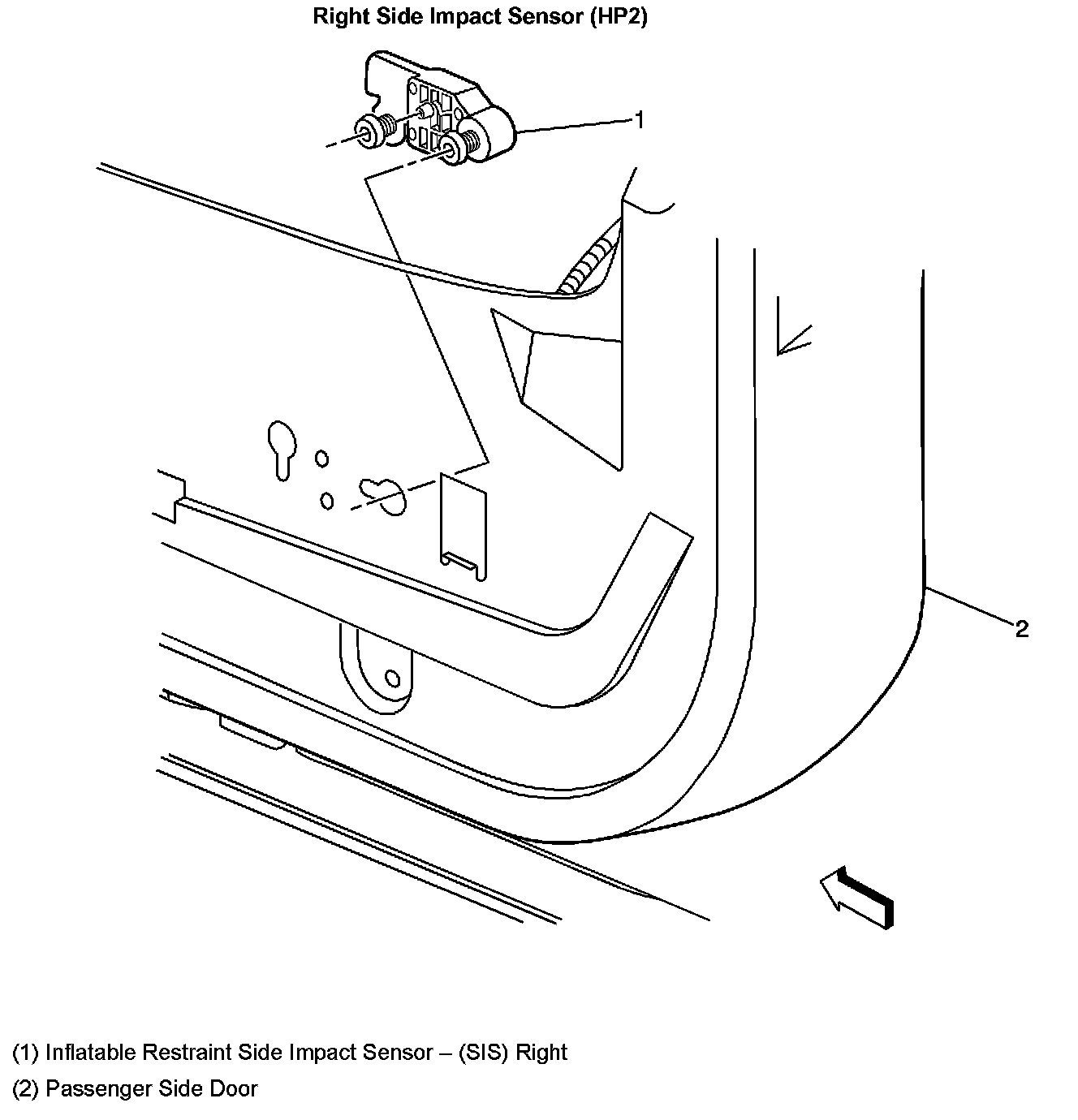

Right Side Impact Sensor (With RPO Code HP2):
