Chevy Truck
>>
2004
>>
Silverado 2500 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>

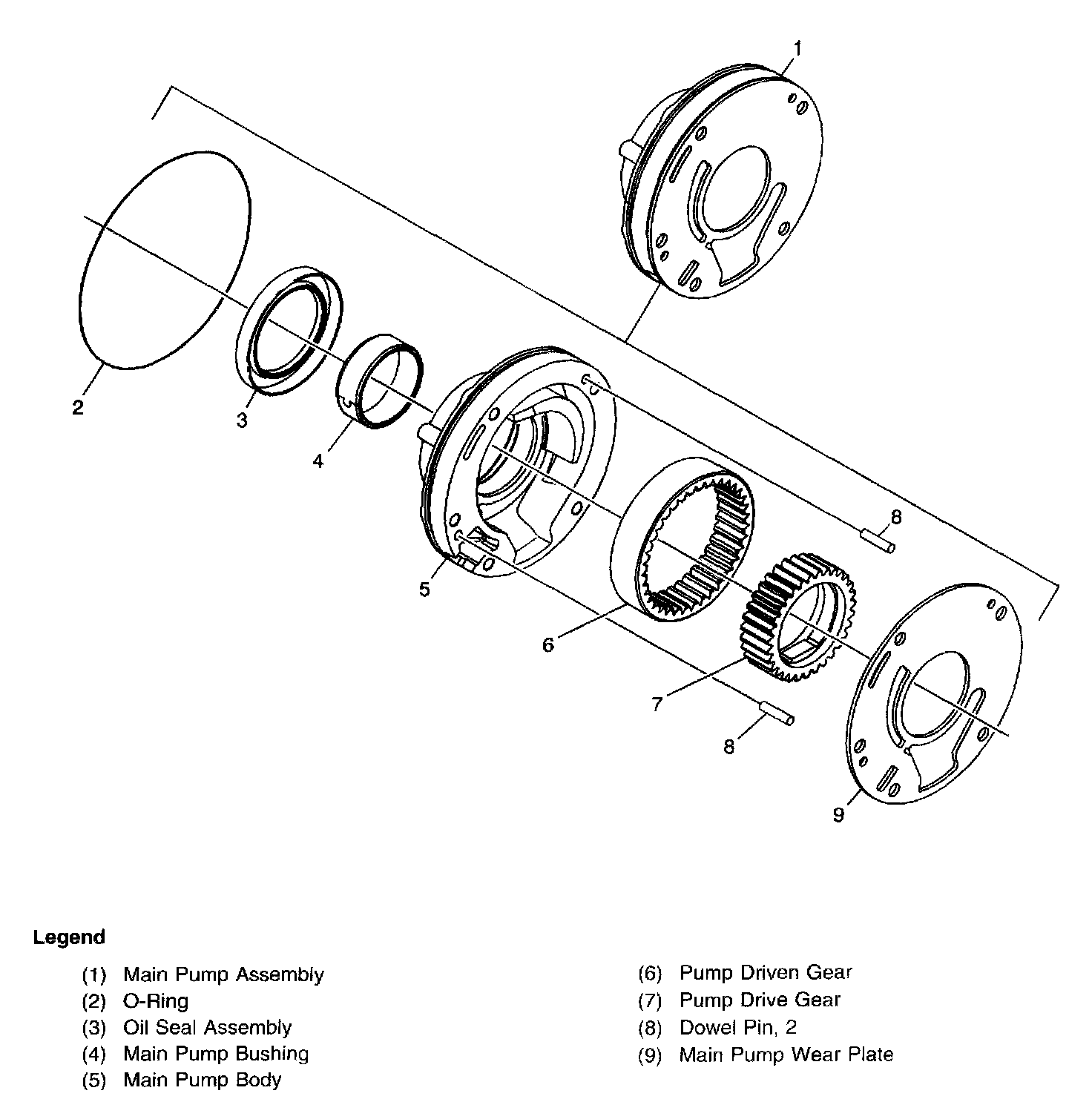

Main Pump Assembly
Main Pump Assembly
Main Pump Assembly
