Replacement procedure - Auxiliary

BATTERY POSITIVE CABLE REPLACEMENT - AUXILIARY

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

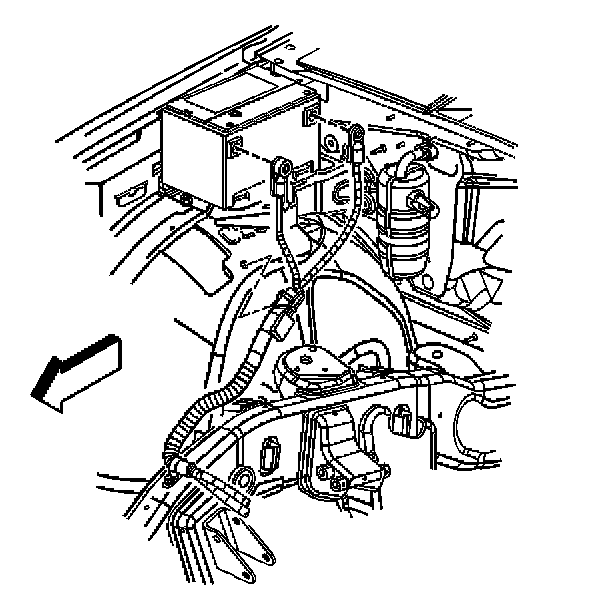

1. Disconnect the auxiliary battery negative cable.
2. Loosen the auxiliary battery positive cable bolt.
3. Remove the auxiliary battery cable clip from the wheelhouse inner panel.
4. Remove the auxiliary battery cable clip from the frame.
5. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

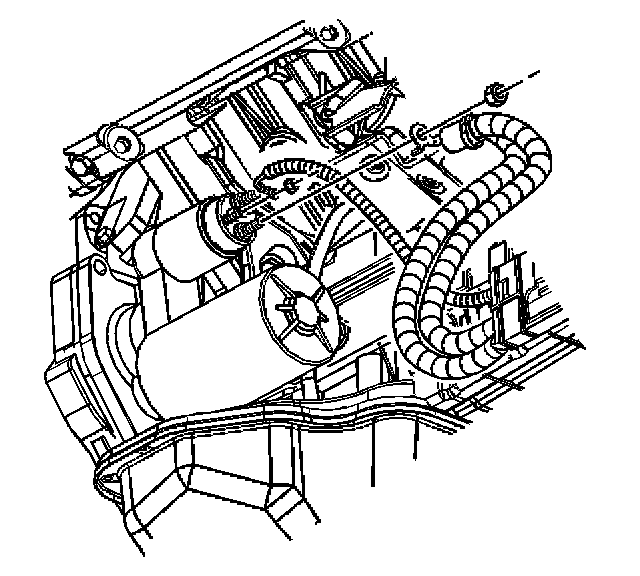

6. Remove the starter lead nut.
7. Remove the auxiliary positive battery cable from the starter solenoid stud.

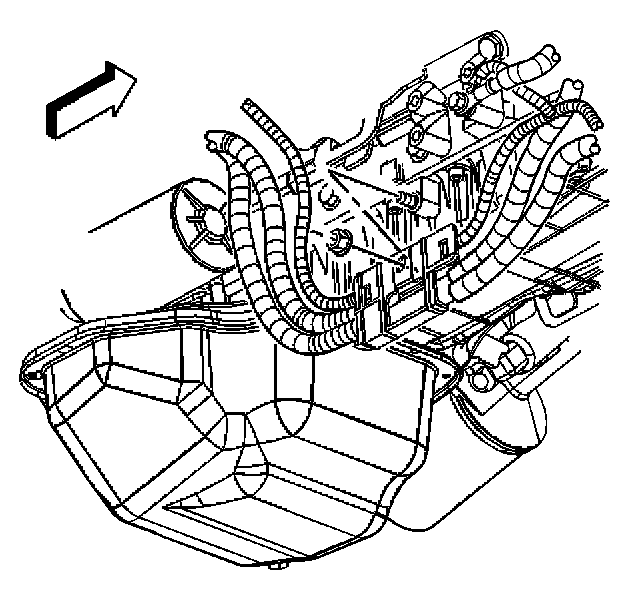

8. Remove the auxiliary battery negative cable bolt.

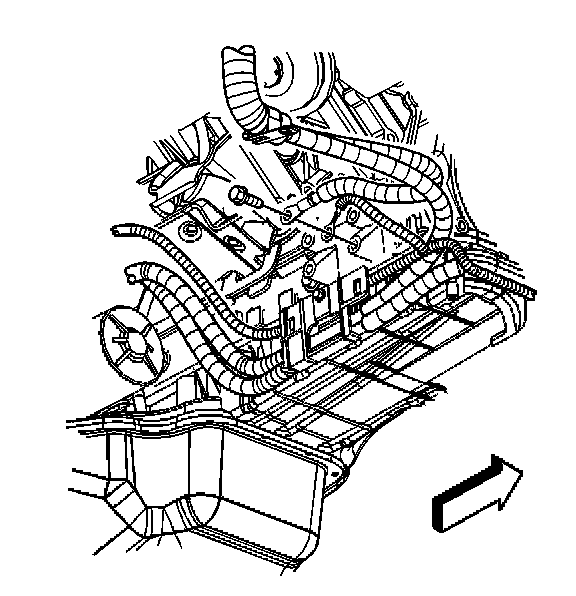

9. Remove the battery cable retainer nut.
10. Remove the auxiliary positive cable from the retainer.
11. Remove the auxiliary battery cable.

INSTALLATION PROCEDURE

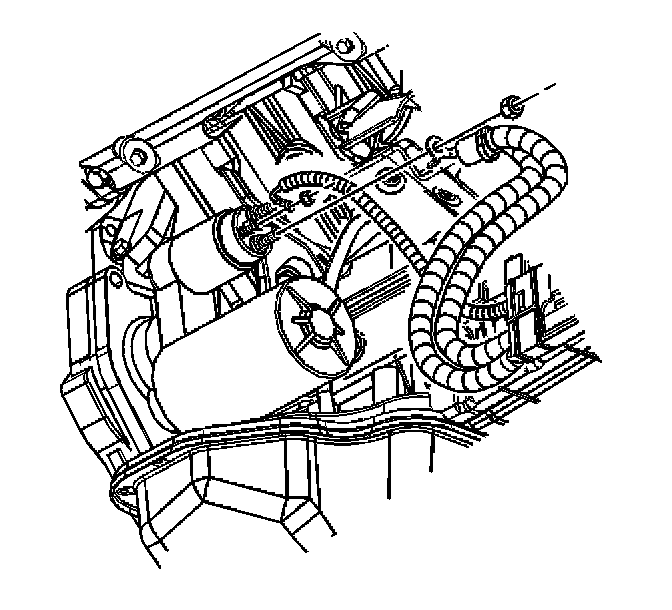

1. Position the auxiliary battery cable to the starter.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the starter lead nut.

Tighten
Tighten the nut to 9 N.m (80 lb in).

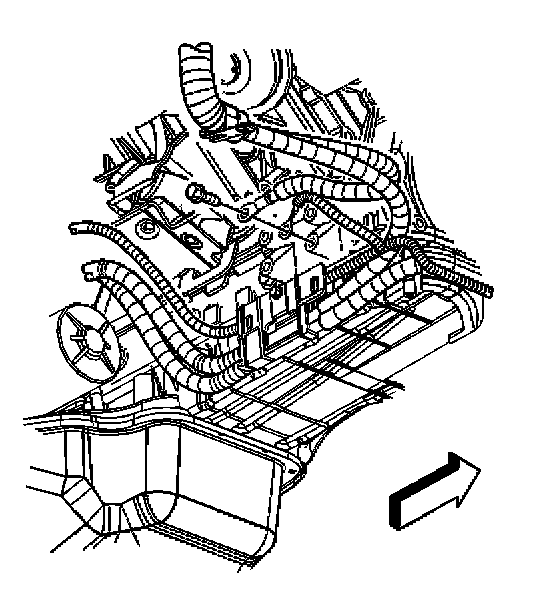

3. Install the auxiliary battery cable to the retainer.
4. Install the retainer and nut.

Tighten
Tighten the nut to 12 N.m (106 lb in).

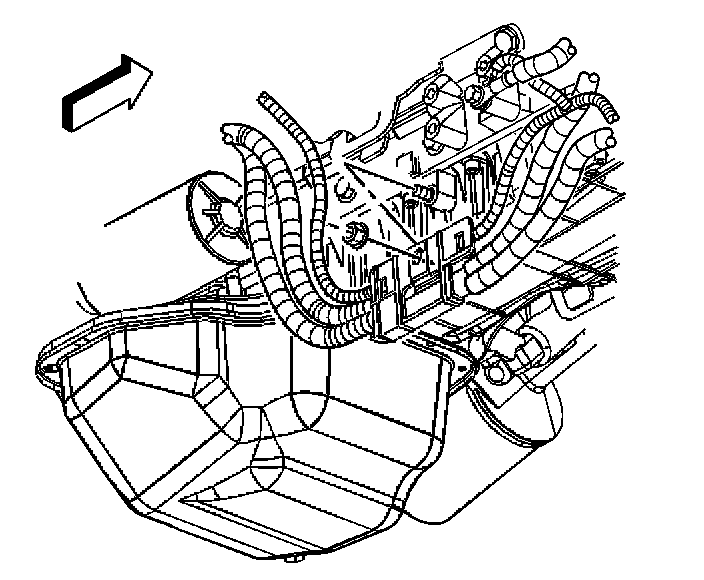

5. Install the auxiliary battery negative cable bolt.

Tighten
Tighten the bolt to 34 N.m (25 lb ft).

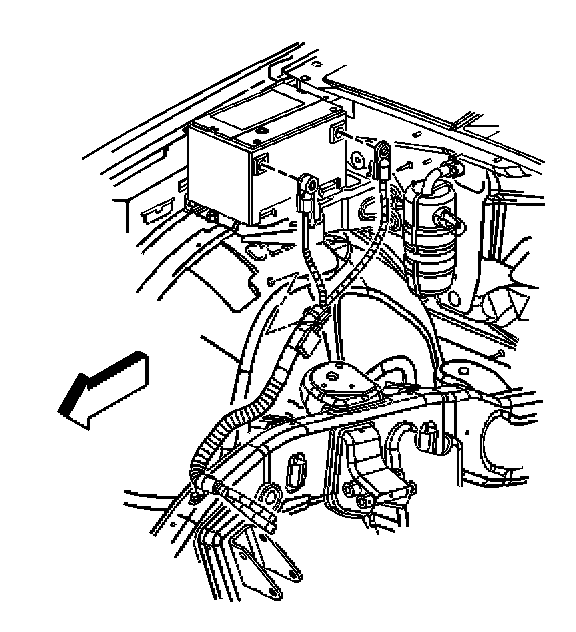

6. Install the auxiliary battery positive cable.
7. Tighten the auxiliary battery positive cable.

Tighten
Tighten the bolt to 17 N.m (13 lb ft).

8. Connect the auxiliary battery negative cable.
