Water Pump Outlet Pipe Replacement

Water Pump Outlet Pipe Replacement (6.6L (LB7) Engine)

Removal Procedure





1. Remove the water pump.

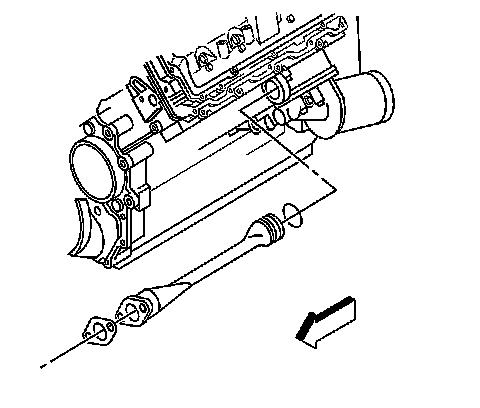

2. Remove the oil cooler inlet/water pump outlet pipe from the engine oil cooler.
3. Remove and discard the O-ring seal.
4. Remove the gasket and clean the sealing surface.

Installation Procedure





1. Install a new O-ring seal on the water pump outlet pipe.
2. Lightly lubricate the O-ring seal with engine oil.
3. Install the oil cooler inlet/water pump outlet pipe in the engine oil cooler.
4. Install a NEW oil cooler inlet pipe to water pump gasket.
5. Install the water pump.
