Reverse
Reverse

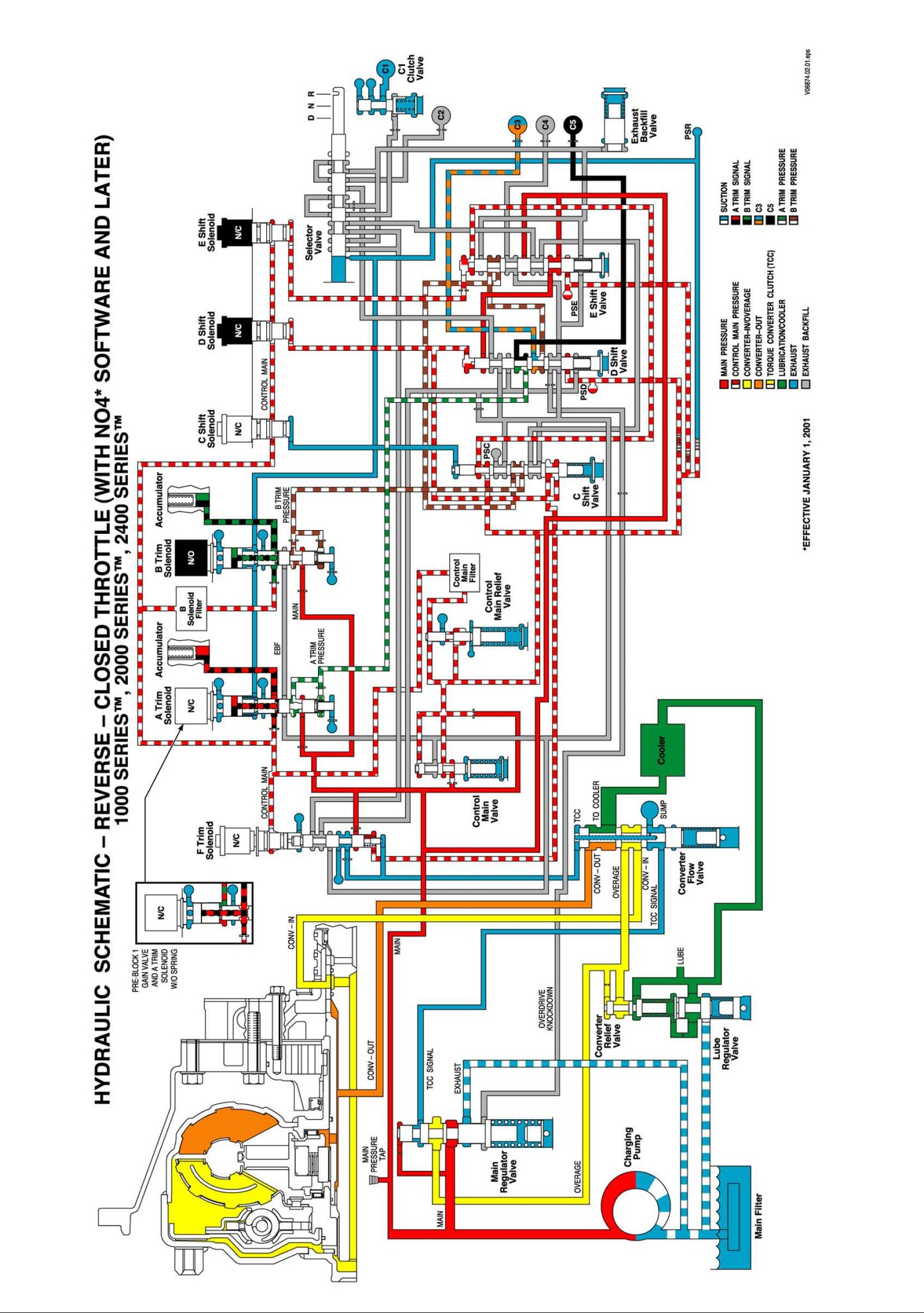

Reverse Range with N04 Hydraulic Schematic

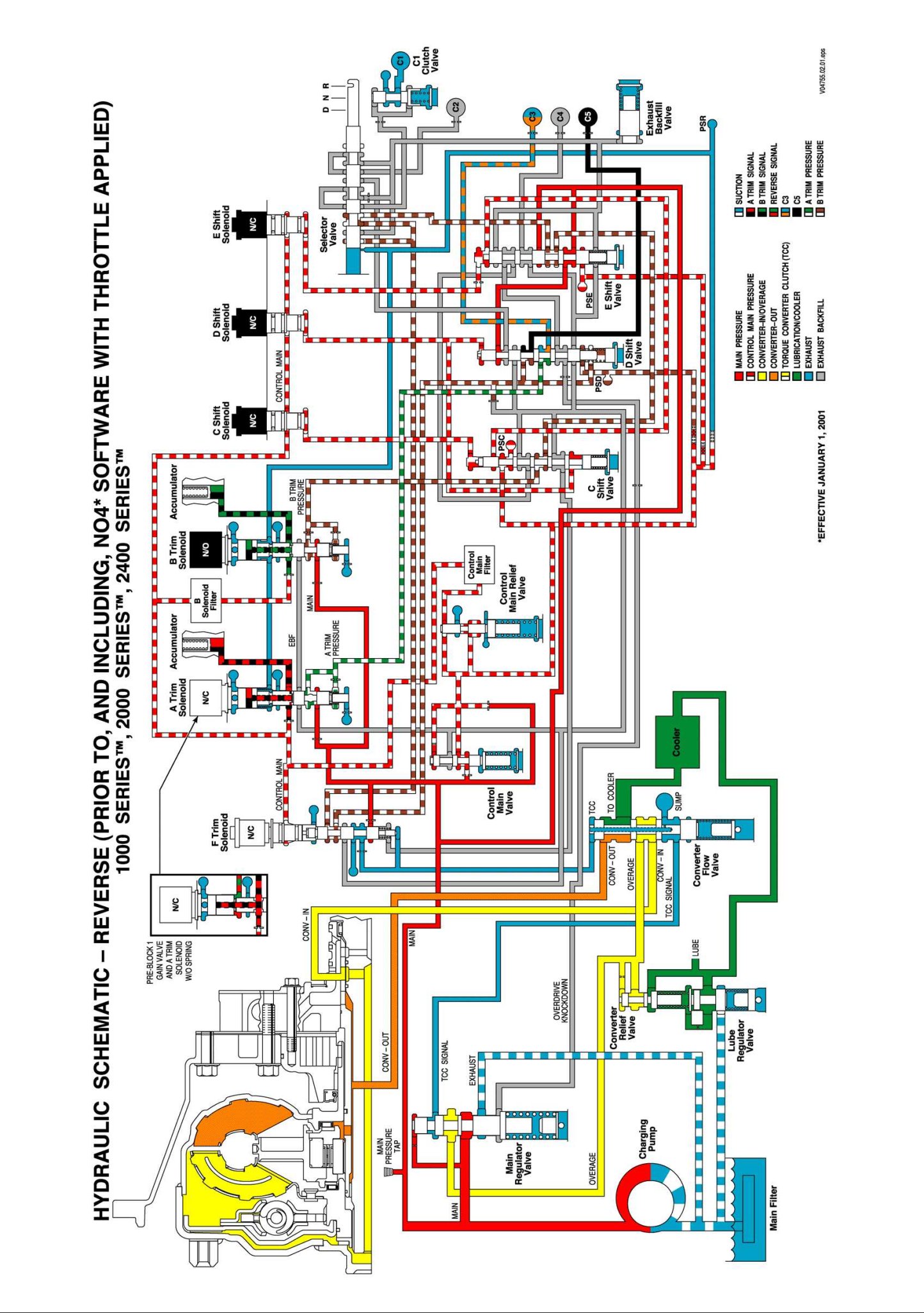

Reverse Range Before N04 Hydraulic Schematic
