Chevy Truck
>>
2004
>>
Silverado 2500 2WD V8-6.6L DSL Turbo VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Fluid Diagrams
>>
Automatic Transmission/Transaxle
>>
Fourth Range
Fourth Range
Fourth Range

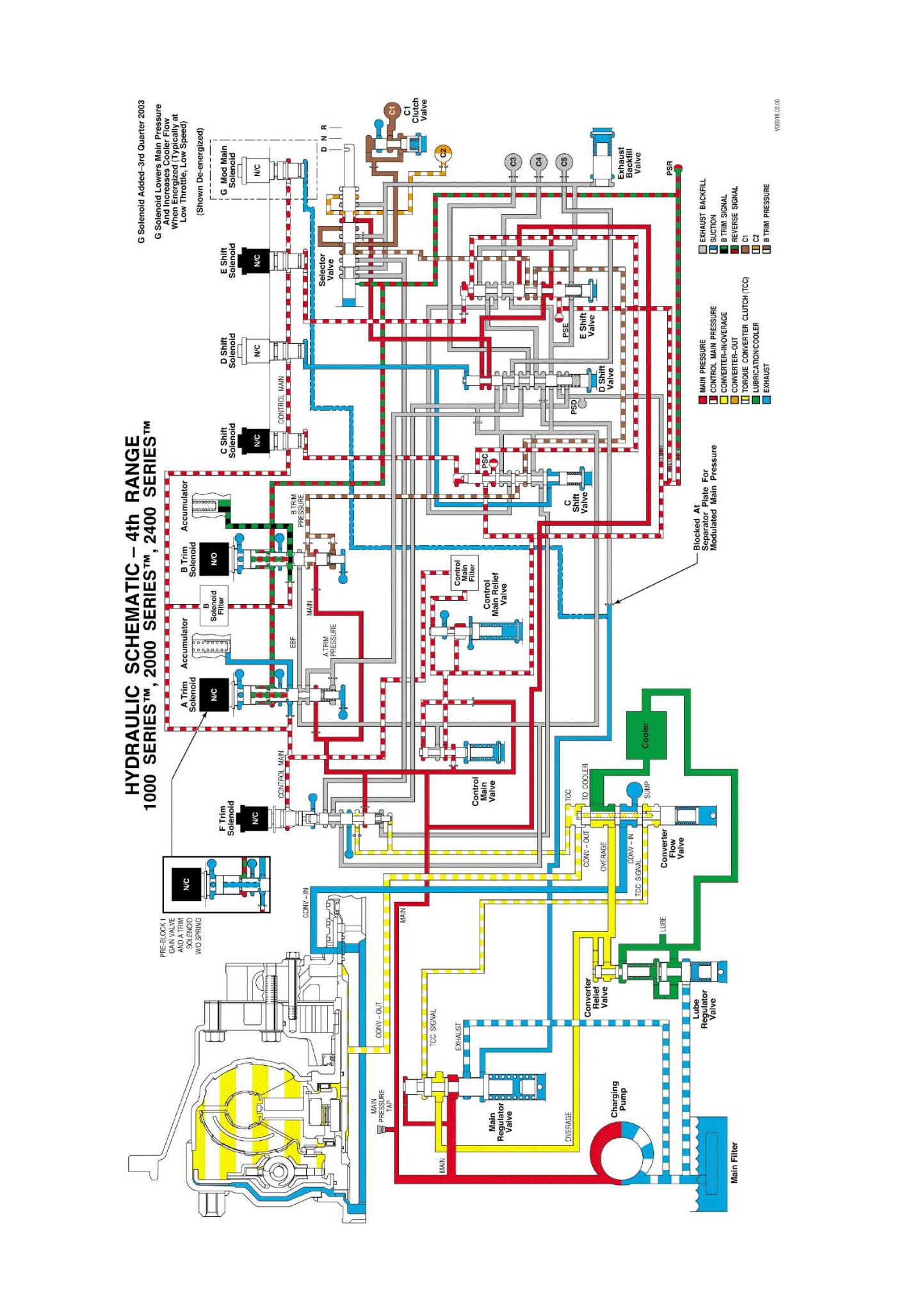

Fourth Range Hydraulic Schematic
