Center Mounted Brake Lamp: Service and Repair

HIGH MOUNTED STOP LAMP REPLACEMENT

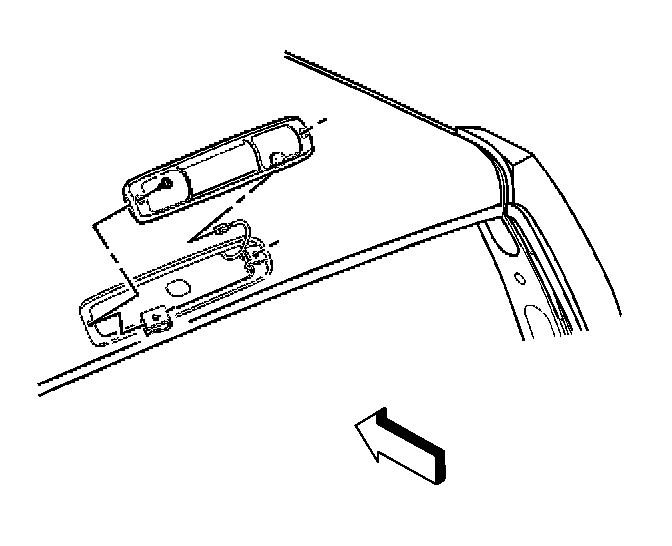

REMOVAL PROCEDURE
1. Ensure the headlamp switch is in the OFF position.




2. Remove the high mounted stop lamp screws.
3. Remove the high mounted stop lamp from the vehicle.
4. Disconnect the electrical connector.

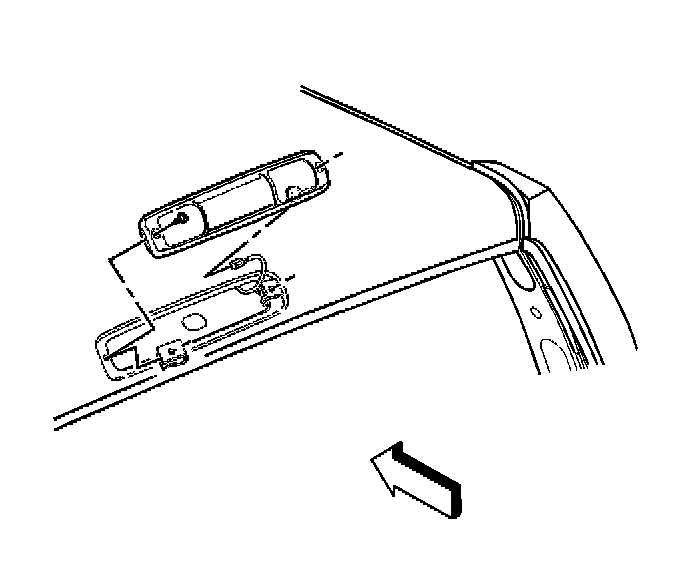

INSTALLATION PROCEDURE




1. Connect the electrical connector.
2. Install the high mounted stop lamp to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the high mounted stop lamp screws.

Tighten
Tighten the high mounted stop lamp screws to 2 N.m (17 lb in).

4. Inspect the operation.
