Silverado 1500 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Blower Motor
>>
HVAC System - Automatic
HVAC System - Automatic

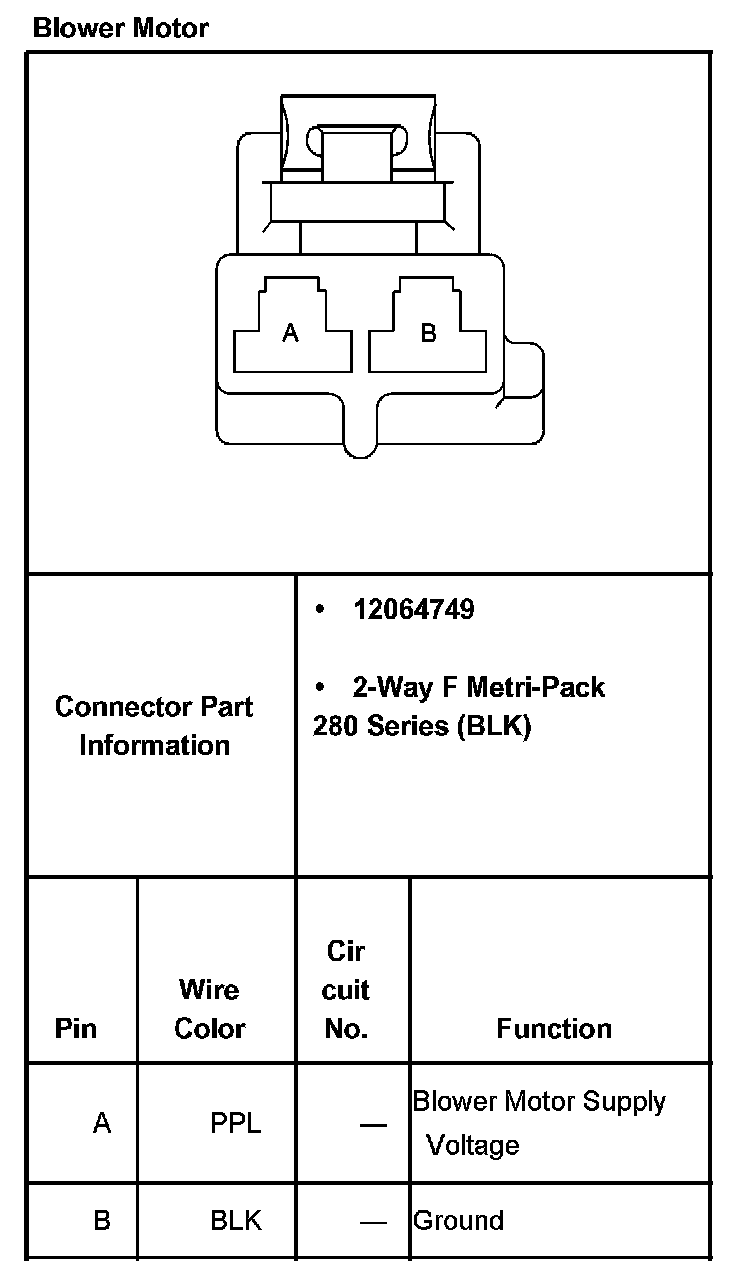

Blower Motor:

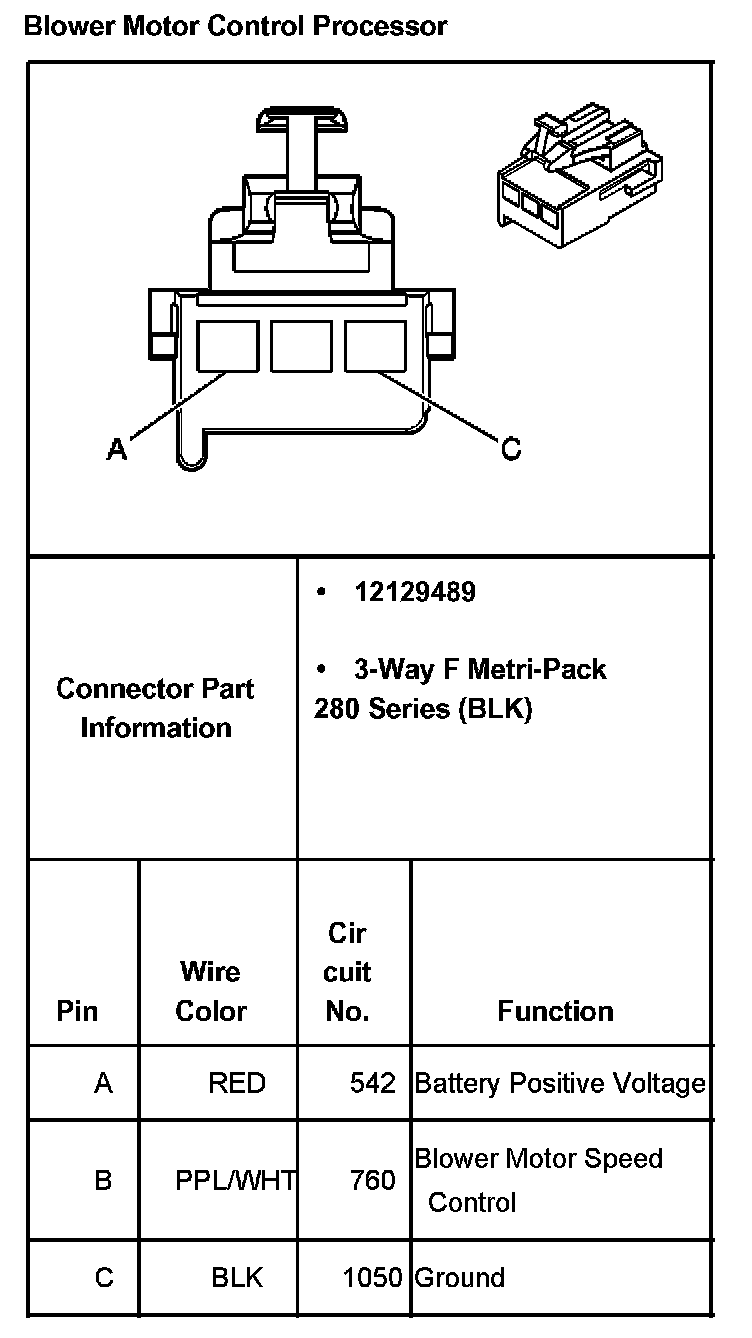

Blower Motor Control Processor:
