Brake Pads Replacement - Rear
Brake Pads Replacement - Rear (15 Series W/O NYS)Caution: Refer to Brake Dust Caution in Service Precautions.
Removal Procedure
1. Inspect the fluid level in the brake master cylinder reservoir.
2. If the brake fluid level is midway between the maximum-full point and the minimum allowable level, no brake fluid needs to be removed from the reservoir before proceeding.
3. If the brake fluid level is higher than midway between the maximum-full point and the minimum allowable level, remove brake fluid to the midway point before proceeding.
4. Raise and support the vehicle. Refer Vehicle Lifting
5. Remove the tire and wheel assembly.
6. Notice:
Support the brake caliper with heavy mechanic's wire, or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.
Remove the caliper from the mounting bracket and support the caliper with heavy mechanic's wire or equivalent. DO NOT disconnect the hydraulic brake flexible hose from the caliper. Refer to Brake Caliper Replacement - Front.
7. Inspect the caliper assembly. Refer to Brake Caliper Inspection.
8. Remove the brake pads from the brake caliper bracket.
9. Remove the brake pad retainers from the brake caliper bracket.
Installation Procedure

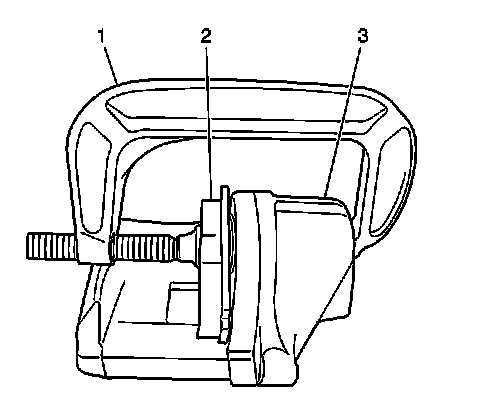

1. Using a C-clamp (1), bottom the piston into the caliper bore. Use an old brake pad (2) or wooden block placed across the face of the piston. Do not damage the piston or the caliper boot.
2. Important:
Use a small flat-bladed tool and lift the inner edge caliper boot next to the piston to release any trapped air.
Ensure that the piston boot is below the level of the piston face.
3. Install the brake pad retainers to the caliper bracket.
4. Important:
Ensure that the wear sensor is positioned at the leading edge, upward, of the inner pad during forward wheel rotation.
Install the brake pads over the brake pad retainers and onto the caliper bracket.
5. Install the caliper to the caliper mounting bracket.
6. Notice:
Refer to Fastener Notice in Service Precautions.
Install 2 new caliper guide pin bolts.
^ Tighten the 2 caliper guide pin bolts to 42 Nm (31 ft. lbs.).
7. Install the tire and wheel assembly.
8. Lower the vehicle.
9. With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
10. Slowly release the brake pedal.
11. Wait 15 seconds, then repeat steps 9-10 until a firm pedal is obtained. This will properly seat the brake caliper pistons and brake pads.
12. Fill the master cylinder reservoir to the proper level with clean brake fluid. Refer to Master Cylinder Reservoir Filling in Hydraulic Brakes.
13. Burnish the pads and the rotors. Refer to Burnishing Pads and Rotors.
