Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2004
>>
Silverado 1500 2WD V8-5.3L Hybrid
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>

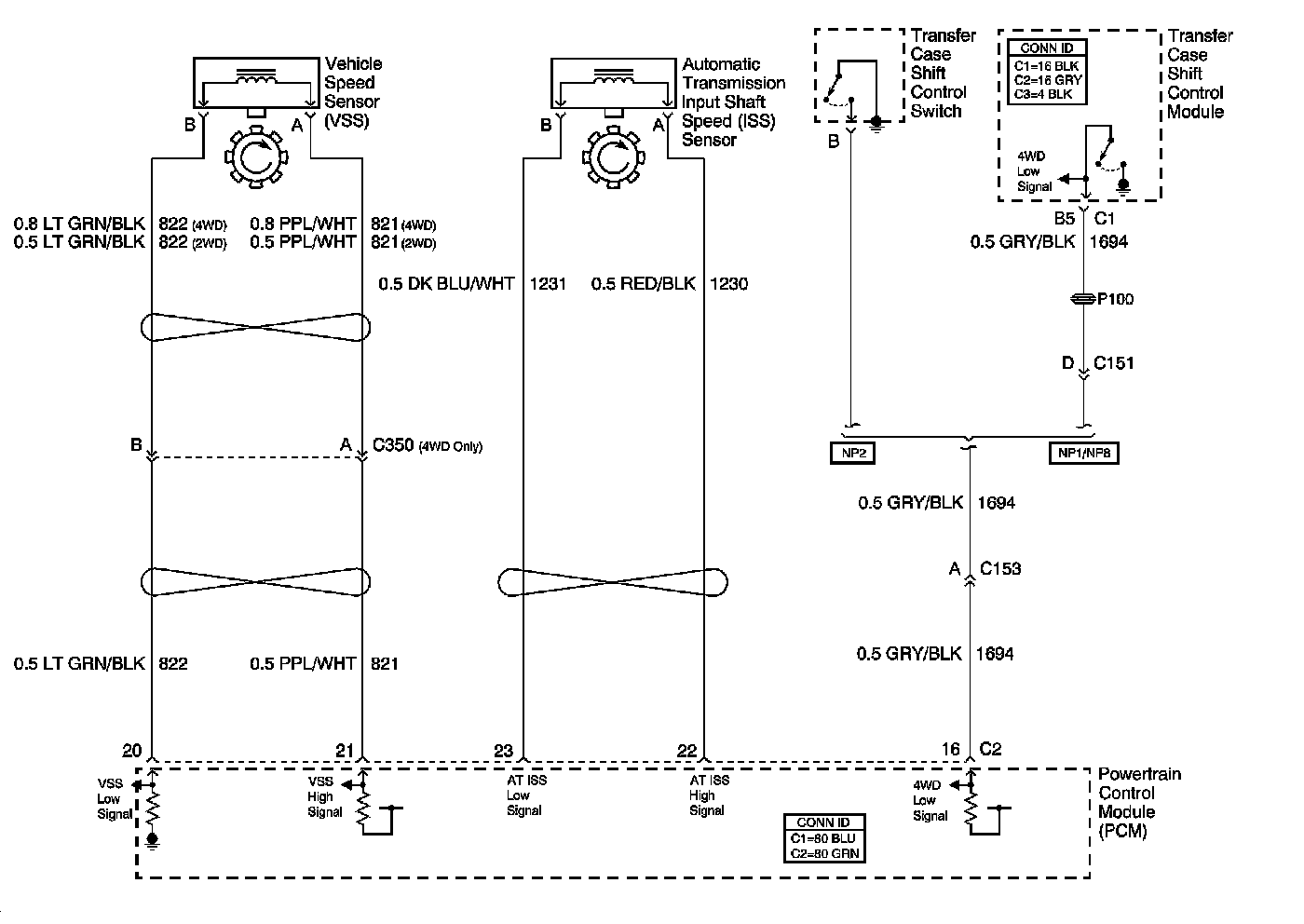

Vehicle Speed and 4WD Signal
Vehicle Speed and 4WD Signal
Vehicle Speed and 4WD Signal:
