Chevy Truck
>>
2004
>>
Silverado 1500 2WD V8-5.3L Hybrid
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Auxiliary Pump Controls - Hybrid Only

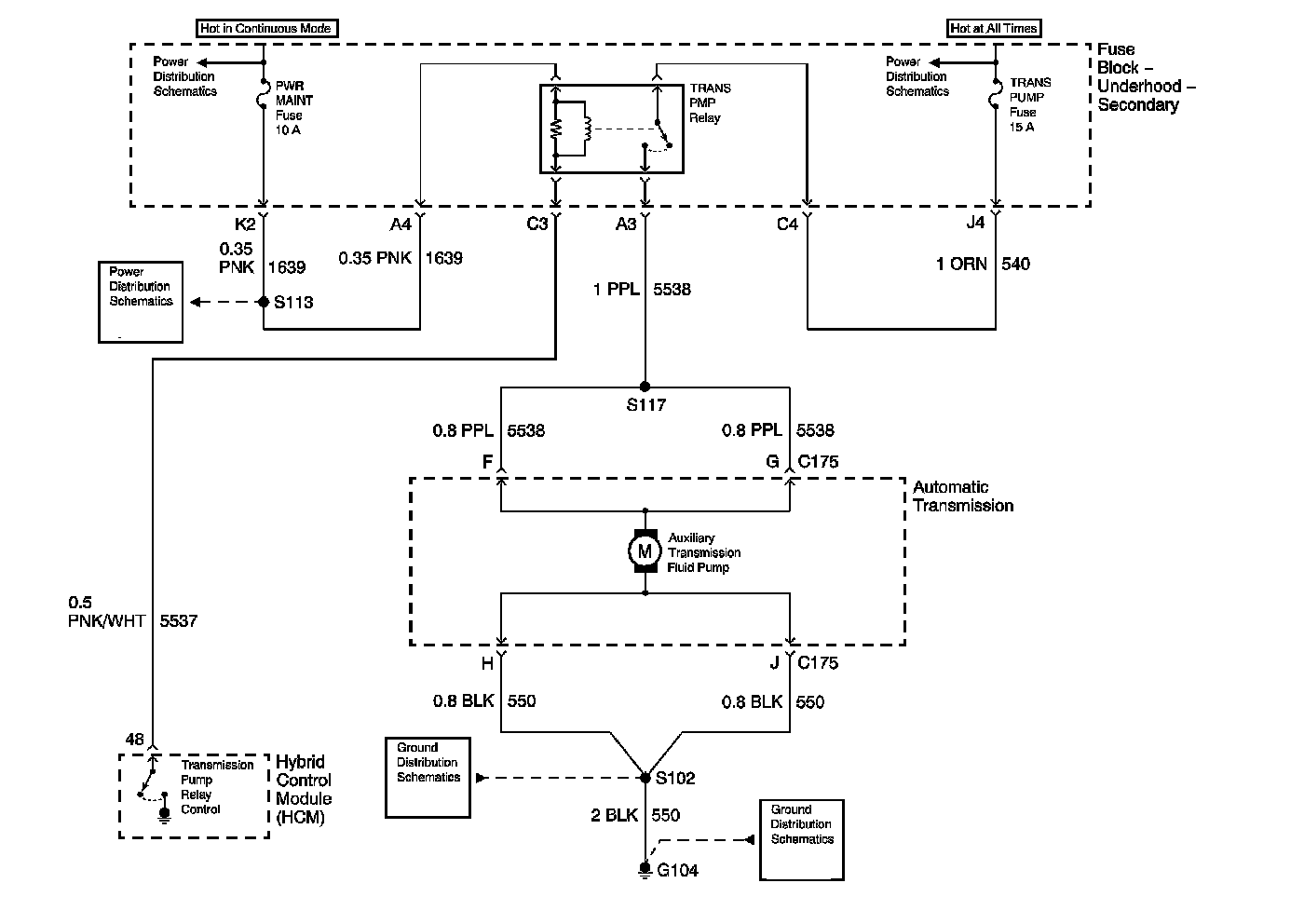

Auxiliary Pump Controls - Hybrid Only
Auxiliary Pump Controls - Hybrid Only:
