Chevy Truck
>>
2004
>>
Silverado 1500 2WD V8-5.3L Hybrid
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Underhood Fuse Block
Underhood Fuse Block

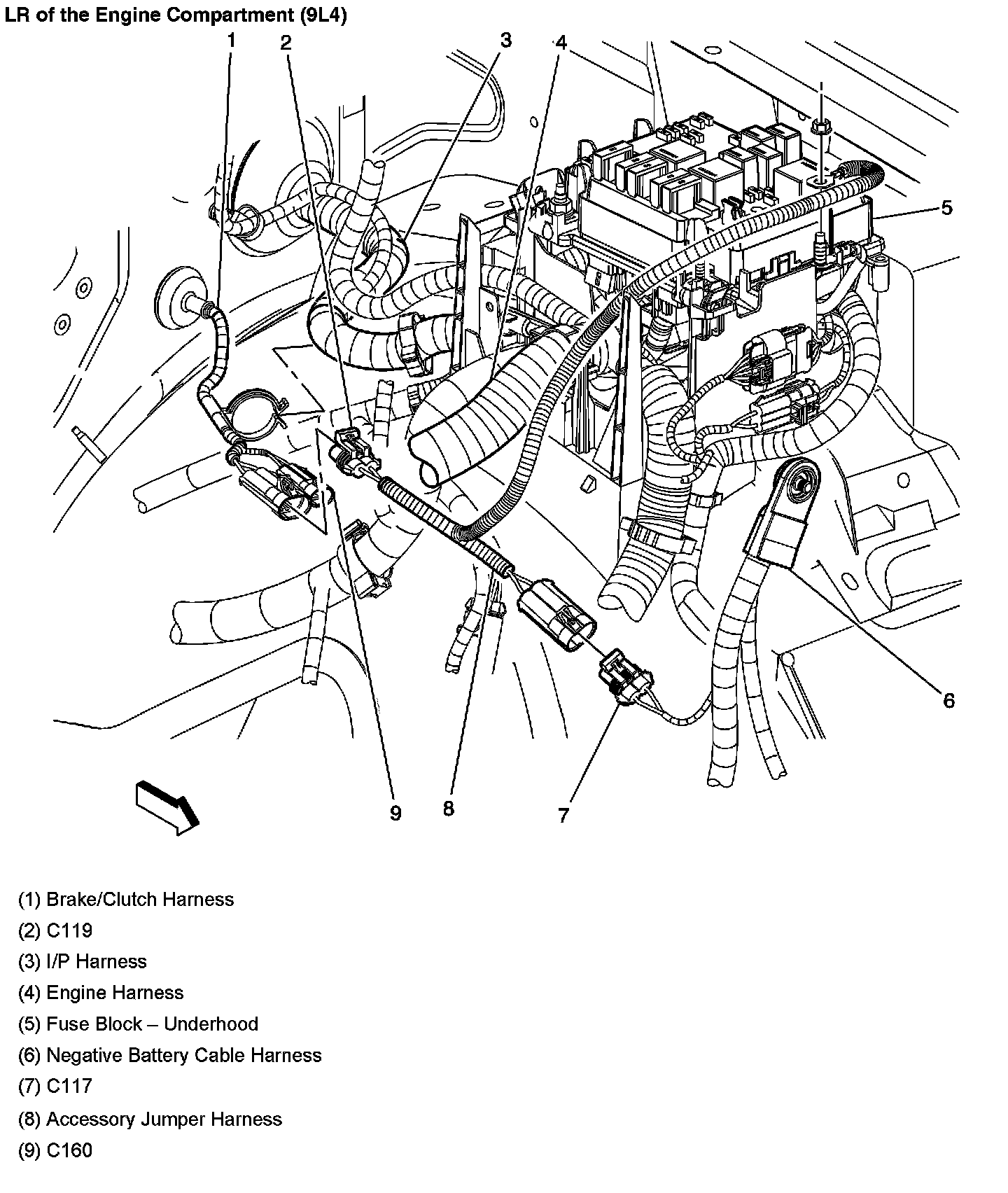

LR Of The Engine Compartment (With RPO Code 9L4):
