Energy Storage Box (ESB) Trim Cover Replacement

ENERGY STORAGE BOX (ESB) TRIM COVER REPLACEMENT (WITH RPO CODE HP2)

REMOVAL PROCEDURE




1. Raise the rear seat.

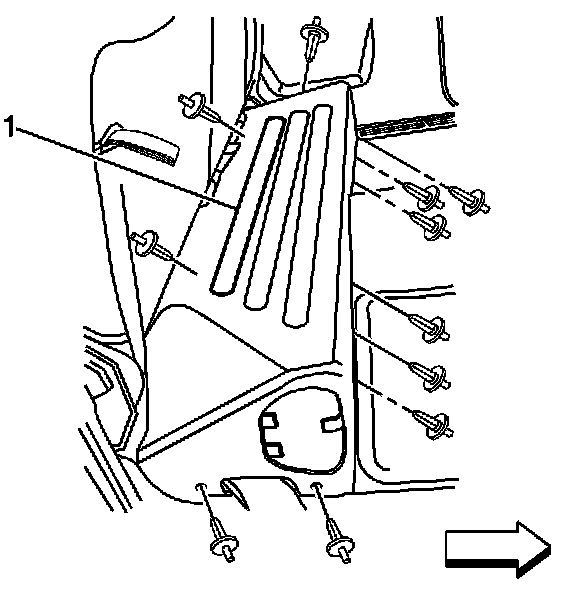

2. Remove the plastic pushpin retainers from the energy storage box (ESB) trim cover (1).
3. Remove the ESB trim cover.

INSTALLATION PROCEDURE

IMPORTANT: When installing the ESB trim cover ensure that the cover is positioned behind the 120V outlet faceplate.




1. Install the ESB trim cover.

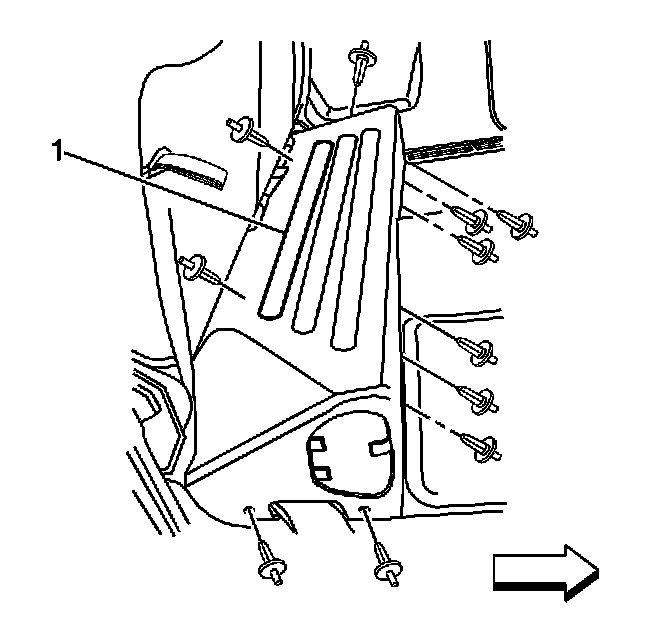

2. Install the plastic pushpin retainers to the ESB trim cover (1).
3. Lower the rear seat.
