Energy Storage Box (ESB) Service Disconnect Switch Replacement

ENERGY STORAGE BOX (ESB) SERVICE DISCONNECT SWITCH REPLACEMENT (WITH RPO CODE HP2)

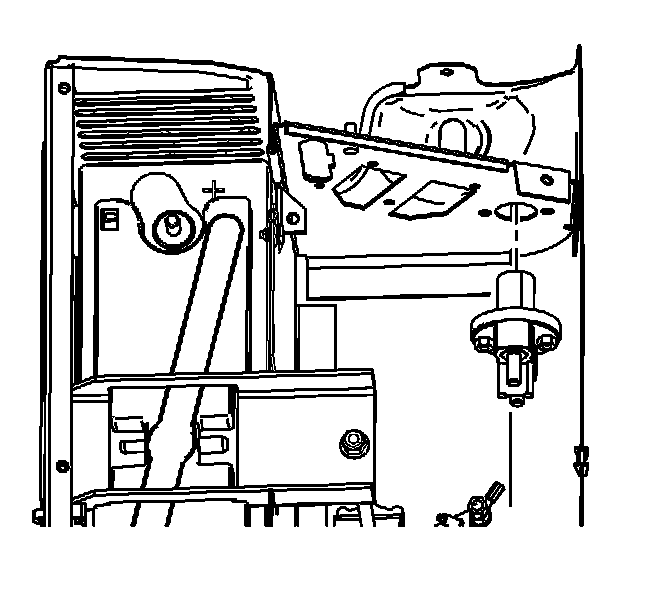

REMOVAL PROCEDURE




1. Remove the energy storage box (ESB) intermediate cover.

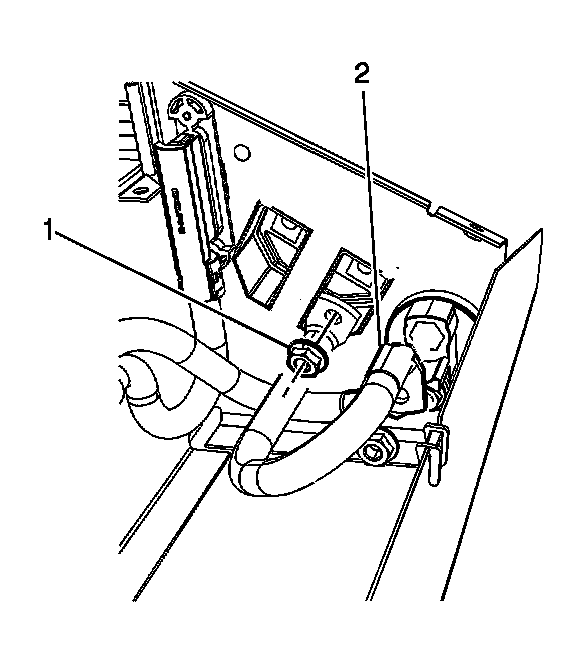

2. Remove the service disconnect power cable nut and cable (2) from the service disconnect switch.

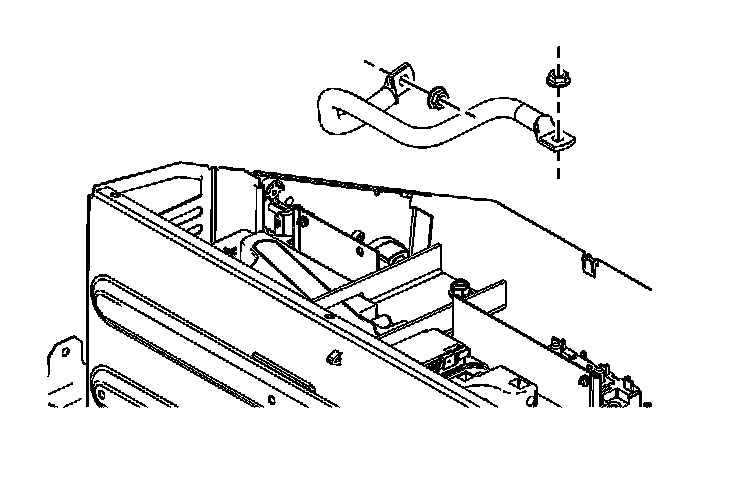

3. Remove the service disconnect power cable nut and cable from the service disconnect switch.

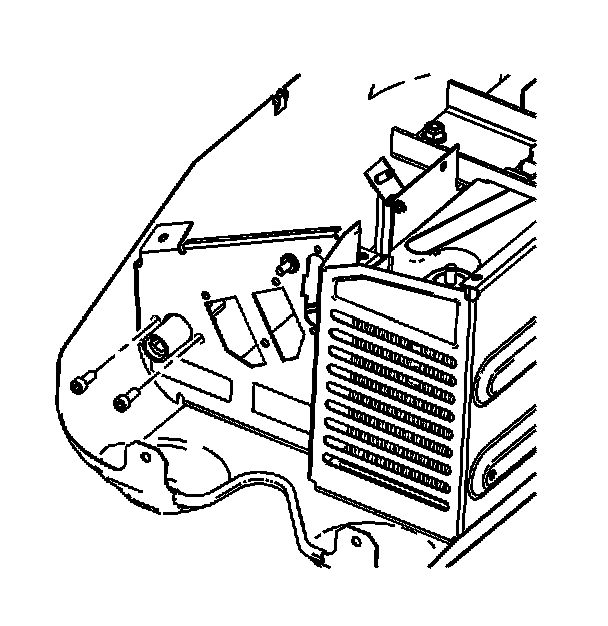

4. Remove the service disconnect switch screws.

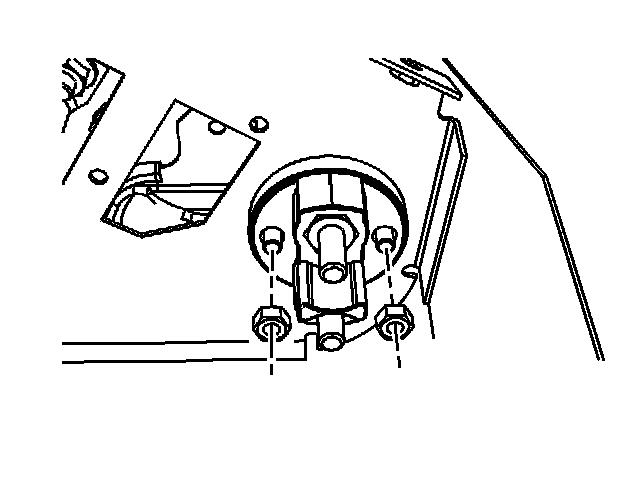

5. Remove the service disconnect switch nuts.




6. Remove the service disconnect switch.

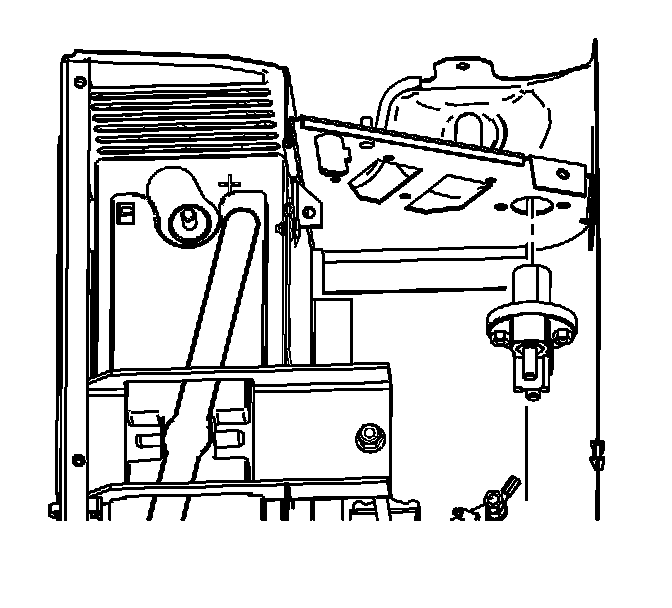

INSTALLATION PROCEDURE




1. Install the service disconnect switch.

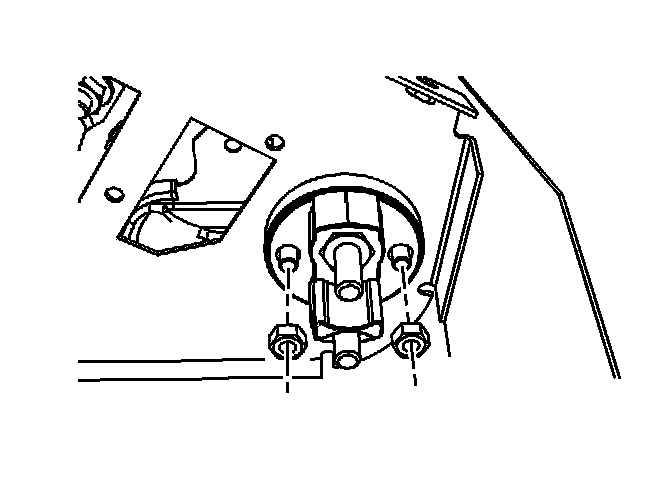

2. Remove the service disconnect power cable nut and cable (2) from the service disconnect switch. Install the service disconnect switch nuts.

Tighten
Tighten the nuts to 6 N.m (53 lb in).

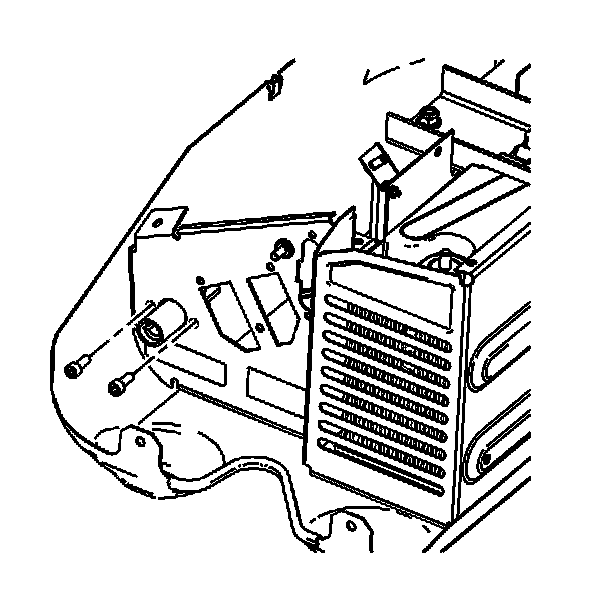

3. Install the service disconnect switch screws.

Tighten
Tighten the screws to 6 N.m (53 lb in).

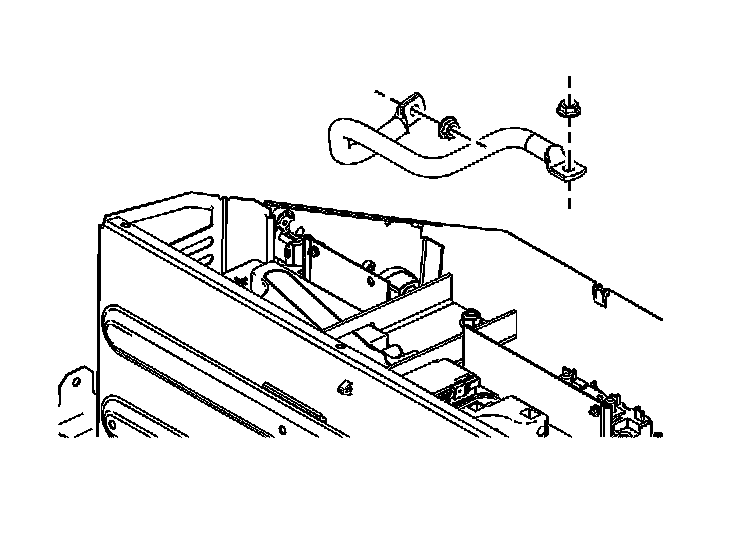

4. Install the service disconnect power cable and nut to the service disconnect switch.

Tighten
Tighten the nut to 10 N.m (89 lb in).

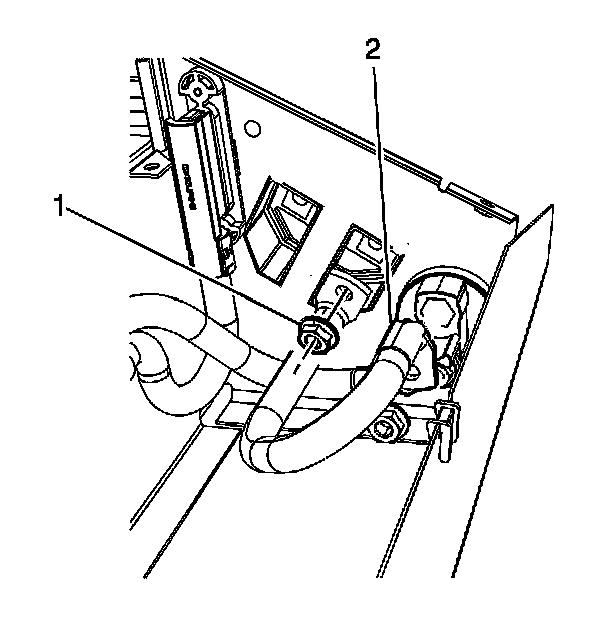

5. Install the service disconnect power cable (2) and nut (2) to the service disconnect switch.

Tighten
Tighten the screws to 10 N.m (89 lb in).

6. Install the ESB intermediate cover.
