Energy Storage Box (ESB) Sensor Carrier Replacement

ENERGY STORAGE BOX (ESB) SENSOR CARRIER REPLACEMENT (WITH RPO CODE HP2)

REMOVAL PROCEDURE




1. Remove the high current sensor.

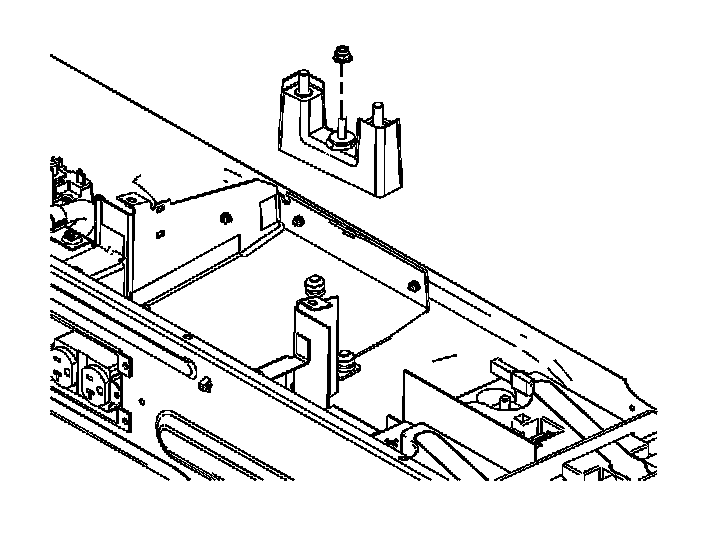

2. Remove the high current sensor carrier nut.
3. Remove the high current sensor carrier.

INSTALLATION PROCEDURE




1. Install the high current sensor carrier.

NOTE: Refer to Fastener Notice in Service Precautions.

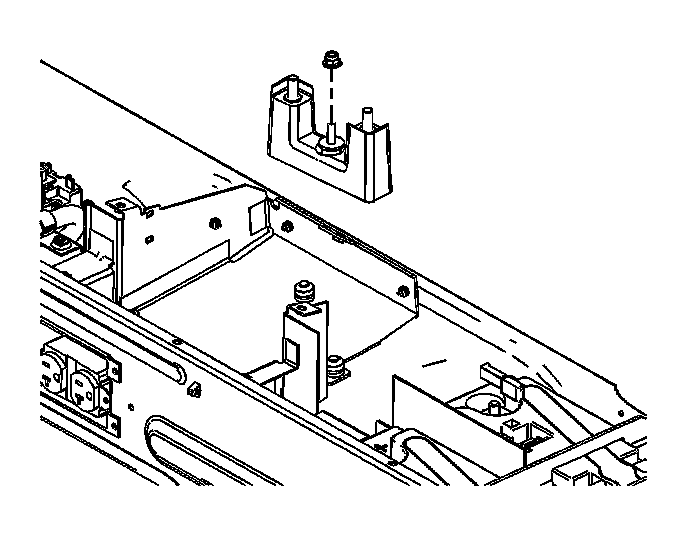

2. Install the high current sensor carrier nut.

Tighten
Tighten the nut to 10 N.m (89 lb in).

3. Install the high current sensor
