Air Bag
>>
Passenger Presence System (PPS) Sensor
Passenger Presence System (PPS) Sensor

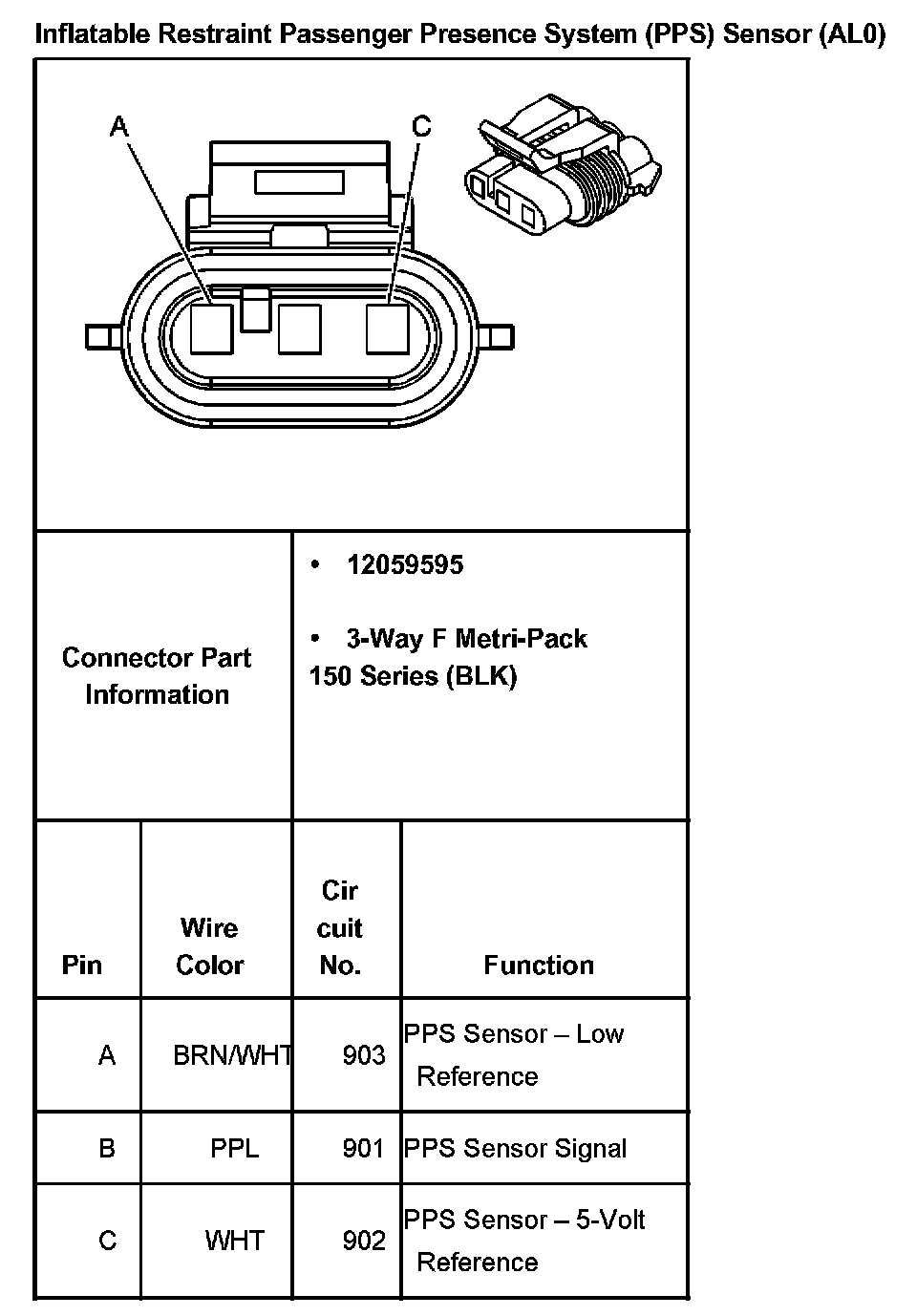

Inflatable Restraint Passenger Presence System (PPS) Sensor (With RPO Code AL0):
