Home >> Chevy Truck >> 2004 >> Silverado 1500 2WD V6-4.3L VIN X >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Tow/Haul and PNP Switch Inputs

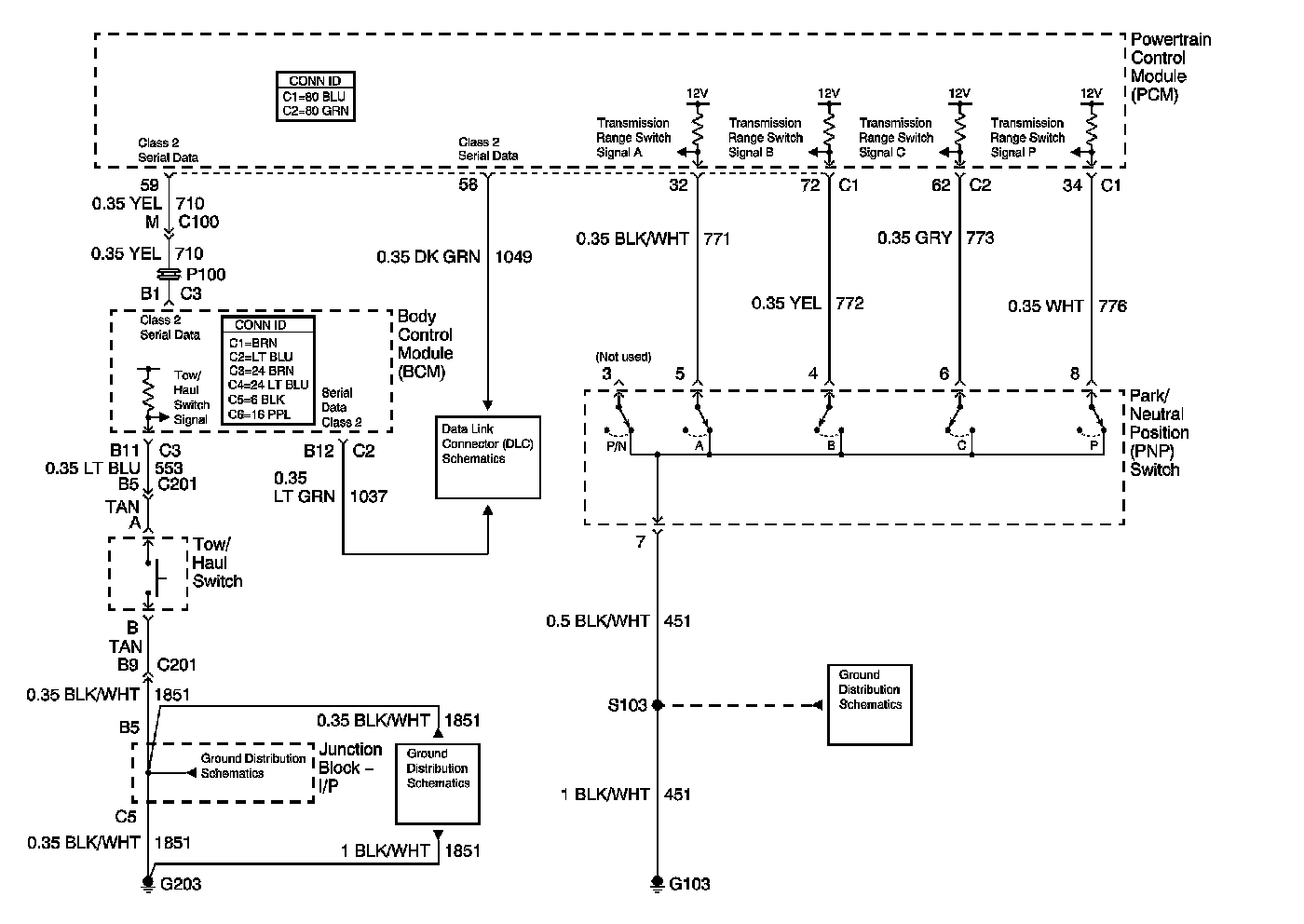

Tow/Haul and PNP Switch Inputs

Tow/Haul and PNP Switches:
