Chevy Truck
>>
2004
>>
SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Manual Shift and Parking System Assembly
Manual Shift and Parking System Assembly
Disassembled Views

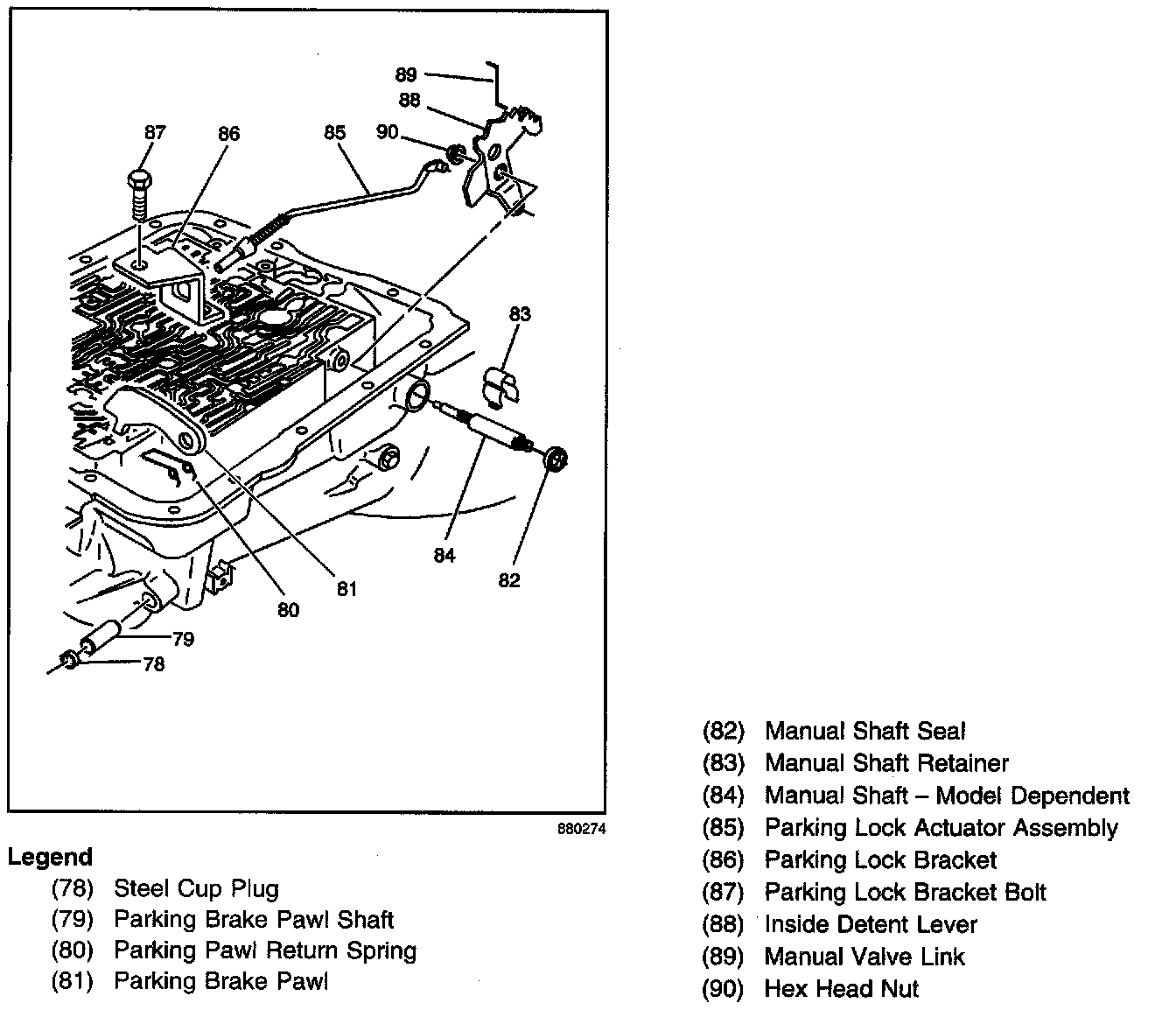

Parking Lock and Manual Shift Shaft Assembly
