Daytime Running Lamp Diode Assembly
Daytime Running Lamp Diode Assembly

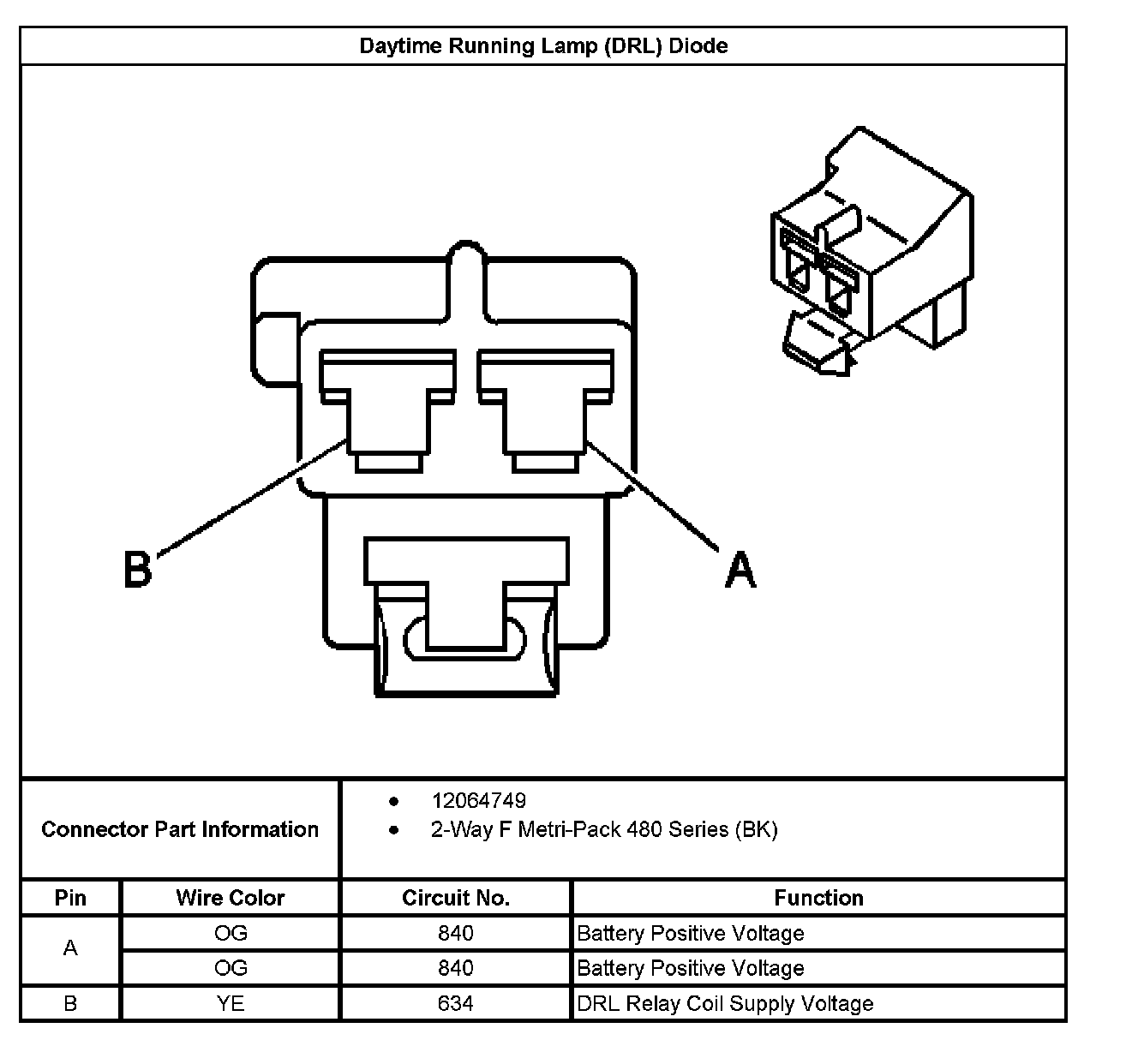

Daytime Running Lamp (DRL) Diode:
