Seat Belt: Service and Repair

SEAT BELT REPLACEMENT - CENTER REAR

REMOVAL PROCEDURE

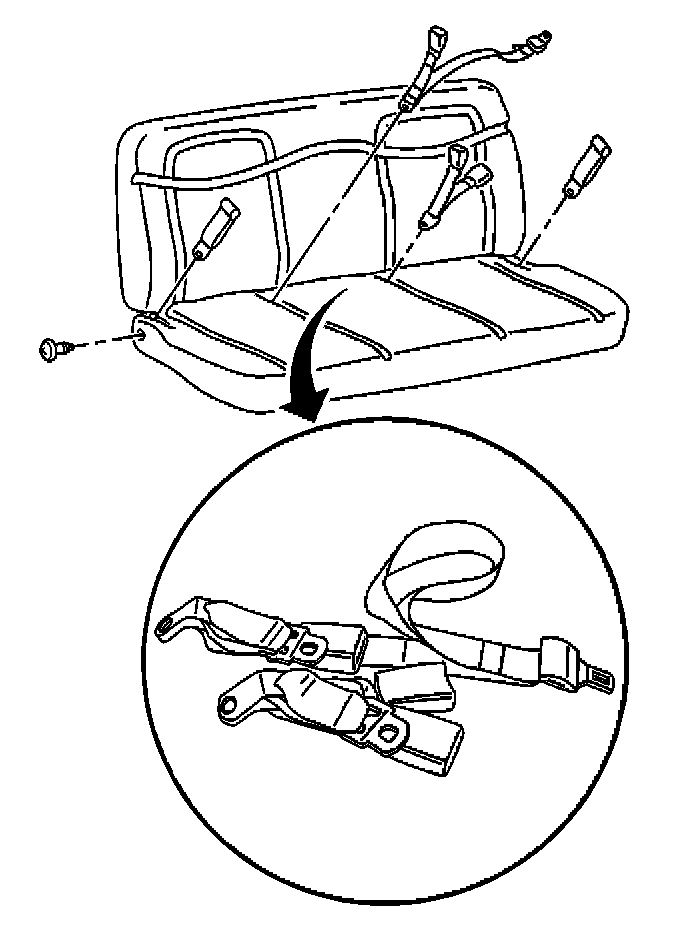

1. Partially remove the seat cushion cover in order to gain access to the seat belt/buckle retaining bolt.
2. Remove the seat belt/buckle retaining bolt from the seat frame.
3. Remove the seat belt/buckle from the seat frame.

INSTALLATION PROCEDURE




1. Install the seat belt/buckle to the seat frame.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the seat belt/buckle retaining bolt to the seat frame.

Tighten
Tighten the seat belt/buckle retaining bolt to 52 N.m (38 lb ft).

3. Install the seat cushion cover to the seat frame.
