S413
S413

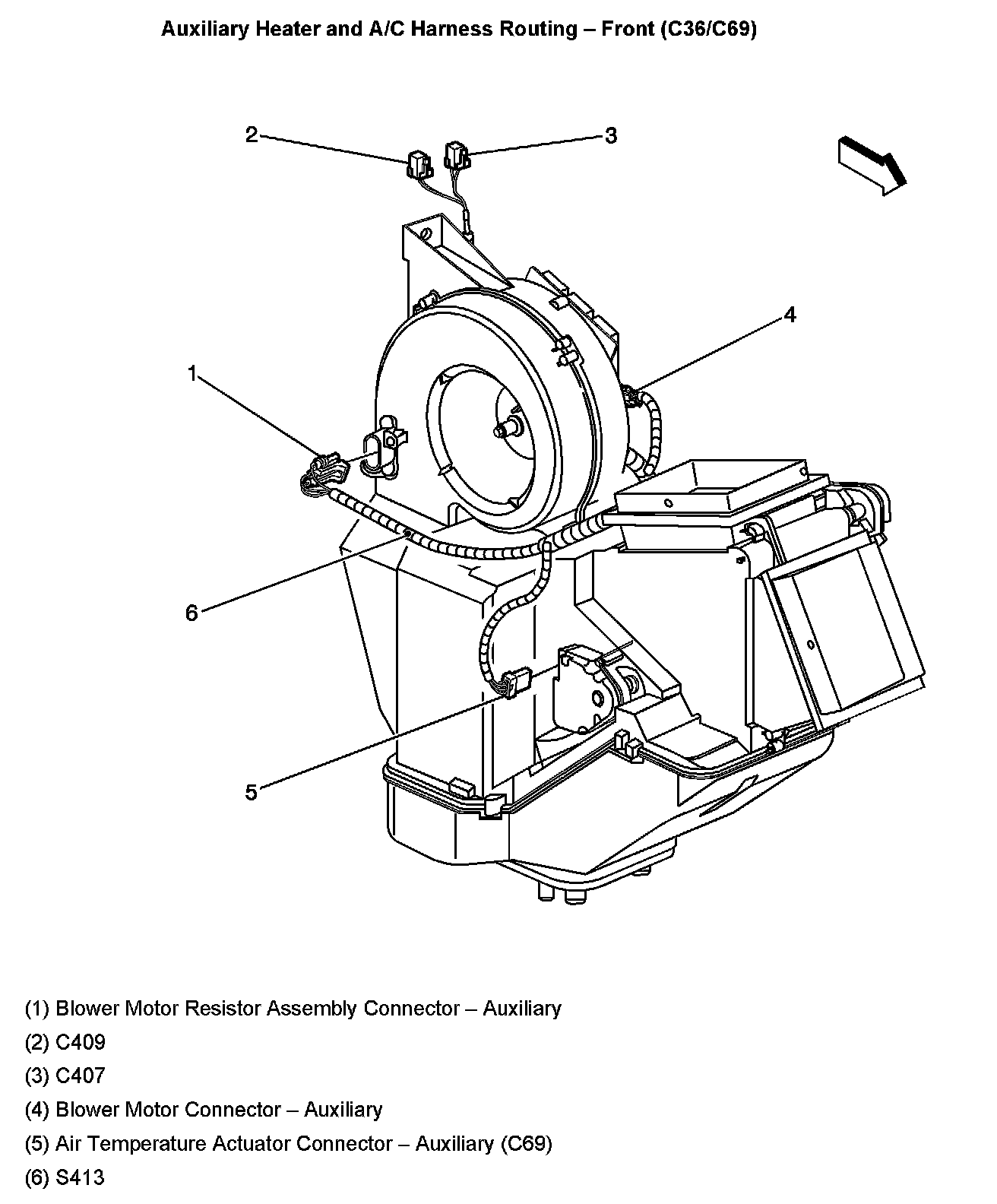

Auxiliary Heater And A/C Harness Routing - Front (With RPO Codes C36/C69):
Auxiliary Heater and A/C Harness Routing - Front (With RPO Code C36/C69):
