Vacuum Reservoir HVAC: Service and Repair

VACUUM TANK REPLACEMENT

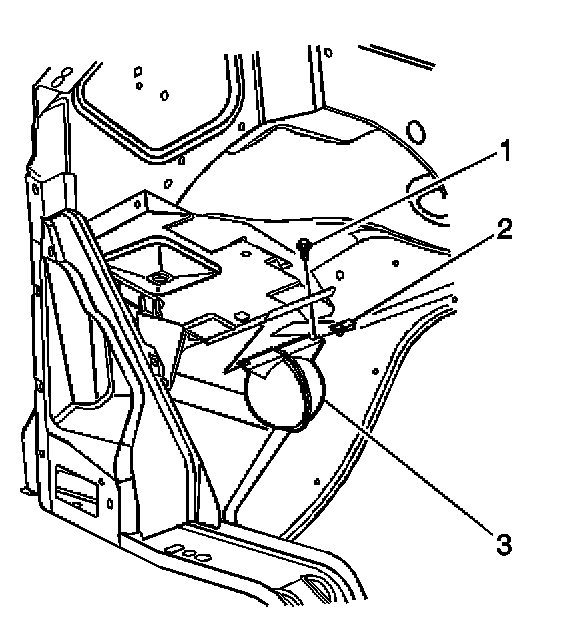

REMOVAL PROCEDURE




1. Disconnect the vacuum hose from the vacuum tank.
2. Remove the screws (1) from the vacuum tank retainers.
3. Remove the vacuum tank (3).

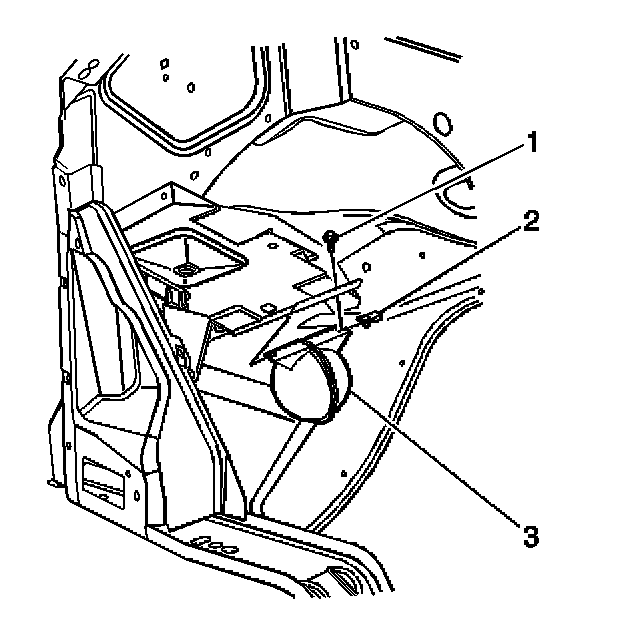

INSTALLATION PROCEDURE




1. Install the vacuum tank (3).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the screws (1) to the vacuum tank retainers.

Tighten
Tighten the screws to 6 N.m (53 lb in).

3. Connect the vacuum hose.
