Chevy Truck
>>
2004
>>
Express 1500 AWD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>
Rear Axle Disassembled Views
>>

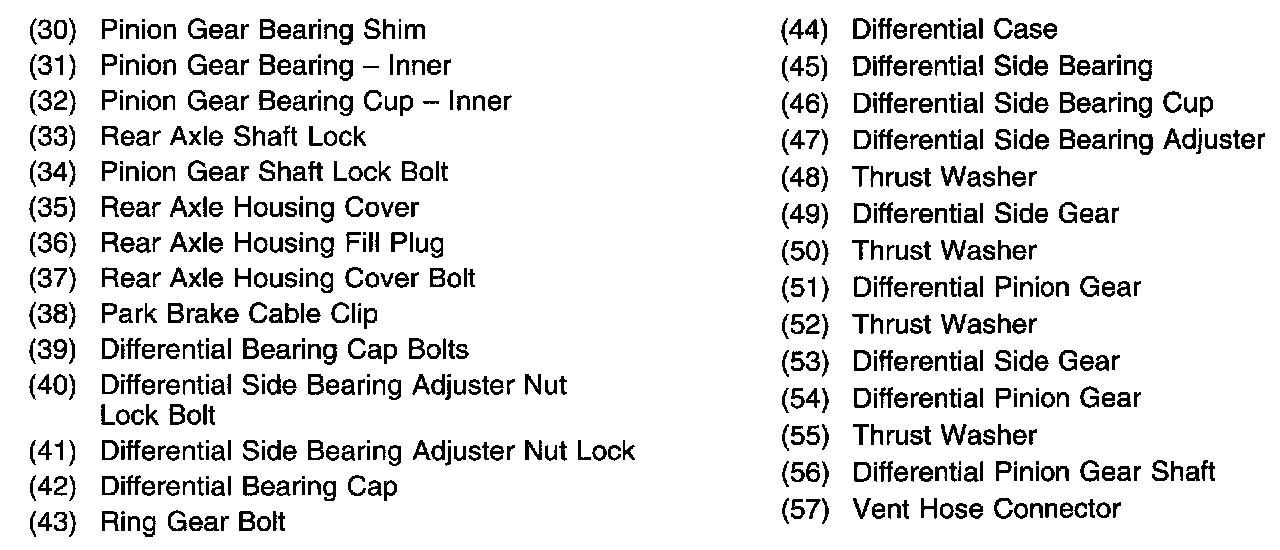

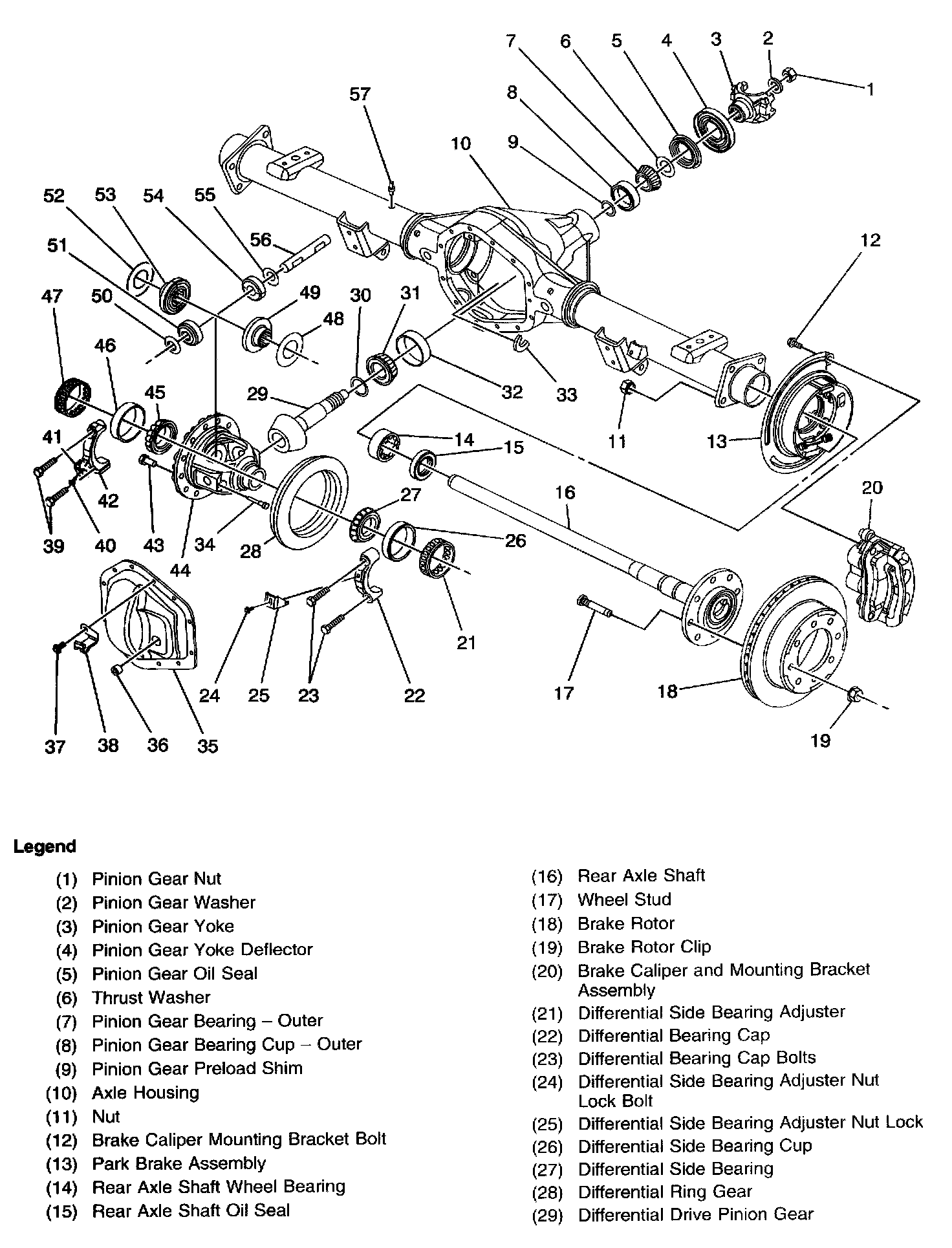

9.75 Inch Rear Axle
9.75 Inch Rear Axle
