Home >> Chevy Truck >> 2004 >> Express 1500 AWD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Control Systems >> 4L80-E/4L85-E Automatic Transmission >> Valve Controls and Switch Inputs

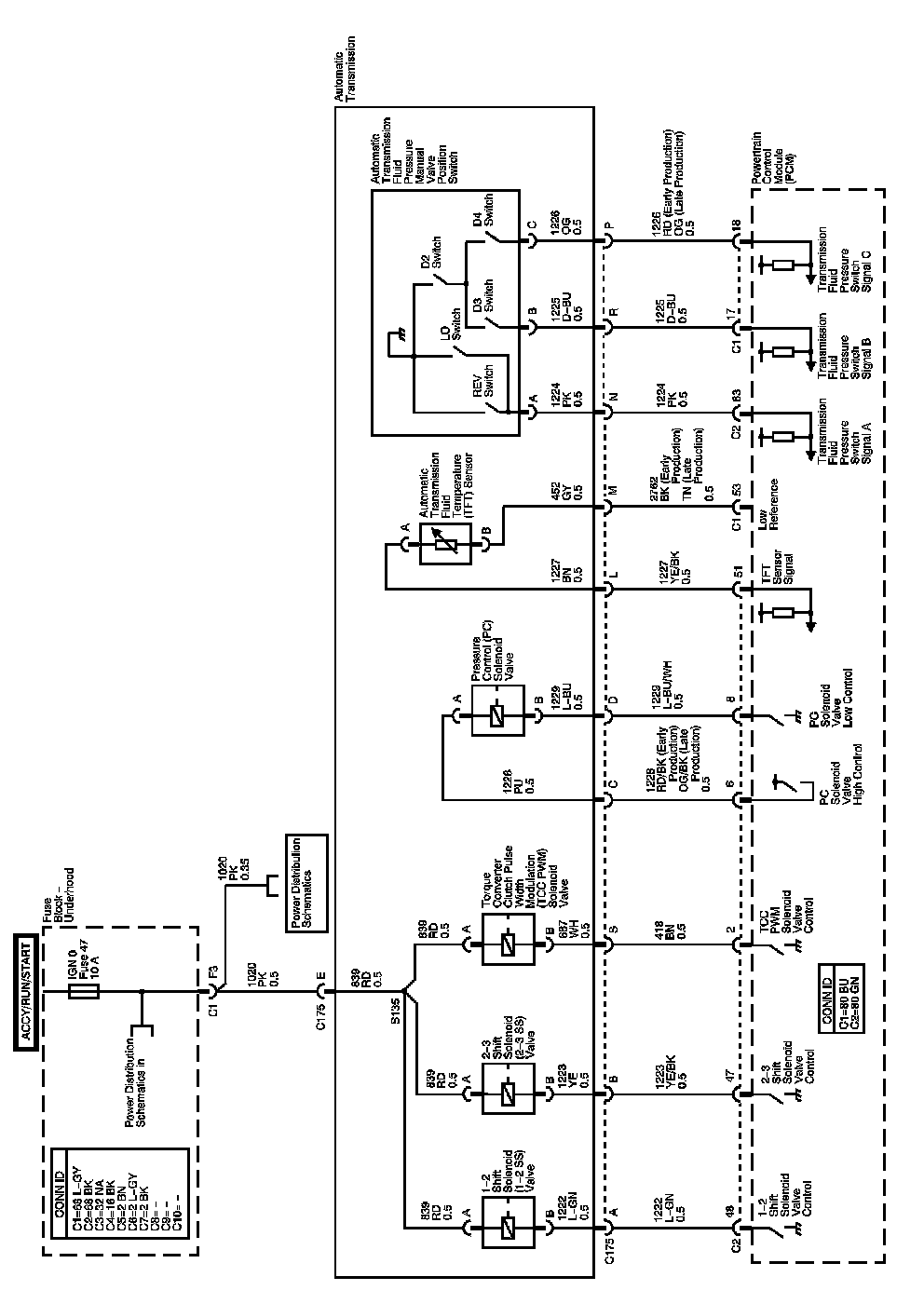

Valve Controls and Switch Inputs
