Home >> Chevy Truck >> 2004 >> Express 1500 AWD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo >> Rear Seat Audio (RSA) Control

Rear Seat Audio (RSA) Control

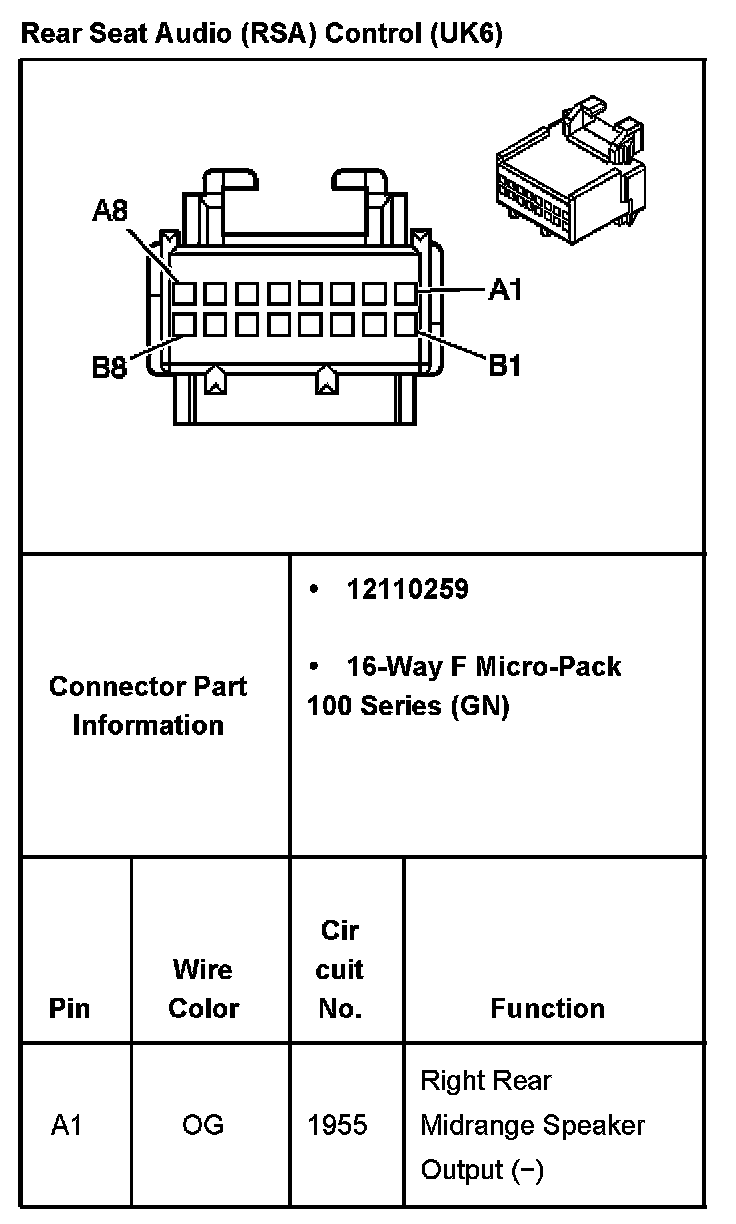

Rear Seat Audio (RSA) Control (With RPO Code UK6) Part 1:

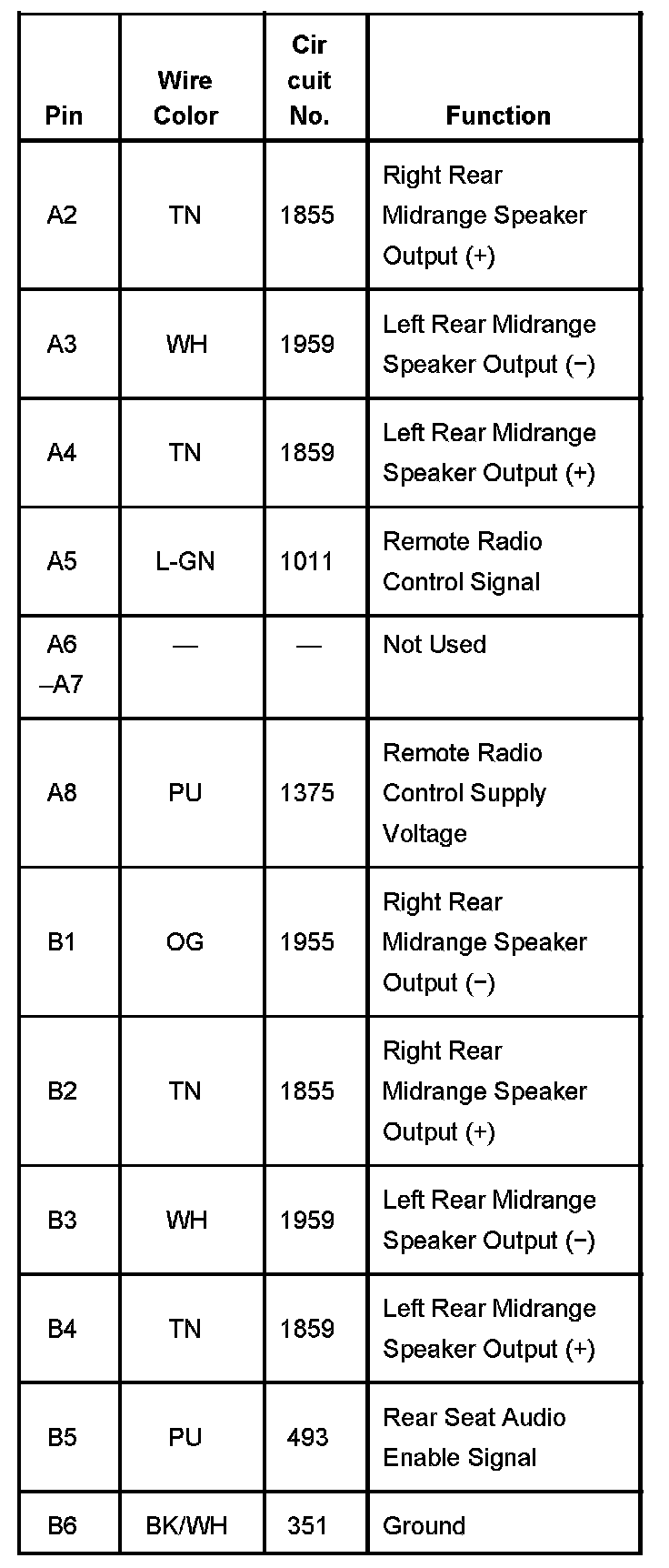

Rear Seat Audio (RSA) Control (With RPO Code UK6) Part 2:



Rear Seat Audio (RSA) Control (With RPO Code UK6) Part 3:
