Fuse Block - Body - C4 (With RPO Codes YF7/YF1 Late Production)
Fuse Block - Body - C4 (With RPO Codes YF7/YF1 Late Production)

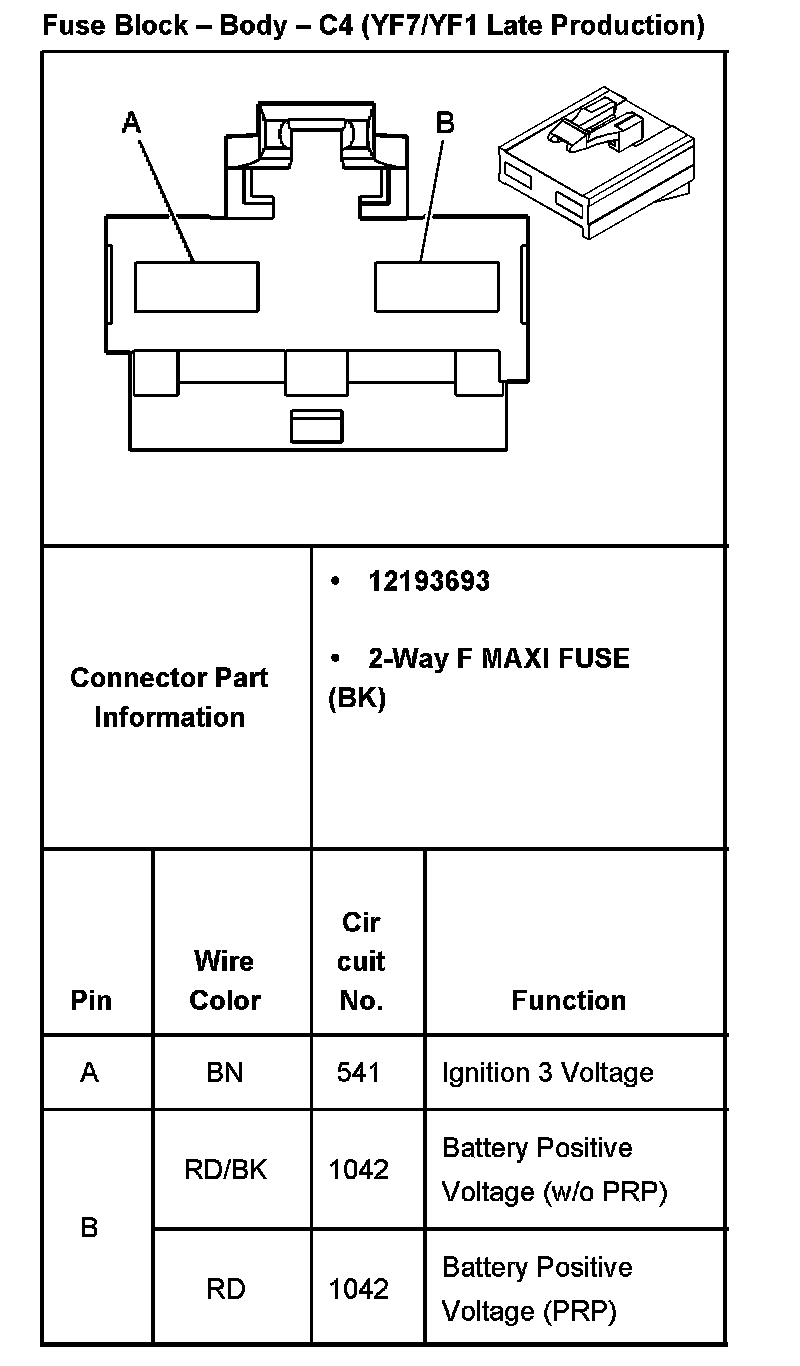

Fuse Block - Body - C4 (With RPO Codes YF7/YF1 Late Production):
