Transfer Case - NVG 233-NP1
>>

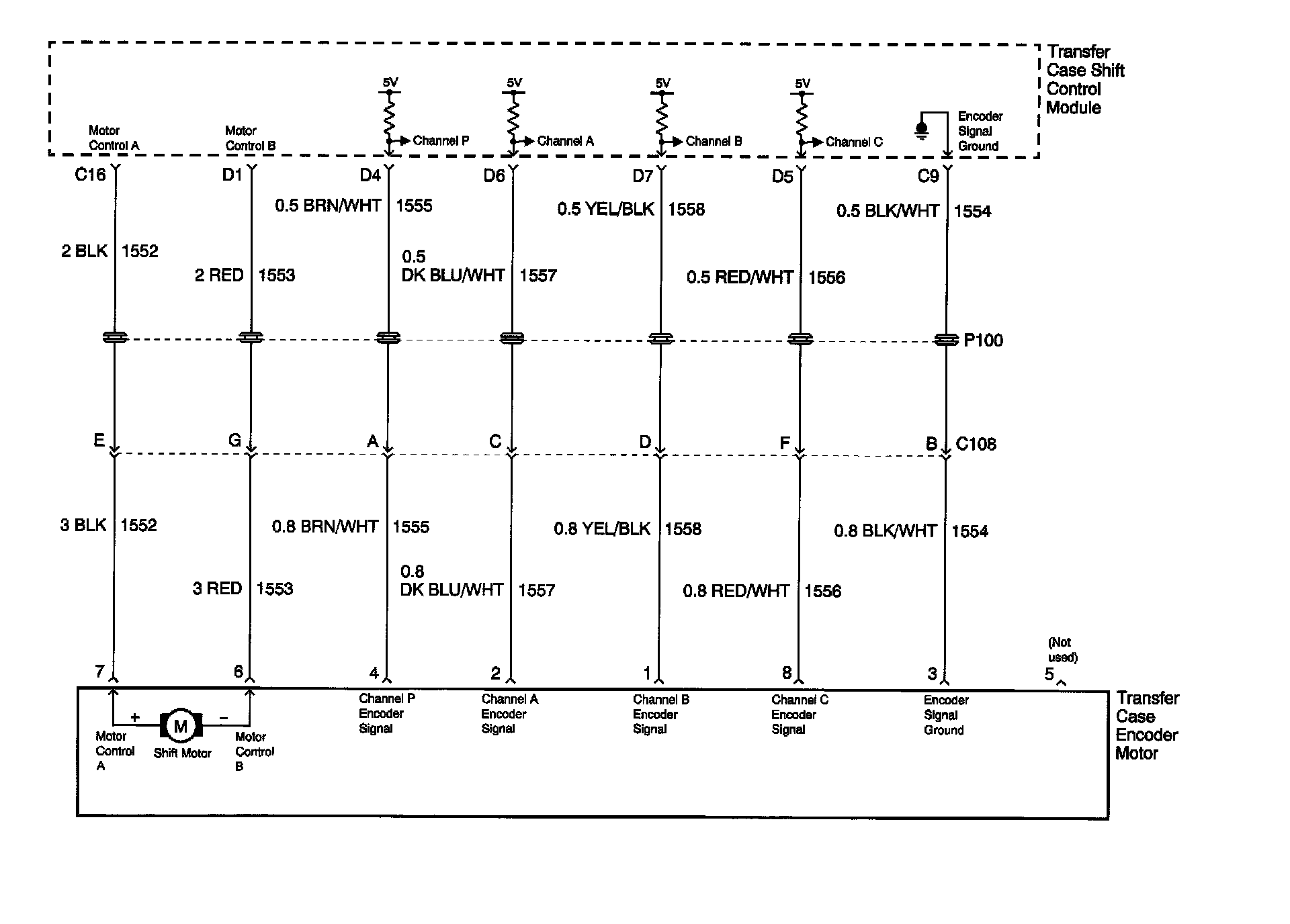

Transfer Case Control Schematics (Transfer Case Encoder Motor)
Transfer Case Control Schematics (Transfer Case Encoder Motor)
Transfer Case
Control Schematics (Transfer Case Encoder Motor)
