Differential Carrier Assembly Bushing Replacement

Differential Carrier Assembly Bushing Replacement

Tools Required
^ J33791 Bushing Remover/Installer

Removal Procedure
1. Remove the differential carrier assembly.

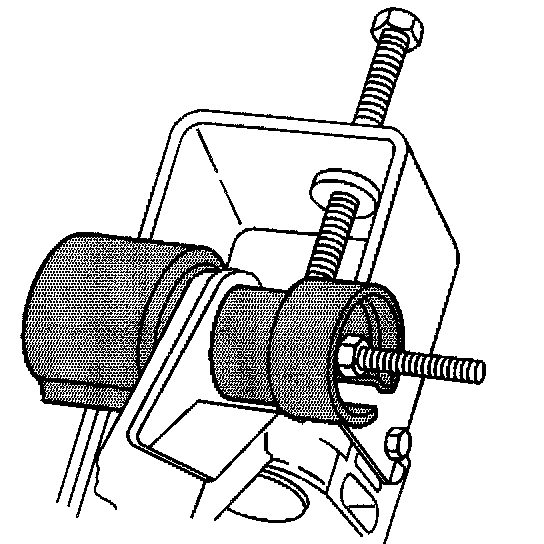

2. Remove the carrier bushing using the J33791.

Installation Procedure

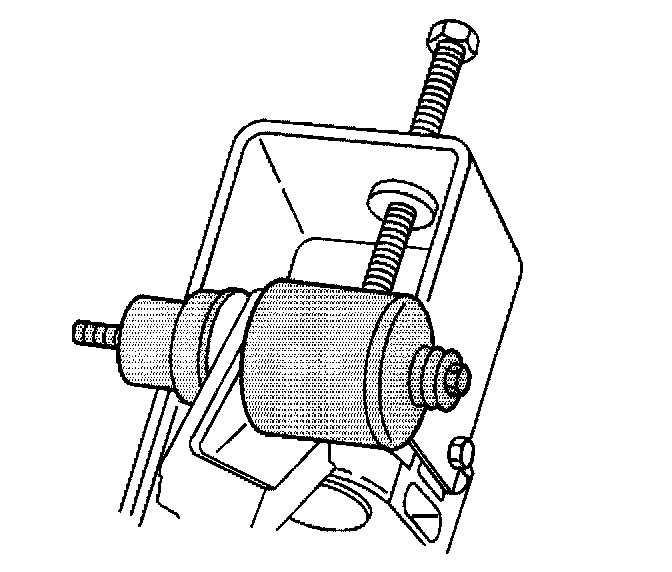

1. Install the carrier bushing using the J33791.
2. Install the differential carrier assembly.
