Steering Damper: Service and Repair

Steering Damper Replacement

^ Tools Required
- J 24319-B Steering Linkage and Tie Rod Puller

Removal Procedure





1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Remove the steering linkage shield.

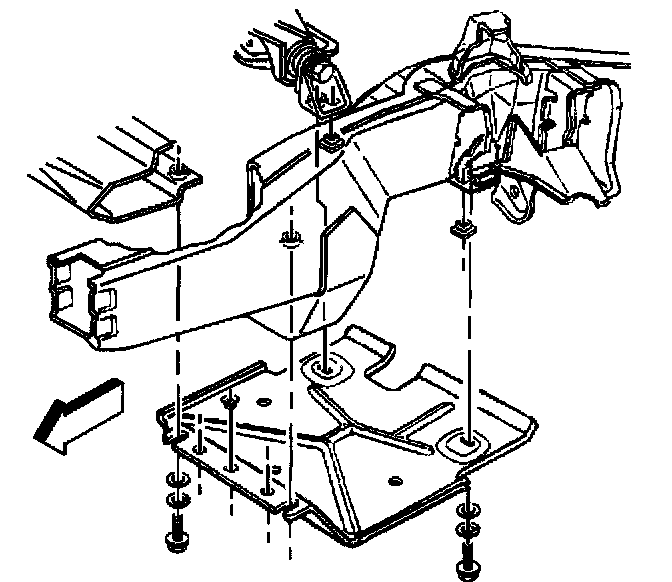

3. Remove the differential carrier shield mounting bolts.
4. Remove the differential carrier shield.

Important: Use the proper tool in order to separate all ball joints.

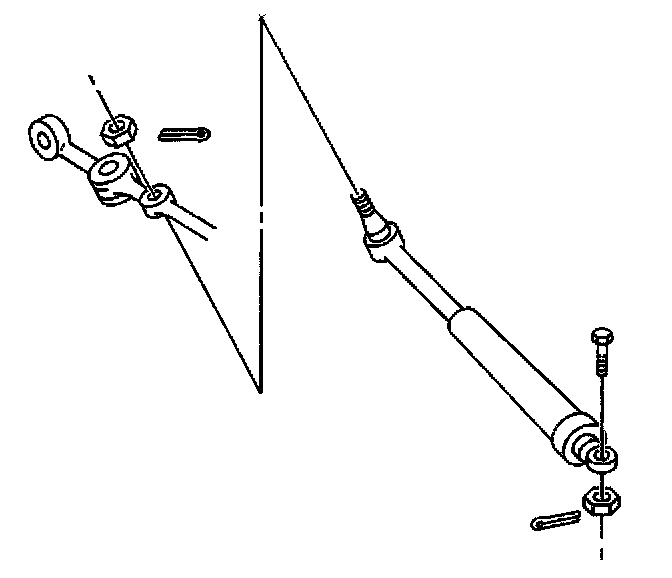

5. Remove the cotter pin from the steering shock absorber ball stud nut.
6. Remove the steering shock absorber ball stud nut.

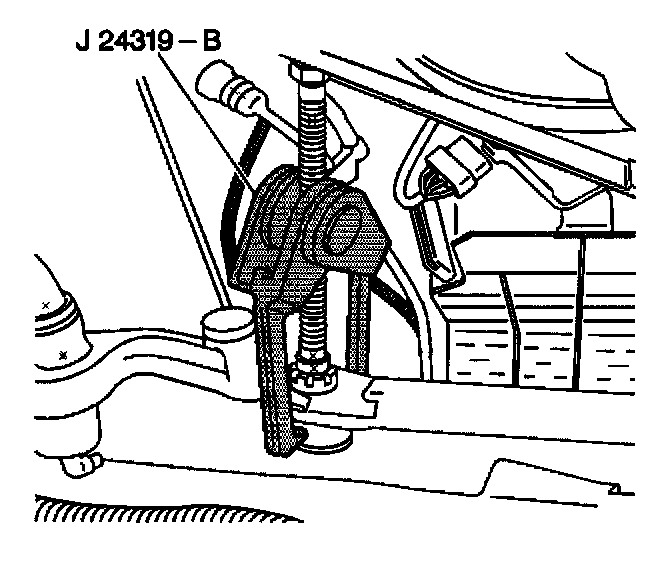

7. Remove the steering shock absorber from the relay rod using J24319-B.

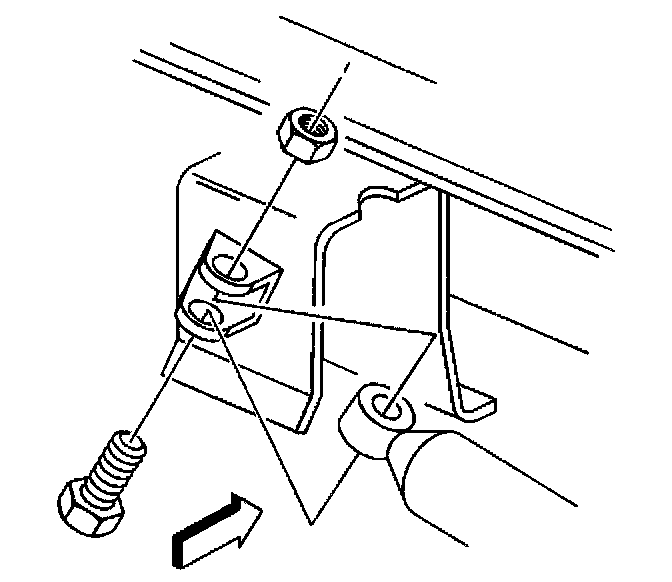

8. Remove the steering shock absorber mounting bolt at the front crossmember bracket nut.
9. Remove the steering shock absorber mounting bolt from the front crossmember bracket.
10. Remove the steering shock absorber.
11. Inspect the ball stud threads for damage.
12. Inspect the ball stud seals for excessive wear.
13. Clean the threads in the ball stud and the ball stud nut.

Installation Procedure

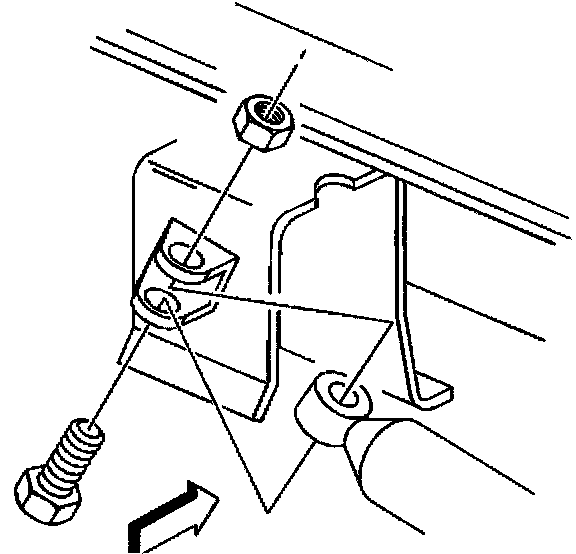

1. install the steering shock absorber mounting bolt to the front crossmember bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the steering shock absorber mounting bolt to the front crossmember bracket nut.
^ Tighten the steering shock absorber mounting bolt to the front crossmember bracket nut to 60 Nm (44 ft. lbs.).





3. Install the new cotter pin to the steering shock absorber mounting bolt to the frame bracket nut. Bend out the ends of the cotter pin.

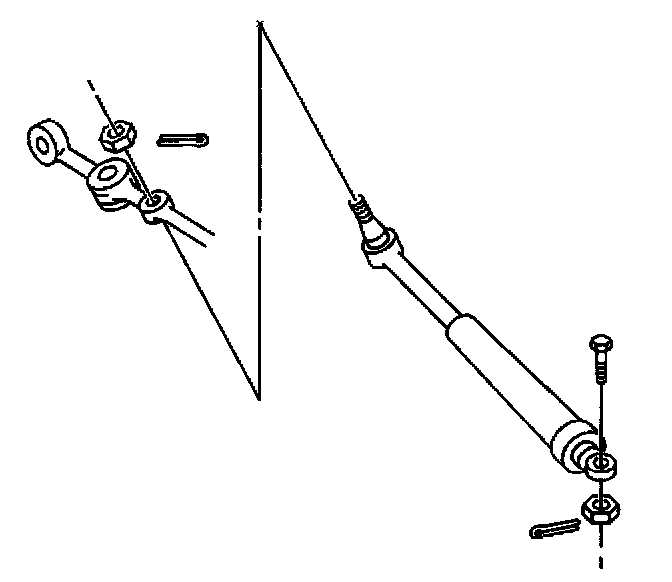

4. Install the steering shock absorber ball stud to the relay rod. Ensure that the seal is on the stud.
5. Install the steering shock absorber ball stud nut.
^ Tighten the steering shock absorber ball stud nut to 63 Nm (46 ft. lbs.).
6. Install the new cotter pin to the steering shock absorber ball stud nut. Bend out the ends of the cotter pin.

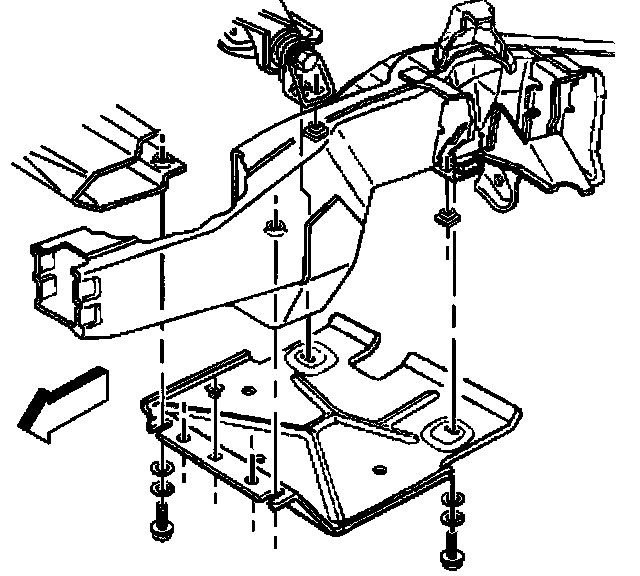

7. Install the differential carrier shield.
8. Install the differential carrier shield mounting bolts.
^ Tighten the differential carrier shield mounting bolts to 25 Nm (19 ft. lbs.).
9. Install the steering linkage shield.
10. Lower the vehicle.
