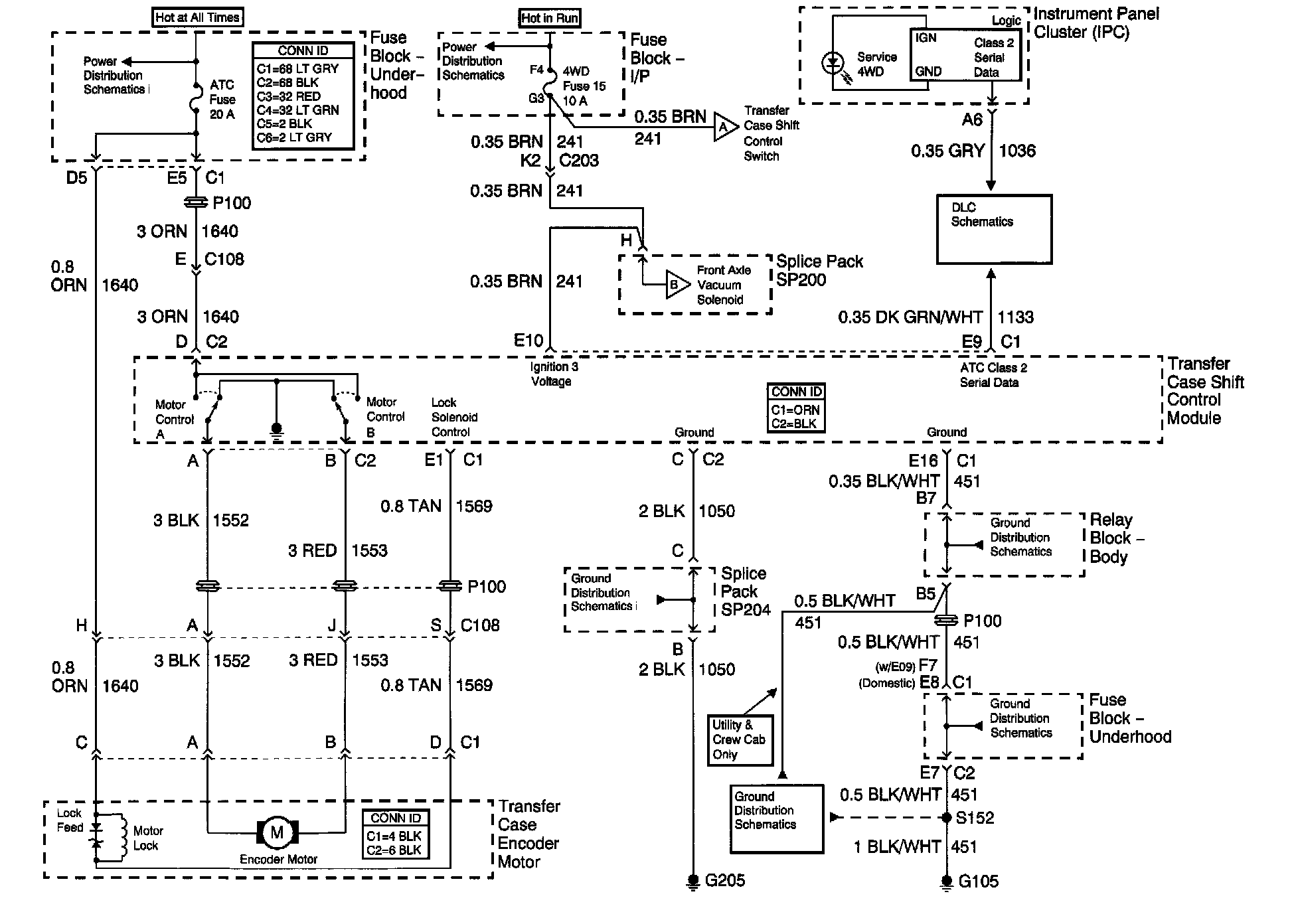

Transfer Case Control Schematics (Power, Ground and Transfer Case Encoder Motor)
Transfer Case Control Schematics (Power, Ground and Transfer Case Encoder Motor)
Transfer Case
Control Schematics (Power, Ground and Transfer Case Encoder Motor)
