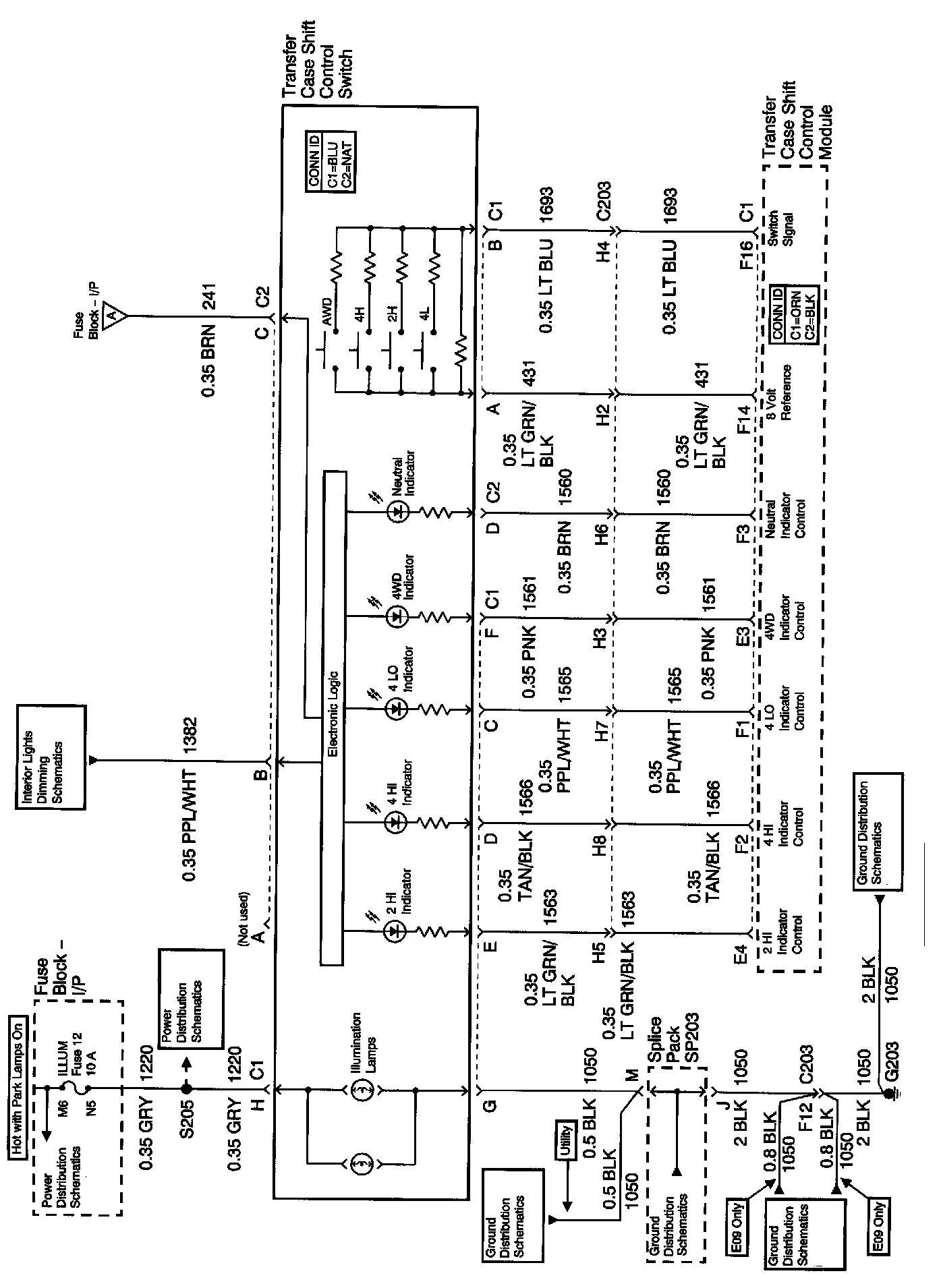

Transfer Case Control Schematic (Illum Fuse, Shift Control Switch and Body Control Module (BCM))

Transfer Case Control Schematic (ILLUM Fuse, Shift Control Switch and Body Control Module (BCM))
