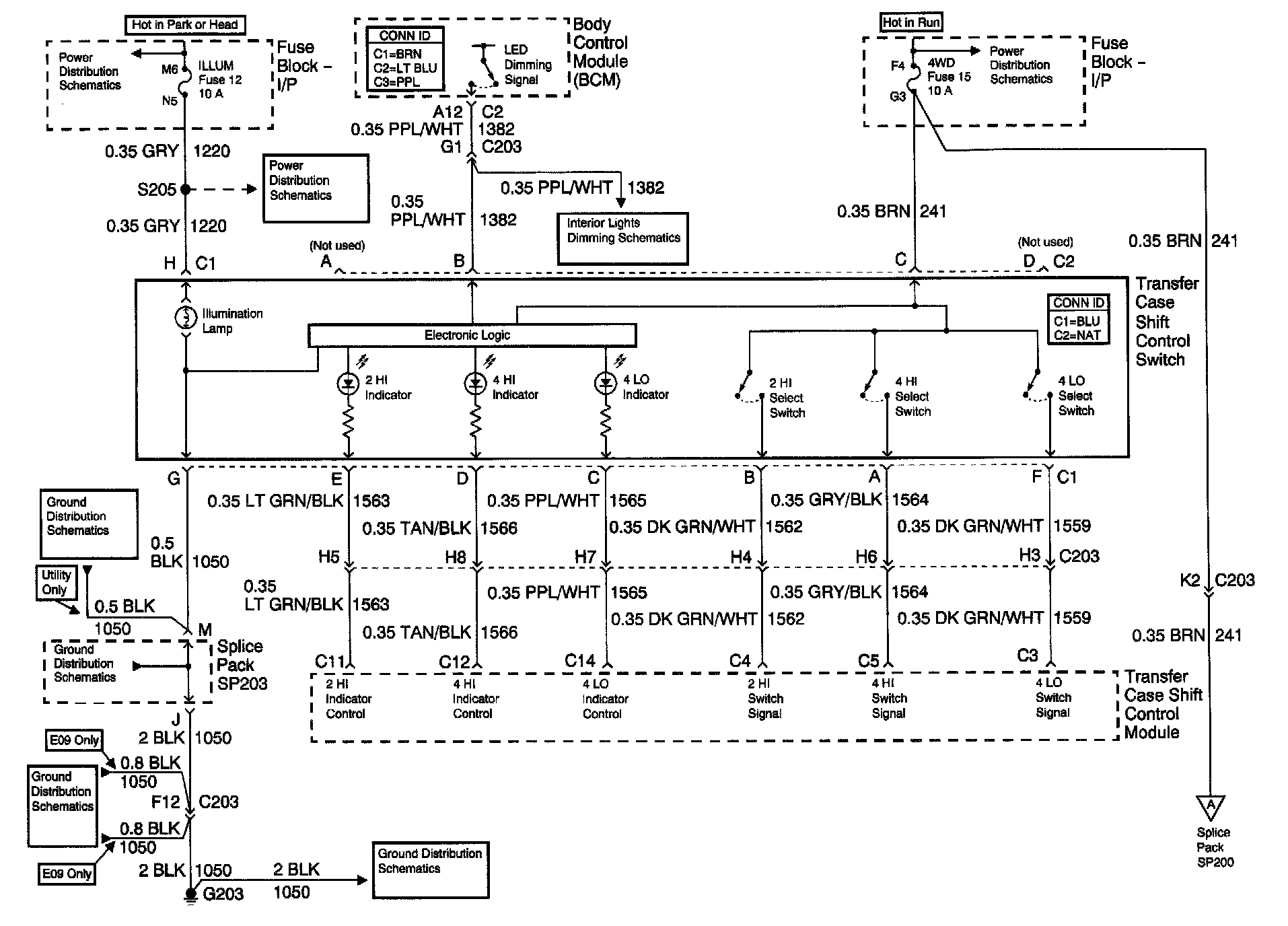

Transfer Case Control Schematics (Transfer Case Shift Control Switch)
Transfer Case Control Schematics (Transfer Case Shift Control Switch)
Transfer Case
Control Schematics (Transfer Case Shift Control Switch)
