Transmission Shift Position Indicator Lamp
Transmission Shift Position Indicator Lamp

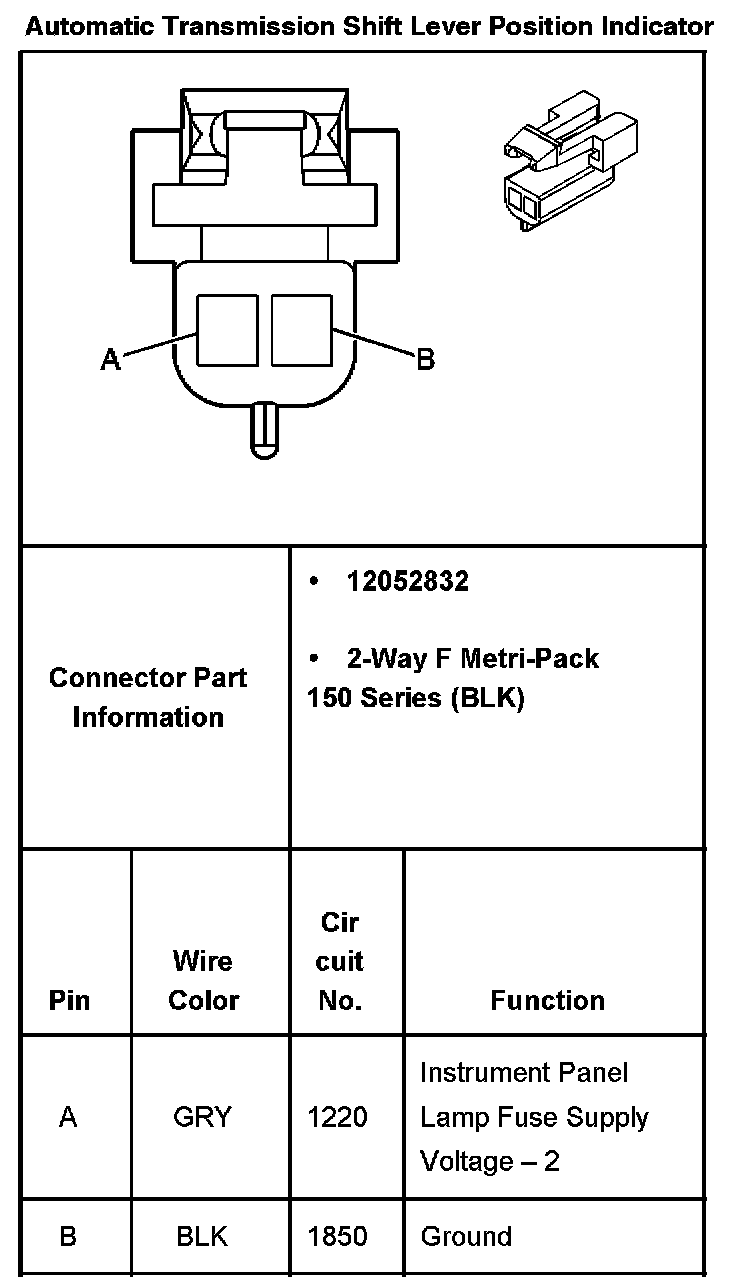

Automatic Transmission Shift Lever Position Indicator:
